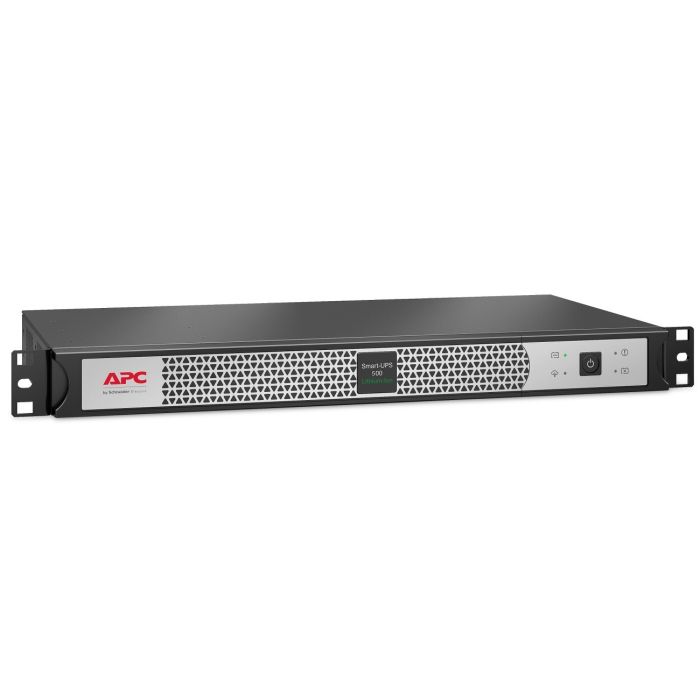

APC Smart-UPS SCL 500VA 400W 120V 1U Lithium-Ion Output:(4)5-15R, SCL500RM1UC – Refurbished

APC Smart-UPS Line Interactive 500VA 400W Lithium-Ion RM 1U 120V
Model: SCL500RM1UC
Input: NEMA 5-15P (120V - 15A)
Output: (4) NEMA 5-15R
Line-Interactive UPS - Pure Sine Wave Output
Lithium-Ion Battery Technology - Refurbished UPS
SmartConnect Cloud Monitoring Port
Short-Depth Rackmount Design
Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: APC
Model: APC Smart-UPS Lithium-Ion 500VA 400W Rackmount 1U, 120V
Condition: Lithium-Ion Battery Pack, Refurbished UPS
Part Number: SCL500RM1UC
Maximum output: 400W / 500VA
Typical backup time at half load: 9 minutes (200 Watts)
Typical backup time at full load: 3 minutes (400 Watts)
Warranty: 1-year full replacement warranty

Description: The APC Smart-UPS SCL500RM1UC is a compact 500VA / 400W line-interactive UPS designed for network closets, edge computing, telecommunications equipment, security systems, and other critical low-power applications. Featuring advanced lithium-ion battery technology with an expected battery life of 8 to 10 years, the SCL500RM1UC delivers pure sine wave output, Automatic Voltage Regulation (AVR), and cloud-enabled remote monitoring through APC SmartConnect. Its short-depth 1U rackmount design makes it ideal for shallow network racks and wall-mount enclosures. Equipped with (4) NEMA 5-15R outlets, USB and serial connectivity, and 680 Joules of surge protection, the SCL500RM1UC provides reliable power protection while minimizing maintenance requirements. Refurbished and backed by a 1 Year Full Replacement Warranty.





APC Smart-UPS Lithium-Ion 500VA 400W SCL500RM1UC - User's Manual





SCL500RM1UC – APC Smart-UPS Lithium-Ion 500VA Specifications.-



Key Features
UPS Topology Line Interactive
Form Factor Rackmount
Rack Height 1U
Capacity 500VA / 400W
Input Voltage 120V AC
Output Voltage 120V AC
Waveform Type Pure Sine Wave
Battery Technology Lithium-Ion
Battery Design Life 8–10 Years
Input Connection NEMA 5-15P
Output Receptacles (4) NEMA 5-15R
SmartConnect Cloud Monitoring Yes
Short Depth Design Yes
Product Family APC Smart-UPS Lithium-Ion
Application Network Closets, Telecom, Security Systems, Edge Computing, IoT Devices

Input
Input Voltage 120V AC
Input Frequency 50/60 Hz ± 3 Hz Auto-Sensing
Input Connection Type NEMA 5-15P
Input Protection Circuit Breaker
Input Voltage Range 92V – 139V
Input Phase Single-Phase
Cable Length 6 ft (1.8 m)
Number of Power Cords 1

Output
Rated Output Capacity 500VA
Rated Output Power 400W
Output Voltage 120V AC
Output Frequency 50/60 Hz ± 3 Hz Sync to Mains
Output Receptacles (4) NEMA 5-15R
Maximum Configurable Power 500VA
Maximum Configurable Power 400W
Harmonic Distortion Less Than 5%
Transfer Time 6 ms Typical
Maximum Transfer Time 10 ms
Waveform Type Pure Sine Wave
Output Voltage Regulation Maintains Regulated Output During Battery Operation
Battery Backup Outlets 4
Surge Protected Outlets 4
Power Conditioning Full-Time Power Conditioning
Frequency Regulation Automatic Synchronization to Utility Power
Load Compatibility Active PFC Power Supplies Supported

Battery & Runtime
Battery Type Lithium-Ion
Internal Battery Included Yes
Battery Design Life 8–10 Years
Typical Runtime @ Half Load 9 Minutes (200W)
Typical Runtime @ Full Load 3 Minutes (400W)
Extendable Runtime No
Battery Charging Power 10W
Maintenance Requirement Minimal
Rechargeable Battery Yes
Hot-Swappable Battery No
Battery Replacement Frequency Significantly Lower Than Lead-Acid UPS Models

Communications & Management
SmartConnect Port Yes
Cloud Monitoring Yes
APC SmartConnect Support Yes
Ethernet Connectivity SmartConnect Ethernet Port
USB Port Yes
Serial Port Yes
Remote Monitoring Supported
Remote Notifications Supported
Cloud-Based UPS Management Supported
UPS Status Monitoring Supported
Power Event Monitoring Supported
Battery Health Monitoring Supported
Firmware Updates Supported via APC Platforms
Software Included APC SmartConnect Software
Communication Port Support SmartConnect Ethernet Port
Local User Interface Front Panel LED Display
Control Panel LED Status Display
LED Indicators On Line
  On Battery
  Replace Battery
  Building Wiring Fault
Alarm Notifications On Battery
  Low Battery
  Replace Battery
  Configurable Alarm Delays
Event Notifications Supported Through SmartConnect
Network Monitoring Cloud-Based Monitoring Platform
Free Expansion Slots 0

Surge Protection & Filtering
Surge Energy Rating 680 Joules
Noise Filtering Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through 0.3%
Response Time Zero Clamping Response Time
UL Compliance Meets UL 1449
EMI / RFI Noise Filtering Yes
Surge Suppression Integrated

Physical
Color Black with Silver Front Bezel
Height 1.7 in (44 mm)
Width 17.0 in (432 mm)
Depth 9.1 in (232 mm)
Weight 9.22 lbs (4.18 kg)
Mounting Mode Rack-Mounted
Rack Height 1U
Mounting Preference No Preference
USB Compatible Yes
Short Depth Chassis Yes
Included Accessories Rack Mounting Support Rails
  Installation Guide
  Documentation CD
  USB Cable
  Software CD

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Operating Humidity 0–95% Non-Condensing
Storage Humidity 0–95% Non-Condensing
Operating Altitude Up to 10,000 ft
Storage Altitude Up to 25,000 ft
Acoustic Noise 45 dBA
Heat Dissipation 41.61 BTU/hr
IP Rating IP20

Compliance
Certifications cULus
  NOM
Equipment Protection Policy Lifetime $150,000
Product Family Smart-UPS Lithium-Ion
Condition Refurbished UPS
Warranty 1 Year Full Replacement Warranty Included
