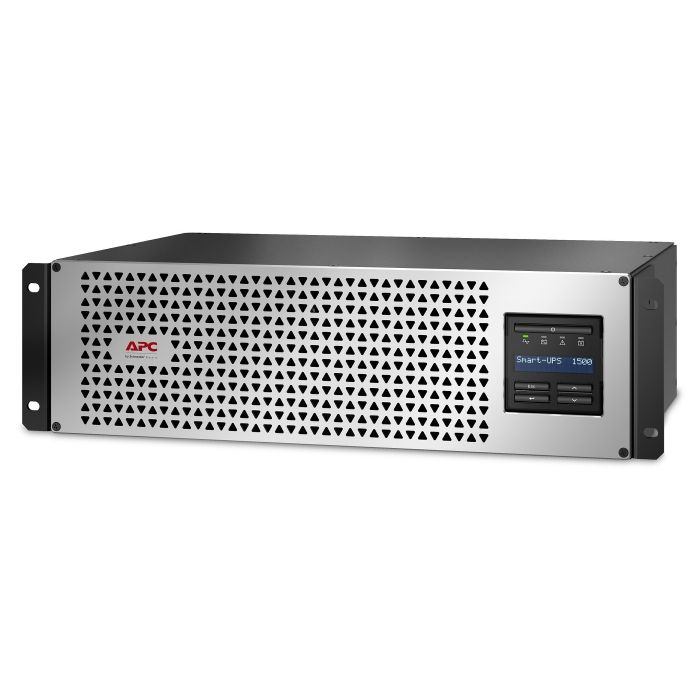

APC SmartConnect-UPS 1500VA 1350W 15A Li-Ion RM 3U Output:(6)5-15R, SMTL1500RM3UCNC-Refurb
APC Smart-UPS Lithium-Ion Battery System 1500VA 1350W RM 3U
Model: SMTL1500RM3UCNC
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
SmartConnect Cloud Monitoring
AP9641 Network Management Card 3 Pre-Installed
Remote Network & Environmental Monitoring
LCD Status & Control Display
Refurbished UPS
1 Year Warranty IncludedÂ
$1,799.99
In stock
Manufacturer: APC
Model: APC Smart-UPS 1500VA Class, 1350W / 1440VA, RM 3U, 120V, Li-Ion, SmartConnect + Network Management Card
Condition: Refurbished UPS, Tested Original Lithium-Ion Batteries
Part Number: SMTL1500RM3UCNC
Maximum Output: 1350W / 1440VA
Input: NEMA 5-15P, 120V, 15A, Single Phase
Output: (6) NEMA 5-15R, 120V
Topology: Line Interactive
Waveform: Sine Wave
Typical Backup Time at Half Load: Approx. 11.2 Minutes (675 Watts)
Typical Backup Time at Full Load: 5.15 Minutes (1350 Watts)
Typical Recharge Time: 3 Hours
SmartConnect: Built-in SmartConnect Ethernet Port for Cloud Monitoring
Network Management Card: APC AP9641 Network Management Card 3 Pre-Installed
Environmental Monitoring: Supported via Pre-Installed Network Management Card
Local Management: Multi-Function LCD Status and Control Console
Emergency Power Off (EPO): Yes
Surge Protection: 680 Joules
Warranty: 1 Year Full Replacement Warranty
Description: The APC SMTL1500RM3UCNC is a 1440VA / 1350W Line-Interactive Smart-UPS featuring Lithium-Ion battery technology, sine wave output, AVR, and a compact 3U rackmount design. It includes SmartConnect cloud monitoring and an APC AP9641 Network Management Card 3 pre-installed for advanced remote UPS and environmental monitoring. The unit provides (6) NEMA 5-15R outlets and an LCD status and control display. Refurbished UPS with tested original Lithium-Ion batteries and a 1 Year Full Replacement Warranty
Â
Â
Â
APC Smart-UPS Â SMTL1500RM3UCNC 1500VA Class, 1350W / 1440VA - User ManualÂ
Â
Â
Â
SMTL1500RM3UCNC - APC Smart-UPS Lithium-Ion Specifications
| General | Â | ||
| Manufacturer | APC | ||
| Product Series | APC Smart-UPS | ||
| Model / Part Number | SMTL1500RM3UCNC | ||
| Product Type | Uninterruptible Power Supply (UPS) | ||
| Rated Power | 1440VA / 1350W | ||
| Topology | Line Interactive | ||
| Output Waveform | Sine Wave | ||
| Form Factor | Rackmount | ||
| Rack Height | 3U | ||
| Input Phase | Single Phase | ||
| Battery Technology | Lithium-Ion (Li-Ion) | ||
| Network Management | APC Network Management Card 3 Pre-Installed | ||
| Network Management Card | AP9641 | ||
| SmartConnect | Yes | ||
| Condition | Refurbished UPS | ||
| Warranty | 1 Year Full Replacement Warranty | ||
| Â | Â | ||
| Input | Â | ||
| Main Input Voltage | 120V | ||
| Other Input Voltages | 110V / 125V | ||
|
Input Connection Type |
|
||
| Input Current / Electrical Service | 15A | ||
| Input Phase | Single Phase | ||
| Input Frequency | 50/60 Hz ±3 Hz Auto-Sensing | ||
| Input Voltage Range | 82–144V | ||
| Adjustable Input Voltage Range | 75–154V | ||
| Input Protection | Circuit Breaker | ||
| Power Cord Length | 8 ft (2.44 m) | ||
| Number of Power Cords | 1 | ||
| Â | Â | ||
| Output | Â | ||
| Maximum Output Power | 1350W | ||
| Maximum Output Capacity | 1440VA | ||
| Main Output Voltage | 120V | ||
| Other Output Voltages | 110V / 125V | ||
|
Output Connection Type |
|
||
| Output Protection | Battery Backup | ||
| Output Frequency | 50/60 Hz ±3 Hz, Synchronized to Mains | ||
| Output Waveform | Sine Wave | ||
| Harmonic Distortion | Less than 5% | ||
| Crest Factor | 3:1 | ||
| Transfer Time | 6 ms Typical / 10 ms Maximum | ||
| Topology | Line Interactive | ||
| Automatic Voltage Regulation (AVR) | Yes | ||
| Â | Â | ||
| Batteries & Runtime | Â | ||
| Battery Type | Lithium-Ion (Li-Ion) | ||
| Battery System | Internal Lithium-Ion Battery | ||
| Battery Design Life | 8–10 Years | ||
| Typical Backup Time at Half Load | Approx. 11 Minutes (675W) | ||
| Typical Backup Time at Full Load | Approx. 5 Minutes (1350W) | ||
| Runtime at 135W | 54 Minutes | ||
| Runtime at 200W | 37 Minutes | ||
| Runtime at 300W | 25 Minutes 25 Seconds | ||
| Runtime at 400W | 19 Minutes 7 Seconds | ||
| Runtime at 500W | 15 Minutes 16 Seconds | ||
| Runtime at 600W | 12 Minutes 39 Seconds | ||
| Runtime at 700W | 10 Minutes 45 Seconds | ||
| Runtime at 800W | 9 Minutes 19 Seconds | ||
| Runtime at 900W | 8 Minutes 12 Seconds | ||
| Runtime at 1000W | 7 Minutes 18 Seconds | ||
| Runtime at 1100W | 6 Minutes 33 Seconds | ||
| Runtime at 1200W | 5 Minutes 55 Seconds | ||
| Runtime at 1300W | 5 Minutes 23 Seconds | ||
| Runtime at 1350W | 5 Minutes 9 Seconds | ||
| Typical Recharge Time | 3 Hours | ||
| Battery Power | 164 VAh | ||
| Battery Charge Power | 154W Rated | ||
| Extendable Runtime | No | ||
| External Battery Pack Support | No | ||
| Battery Condition | Tested Original Lithium-Ion Batteries | ||
| Â | Â | ||
| User Interface, Alerts & Controls | Â | ||
| Control Panel | Multi-Function LCD Status and Control Console | ||
| LCD Display | Yes | ||
| UPS Status Monitoring | Yes | ||
| Input Voltage Monitoring | Yes | ||
| Output Voltage Monitoring | Yes | ||
| Load Monitoring | Yes | ||
| Battery Status Monitoring | Yes | ||
| Audible Alarms | Yes | ||
| Visual Alarms | Yes | ||
| On-Battery Alarm | Yes | ||
| Low-Battery Alarm | Yes | ||
| Overload Indication | Yes | ||
| UPS Fault Indication | Yes | ||
| Local UPS Configuration | Supported Through LCD Interface | ||
| Â | Â | ||
| Communications & Management | Â | ||
| SmartConnect | Yes – Built-In SmartConnect Ethernet Port | ||
| SmartConnect Function | Cloud-Enabled UPS Monitoring | ||
| SmartSlot | Yes | ||
| Network Management Card | APC AP9641 Network Management Card 3 | ||
| Network Card Installation | Pre-Installed | ||
| Remote UPS Monitoring | Yes | ||
| Remote UPS Management | Yes | ||
| Network Interface | Ethernet | ||
| Web-Based Management | Supported | ||
| SNMP Management | Supported | ||
| Remote Event Monitoring | Supported | ||
| Network Event Notifications | Supported | ||
| UPS Status Monitoring | Supported | ||
| Battery Status Monitoring | Supported | ||
| Load Monitoring | Supported | ||
| Power Event Monitoring | Supported | ||
| Environmental Monitoring | Supported by AP9641 | ||
| Environmental Sensor Support | Supported by AP9641 | ||
| USB Communication | Yes | ||
| Serial Communication | Yes | ||
| Emergency Power Off (EPO) | Yes | ||
| Power Management Software | APC PowerChute | ||
| Â | Â | ||
| AP9641 Network Management Card 3 – Pre-Installed |  | ||
| Card Model | AP9641 | ||
| Card Family | APC UPS Network Management Card 3 | ||
| Installation | Pre-Installed in UPS SmartSlot | ||
| Network Connectivity | Ethernet | ||
| Remote Monitoring | Yes | ||
| Remote Management | Yes | ||
| Web User Interface | Supported | ||
| SNMP | Supported | ||
| Secure Network Management | Supported | ||
| Event Logging | Supported | ||
| Data Logging | Supported | ||
| Configurable Notifications | Supported | ||
| Email Notifications | Supported | ||
| SNMP Trap Notifications | Supported | ||
| Remote UPS Status | Supported | ||
| Remote Battery Monitoring | Supported | ||
| Remote Load Monitoring | Supported | ||
| Power Event Monitoring | Supported | ||
| Environmental Monitoring | Yes | ||
| Temperature / Humidity Sensor Support | Supported with Compatible APC Environmental Sensor | ||
| Network Shutdown Integration | Supported | ||
| Firmware Upgrade Capability | Supported | ||
| Â | Â | ||
| Surge Protection & Filtering | Â | ||
| Surge Energy Rating | 680 Joules | ||
| Noise Filtering | Full-Time Multi-Pole Noise Filtering | ||
| IEEE Surge Let-Through | 0.3% | ||
| Clamping Response Time | Zero | ||
| Surge Standard | Meets UL 1449 | ||
| Â | Â | ||
| Physical | Â | ||
| Color | Black | ||
| Rack Height | 3U | ||
| Height | 5.16 in (131 mm) | ||
| Width | 17.24 in (438 mm) | ||
| Depth | 11.89 in (302 mm) | ||
| Net Weight | Approx. 43 lbs (19.5 kg) | ||
| Mounting Mode | Rack-Mounted | ||
| Rack Ears | Included | ||
| Front Bezel | Included | ||
| Â | Â | ||
| Environmental | Â | ||
| Operating Temperature | 32–104°F (0–40°C) | ||
| Storage Temperature | 5–113°F (-15–45°C) | ||
| Operating Relative Humidity | 0–95%, Non-Condensing | ||
| Storage Relative Humidity | 0–95%, Non-Condensing | ||
| Operating Altitude | 0–10,000 ft | ||
| Storage Altitude | 0–25,000 ft | ||
| Acoustic Level | 45 dBA | ||
| Heat Dissipation | 135 BTU/hr | ||
| IP Degree of Protection | IP20 | ||
| Â | Â | ||
| Included | Â | ||
| UPS | SMTL1500RM3UCNC | ||
| Network Management Card | AP9641 Pre-Installed | ||
| Front Bezel | Included | ||
| Rack Ears | Included | ||
| Warranty | 1 Year Full Replacement Warranty |
