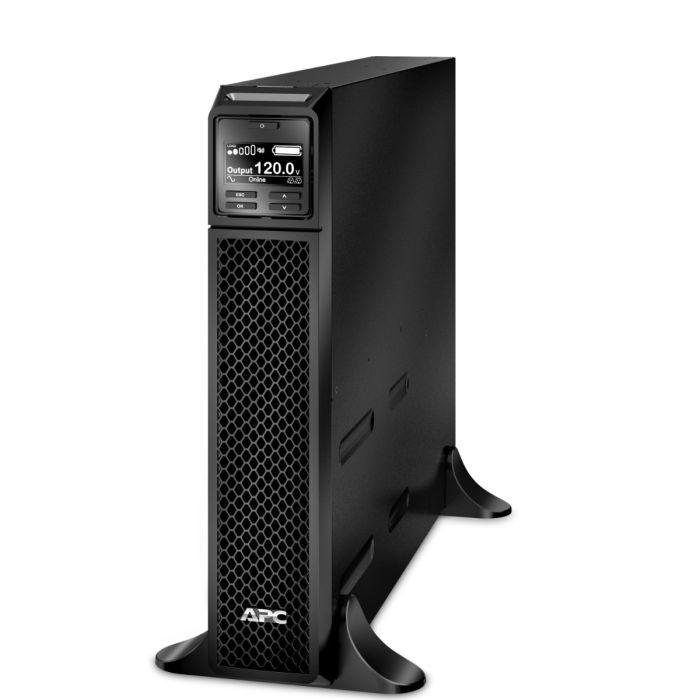

APC Smart-UPS SRT On-Line 1000VA 900W Tower 120V Output: (6)5-15R, SRT1000XLA - Refurbished
APC Smart-UPS On-Line 1000VA 900W Tower 120V
Model: SRT1000XLA
Input:Â NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Double Conversion, Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$649.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 1000VA, 900W, 15A 120V Doube Conversion smart Online UPS
Condition: New batteries, refurbished UPS
Part Number: SRT1000XLA
Maximum output: 900W / 1000VA
Typical backup time at half load: 25.2 minutes (450 Watts)
Typical backup time at full load: 10.2 minutes (900 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT On-Line 1000VA 900W Tower SRT1000XLA Manual
SRT1000XLA - APC Smart-UPS On-Line Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
900W |
||
|
Rated power in VA |
1000VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
1.83 m |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid battery |
General:
|
Product Web Sub-family |
High Density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
43.2 cm |
|
Width |
8.5 cm |
|
Depth |
50.8 cm |
|
Net Weight |
22 kg |
|
Mounting Preference |
No Preference |
|
Mounting Mode |
Rack-mounted with kit |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
Input:
|
Network Frequency |
40 - 70 Hz auto-sensing |
|
Input Voltage Limits |
50 - 150V 40% load |
Output:
|
Maximum Configurable Power in W |
900W |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest Factor |
3:1 |
|
UPS Type |
Double Conversion Online |
|
Wave Type |
Sine wave |
|
Bypass Type |
Built-in Bypass |
|
Maximum Configurable Power in VA |
1000VA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Relative Humidity |
0 - 95% Non-condensing |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
-4 - 122°F (-20 - 50°C) |
|
Storage Relative Humidity |
0 - 95 % Non-condensing |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
50 dBA |
|
Heat Dissipation |
317 Btu/h |
|
IP Degree of Protection |
IP20 |
Batteries & Runtime:
|
Number of Battery Filled Slots |
0
|
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Voltage |
48V |
|
Battery Charge Power (Watts) |
102 W rated |
|
Battery Power in VAH |
306 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC155 |
|
Battery Option |
SRT48BP 1 890 VAh |
|
Extended Runtime |
1 |
Communications & Management:
|
Free Slots |
1
|
|
Alarm |
Audible and visible alarms: prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
432J
|
