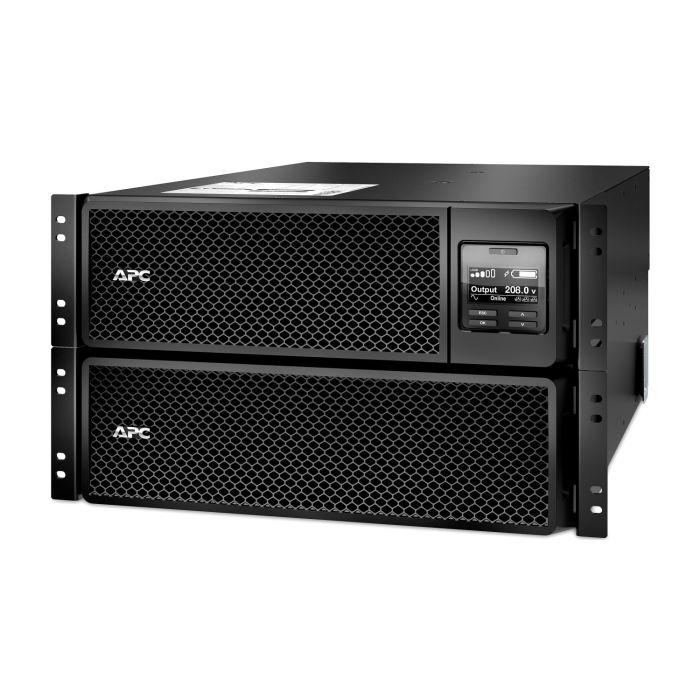

APC Smart-UPS SRT 10000VA 10000W RM 6U 208V/240V 54A SRT10KRMXLT - Refurbished
APC Smart-UPS SRT 10000VA 10kW RM 6U 208V 54A
Model: SRT10KRMXLT
Input: Hard wire 3-wire (208V - 54A)
Output: (4) L6-20R, (2) L6-30R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$5,399.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS SRT 10kVA 10kW, RM, 6U, 208V/240, Double Conversion online UPS
Condition: New batteries, refurbished UPS
Part Number: SRT10KRMXLT
Maximum output: 10kW / 10kVA
Typical backup time at half load: 11.4 minutes (5000 Watts)
Typical backup time at full load: 3.7 minutes (10000 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT 10kVA 10kW SRT10KRMXLT - User Manual
SRT10KRMXLT - APC Smart-UPS SRT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
10kW |
||||
|
Rated Power in VA |
10kVA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
6U |
||||
|
Cable Length |
6 ft (1.83 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Typical Recharge Time |
1.5 h |
|
RBC Quantity |
2 |
|
Battery Voltage |
+/-192 V (split battery referenced to neutral) |
|
Battery Charge Power (Watts) |
1191 W rated |
|
Battery Power in VAH |
1799 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SRT192RMBP2 1 3598 VAh |
|
Extendable Run Time |
1 |
Â
General:
|
Product Web Sub-Family |
High density |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
10.35 in (26.3 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
28.15 in (71.5 cm) |
|
Net Weight |
245.99 lb(US) (111.58 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
100 - 275 V adjustable (half load) |
|
Input Frequency |
40 - 70 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
Output:
|
Max Configurable Power (Watts) |
10kW |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum configurable power in VA |
10kVA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
2490 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
