FREE

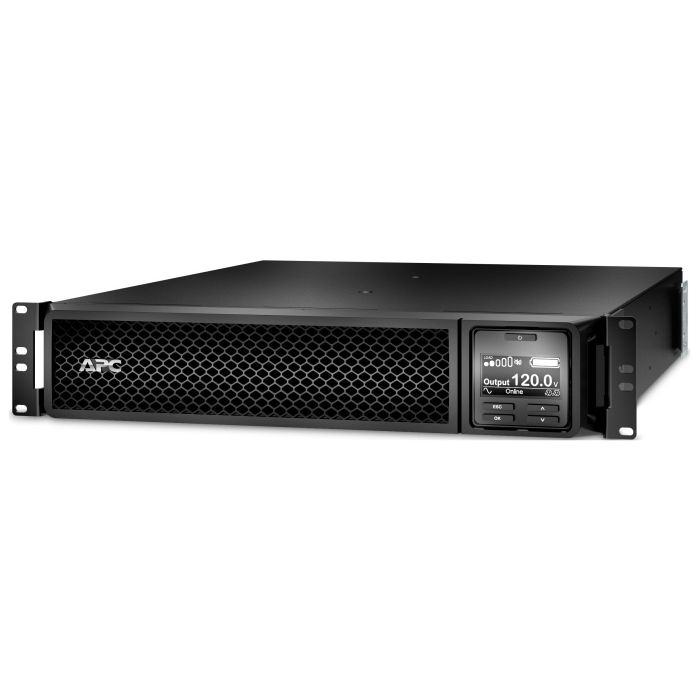

APC Smart-UPS SRT 1500VA 1350W Double Conversion Online RM 2U SRT1500RMXLA - Refurbished
APC Smart-UPS SRT 1500VA 1350W Rackmount 2U 120V - 15A
Model: SRT1500RMXLA
Input: NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
True Online Double-Conversion UPS - Sine Wave Output
Extended Runtime - Supports up to (10) SRT48RMBP External Battery Packs
Graphical LCD Status & Control Display
SmartSlot for Optional Network Management Card
New Batteries, Refurbished UPS
1 Year Warranty Included
$849.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 1500VA 1350W RM 2U 120V
Condition: New Batteries, Refurbished UPS
Part Number: SRT1500RMXLA
Maximum Output: 1350W / 1500VA
Typical Backup Time at Half Load: 13.2 Minutes (675 Watts)
Typical Backup Time at Full Load: 4.6 Minutes (1350 Watts)
Input: NEMA 5-15P, 120V / 15A
Output: (6) NEMA 5-15R
Topology: True Online Double-Conversion
Output Waveform: Sine Wave
Extended Runtime: Supports up to (10) SRT48RMBP External Battery Packs
Network Management: SmartSlot Available for Optional Network Management Card
Display: Graphical LCD Status & Control Display
Emergency Power Off: EPO Supported
Warranty: 1 Year Full Replacement Warranty
Description: The APC Smart-UPS SRT1500RMXLA is a 1500VA / 1350W True Online Double-Conversion rackmount 2U UPS designed for servers, networking equipment, and other critical systems. It provides sine wave output, built-in bypass, (6) NEMA 5-15R outlets, graphical LCD monitoring, and extended runtime support for up to (10) SRT48RMBP external battery packs. It also features USB, serial, EPO, controllable outlet groups, and a SmartSlot for optional network management. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Â
Â
Â
APC Smart-UPS SRT 1500VA 1350W SRT1500RMXLA - User Manual
Â
Â
SRT1500RMXLA - APC Smart-UPS SRT Specifications:
| Main | Â | ||
| Manufacturer | APC | ||
| Product Series | Smart-UPS SRT | ||
| Model | SRT1500RMXLA | ||
| Product Type | Uninterruptible Power Supply (UPS) | ||
| Power Capacity | 1500VA / 1350W | ||
| UPS Topology | Double Conversion Online | ||
| Output Waveform | Sine Wave | ||
| Configuration | Rackmount | ||
| Rack Height | 2U | ||
| Nominal Voltage | 120V | ||
| Input Connection | NEMA 5-15P | ||
| High-Density Design | Yes | ||
| Built-In Bypass | Yes | ||
| Green Mode | Supported | ||
| Cold Start | Supported | ||
| Generator Compatibility | Yes | ||
| IP Protection | IP20 | ||
| Color | Black | ||
| Condition | New Batteries, Refurbished UPS | ||
| Warranty | 1 Year Full Replacement Warranty | ||
| Â | Â | ||
| Input | Â | ||
| Nominal Input Voltage | 120V | ||
| Input Connection | NEMA 5-15P | ||
|
Input Connection Type |
|
||
| Nominal Input Current | 12A | ||
| Recommended Branch Circuit | 15A | ||
| Input Frequency | 40–70 Hz | ||
| Input Frequency Auto-Sensing | Yes | ||
| Input Voltage Range | 90–150V | ||
| Input Phase | Single-Phase | ||
| Input Cord | Factory Installed | ||
| Input Cord Length | 6 ft (1.83 m) | ||
| Number of Input Cables | 1 | ||
| Â | Â | ||
| Output | Â | ||
| Rated Output Power | 1350W | ||
| Rated Output Capacity | 1500VA | ||
| Maximum Configurable Power | 1350W / 1500VA | ||
| Nominal Output Voltage | 120V | ||
| Output Frequency | 50/60 Hz Selectable | ||
| Output Frequency Sync to Mains | 50/60 Hz ±3 Hz | ||
|
Output Connection Type |
|
||
| Total Output Receptacles | 6 | ||
| Output Waveform | Sine Wave | ||
| Harmonic Distortion | Less than 2% | ||
| Crest Factor | 3:1 | ||
| UPS Topology | Double Conversion Online | ||
| Built-In Bypass | Yes | ||
| Controllable Outlet Groups | (2) | ||
| Outlet Group Control | On / Off / Shutdown / Reboot / Sleep | ||
| Power Sequencing | Supported | ||
| Load Shedding | Supported | ||
| Â | Â | ||
| Batteries & Runtime | Â | ||
| Battery Type | Sealed, Maintenance-Free Valve-Regulated Lead-Acid (VRLA) | ||
| Internal Battery Module | (1) | ||
| Internal Battery Voltage | 48 VDC | ||
| Battery Capacity | 9Ah per Battery Module | ||
| Battery Power | 273 VAh Runtime | ||
| Replacement Battery | APCRBC155 | ||
| RBC Quantity | 1 | ||
| Hot-Swappable Battery | Yes | ||
| User-Replaceable Battery | Yes | ||
| Typical Recharge Time | 3 Hours | ||
| Battery Charging Power | 91W Rated | ||
| Battery Life | 3–5 Years | ||
| Typical Backup Time at Half Load | 13.2 Minutes (675W) | ||
| Typical Backup Time at Full Load | 4.6 Minutes (1350W) | ||
| Extended Runtime | Yes | ||
| Compatible External Battery Pack | SRT48RMBP | ||
| Maximum Recognized External Battery Packs | Up to (10) | ||
| 1 External Battery Pack | 819 VAh | ||
| 2 External Battery Packs | 1365 VAh | ||
| 3 External Battery Packs | 1910 VAh | ||
| 4 External Battery Packs | 2456 VAh | ||
| 5 External Battery Packs | 3002 VAh | ||
| 6 External Battery Packs | 3548 VAh | ||
| 8 External Battery Packs | 4640 VAh | ||
| 10 External Battery Packs | 5731 VAh | ||
| External Battery Detection | Automatic | ||
| Smart Battery Management | Yes | ||
| Battery Health Monitoring | Yes | ||
| Battery End-of-Life Monitoring | Yes | ||
| External Battery Temperature Monitoring | Yes | ||
| Â | Â | ||
| Communications & Management | Â | ||
| Network Management Card | Not Included | ||
| SmartSlot | (1) Available | ||
| Free SmartSlot | 1 | ||
| Optional Network Management | Supported | ||
| Compatible Network Management | SmartSlot Network Management Card | ||
| Network Management Web Interface | Supported with Compatible Network Management Card | ||
| USB Port | Yes | ||
| Serial Port | Yes | ||
| Serial Interface | DB9 | ||
| Emergency Power Off | Yes | ||
| EPO Terminal | Yes | ||
| Modbus | Supported | ||
| Modbus Configuration | Enable / Disable | ||
| Modbus Address | Configurable 1–223 | ||
| Remote UPS Monitoring | Supported with Compatible Management Interface | ||
| Remote UPS Configuration | Supported with Compatible Network Management Interface | ||
| Power Management Software | PowerChute / Compatible APC Power Management Software | ||
| Â | Â | ||
| User Interface, Alerts & Controls | Â | ||
| Display Interface | Graphical LCD | ||
| LCD Status Display | Yes | ||
| UPS Status Information | Yes | ||
| Input Voltage Monitoring | Yes | ||
| Output Voltage Monitoring | Yes | ||
| Output Frequency Monitoring | Yes | ||
| Output Current Monitoring | Yes | ||
| Output Power Monitoring | Watts / VA / Load % | ||
| Energy Usage Monitoring | Yes | ||
| Runtime Monitoring | Yes | ||
| Battery Charge Monitoring | Yes | ||
| Battery Health Monitoring | Yes | ||
| External Battery Pack Monitoring | Yes | ||
| Event Log | Yes | ||
| Audible Alarm | Yes | ||
| Alarm Priority | Prioritized by Severity | ||
| LCD Backlight | Always On / Auto Dim / Auto Off | ||
| LCD Brightness | Adjustable | ||
| LCD Contrast | Adjustable | ||
| Menu Modes | Standard / Advanced | ||
| Display Languages | English, French, Italian, German, Spanish, Portuguese, Japanese, Russian | ||
| Self-Test | Supported | ||
| Runtime Test | Supported | ||
| Alarm Test | Supported | ||
| Â | Â | ||
| Operating Modes | Â | ||
| Online Double-Conversion Mode | Yes | ||
| Battery Mode | Yes | ||
| Bypass Mode | Yes | ||
| Green Mode | Yes | ||
| Cold Start / Start on Battery | Yes | ||
| Green Mode Transfer | Up to 10 ms to Online or Battery Mode | ||
| Automatic Bypass | Supported | ||
| Manual Bypass Control | Supported | ||
| Â | Â | ||
| Power Management Features | Â | ||
| Controllable Outlet Group 1 | Yes | ||
| Controllable Outlet Group 2 | Yes | ||
| Delayed Power On | Configurable | ||
| Delayed Power Off | Configurable | ||
| Reboot Duration | Configurable | ||
| Minimum Return Runtime | Configurable | ||
| Load Shedding on Battery | Supported | ||
| Load Shedding by Runtime | Supported | ||
| Load Shedding on Overload | Supported | ||
| Outlet Group Power Sequencing | Supported | ||
| Automatic Restart | Supported | ||
| Energy Meter | Yes | ||
| Firmware Upgrade Support | Yes | ||
| Â | Â | ||
| Power Protection Features | Â | ||
| Blackout Protection | Yes | ||
| Brownout Protection | Yes | ||
| Voltage Sag Protection | Yes | ||
| Surge Protection | Yes | ||
| Voltage Fluctuation Protection | Yes | ||
| Frequency Variation Protection | Yes | ||
| Double-Conversion Power Conditioning | Yes | ||
| Built-In Bypass | Yes | ||
| Emergency Power Off | Yes | ||
| Â | Â | ||
| Physical | Â | ||
| Form Factor | Rackmount | ||
| Rack Height | 2U | ||
| Mounting Mode | Rack-Mounted | ||
| Mounting Position | Horizontal | ||
| Mounting Location | Front | ||
| Height | 3.35 in (85 mm) | ||
| Width | 17.0 in (432 mm) | ||
| Depth | 20.0 in (505 mm) | ||
| Net Weight | 48.5 lb (22 kg) | ||
| Packaged Weight | 65.26 lb (29.6 kg) | ||
| Color | Black | ||
| Â | Â | ||
| Environmental | Â | ||
| Operating Temperature | 32–104°F (0–40°C) | ||
| Storage Temperature | 5–113°F (-15–45°C) | ||
| Operating Altitude | 0–10,000 ft (0–3,000 m) | ||
| Storage Altitude | 0–50,000 ft (0–15,000 m) | ||
| Relative Humidity | 0–95%, Non-Condensing | ||
| Storage Relative Humidity | 0–95%, Non-Condensing | ||
| Acoustic Level | 50 dBA | ||
| Heat Dissipation | 463 BTU/hr | ||
| IP Degree of Protection | IP20 | ||
| Â | Â | ||
| Surge Protection & Filtering | Â | ||
| Surge Protection | Yes | ||
| Surge Energy Rating | 480 J | ||
| Online Power Conditioning | Yes | ||
| Sine Wave Output | Yes | ||
| Â | Â | ||
| Conformance | Â | ||
| Product Certification | ENERGY STAR V2.0 (USA) | ||
| Â | Â | ||
| Condition & Warranty | Â | ||
| UPS Condition | Refurbished | ||
| Battery Condition | New Batteries | ||
| Warranty | 1 Year Full Replacement Warranty |
