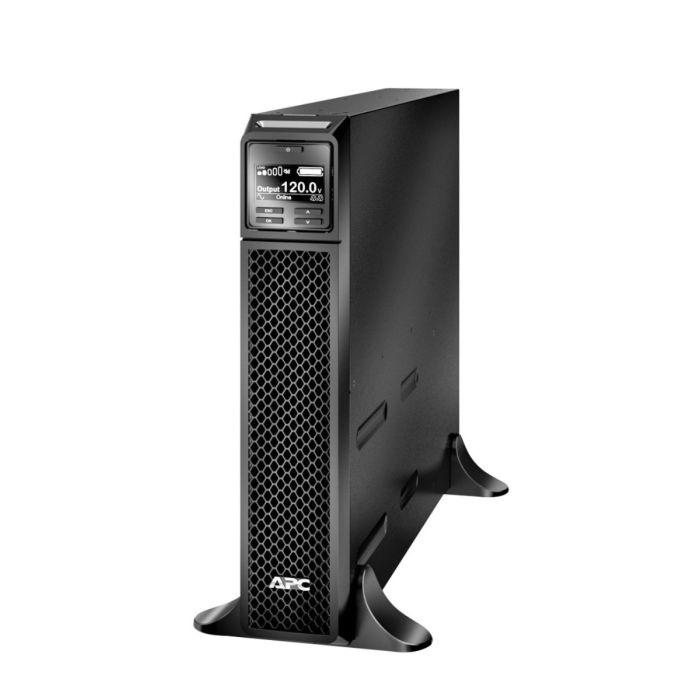

APC Smart-UPS SRT 1500VA 1350W Double Conversion Online Tower 120V SRT1500XLA - Refurbished
APC Smart-UPS SRT 1500VA 1350W Tower 120V
Model: SRT1500XLA
Input:Â NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
$749.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS SRT 1500VA 1350W, Tower, 120V
Condition: New Batteries, refurbished UPS
Part Number: SRT1500XLA
Maximum output: 1350W / 1500VA
Typical backup time at half load: 13.2 minutes (675 Watts)
Typical backup time at full load: 4.6 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT 1500VA 1350W SRT1500XLA - User Manual
SRT1500XLA - APC Smart-UPS SRT Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1350W |
||
|
Rated Power in VA |
1500VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
48V |
|
Battery Charge Power (Watts) |
91 W rated |
|
Battery Power in VAH |
273 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC155 |
|
Battery Option |
SRT48BP 1 819 VAh |
|
Extendable Run Time |
0 |
Â
General:
|
Product Web Sub-Family |
High density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
3.35 in (8.5 cm) |
|
Depth |
20.00 in (50.8 cm) |
|
Net Weight |
48.50 lb(US) (22 kg) |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted with kit |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
Input:
|
Efficiency at Full Load |
90 - 150V |
|
Input Frequency |
40 - 70 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
1350W |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Built-in Bypass |
|
Maximum configurable power in VA |
1500VA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
4- - 122°F (-20 - 50°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
50 dBA
|
|
Heat Dissipation |
463 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
432 J
|
