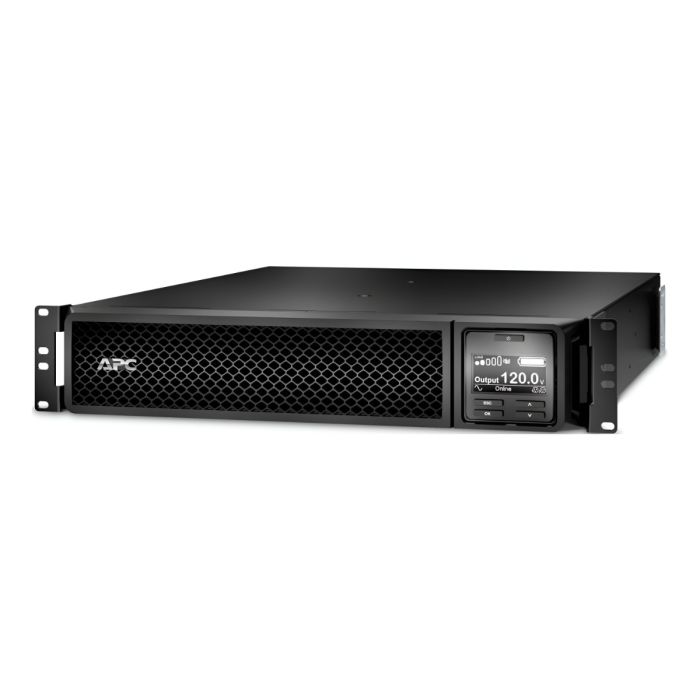

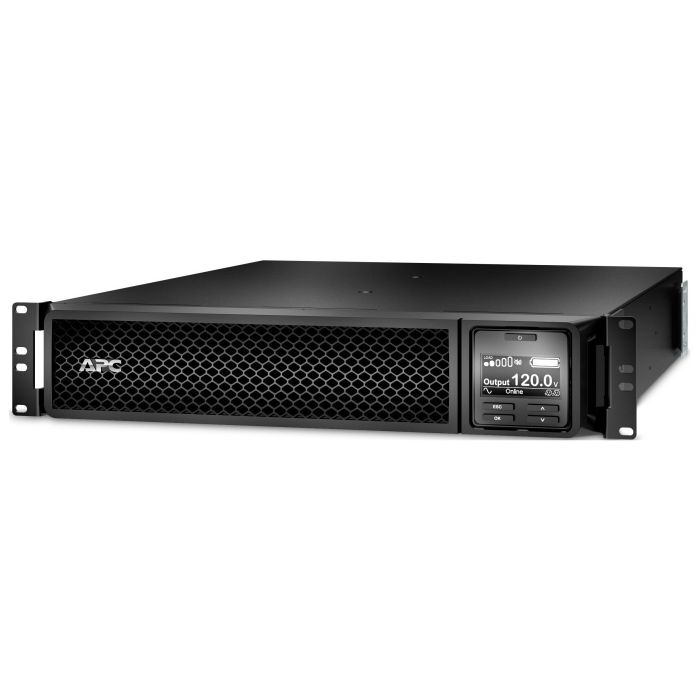

APC Smart-UPS SRT 1500VA 1350W RM 2U 120V Pre-Install AP9631 SRT1500RMXLA-NC - Refurbished
APCÂ Smart-UPS SRT 1500VA 1350W RM 2U with AP9631
Model: SRT1500RMXLA-NC
Input:Â NEMA 5-15P (120V - 15A)
Output: (6) NEMA 5-15R (Battery Backup)
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$899.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 1500VA 1350WÂ RM, 2U, 15A, 120V, AP9631 Installed
Condition: New batteries, refurbished UPS
Part Number: SRT1500RMXLA-NC
Maximum output: 1350W / 1500VA
Typical backup time at half load: 13.10 minutes (675 Watts)
Typical backup time at full load: 4.37 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT 1500VA 1350W 120V SRT1500RMXLA-NC - User Manual
SRT1500RMXLA-NC - APC Smart-UPS SRT Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1350W |
||
|
Rated Power in VA |
1500VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of rack unit |
2U |
||
|
Cable Length |
6 ft (1.83 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Product Web Sub-Family |
High density |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
3.35 in (8.5 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
20.00 in (50.8 cm) |
|
Net Weight |
48.50 lb(US) (22 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted |
|
Two post mountable |
0 |
|
Mounting Position |
Horizontal |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
108 - 150 V adjustable |
|
Input Frequency |
40 - 70 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
1350W |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Built-in Bypass |
|
Maximum Configurable Power in VA |
1500VA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40 °C) |
|
Relative Humidity |
0 - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
-4 - 122°F (-20 - 50°C) |
|
Storage Relative Humidity |
0 - 95 % non-condensing |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
50 dBA
|
|
Heat Dissipation |
463 Btu/h |
|
IP degree of protection |
IP20 |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Voltage |
48V |
|
Battery Charge Power (Watts) |
91 W rated |
|
Battery Power in VAH |
273 VAh runtime |
|
Battery Life |
3 - 5 years |
|

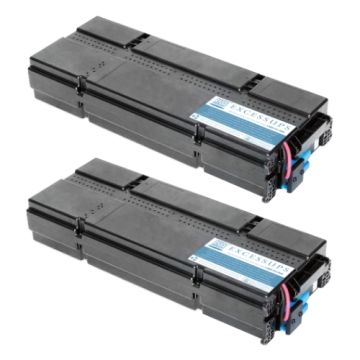

Replacement Battery |
APCRBC155 |
|
Battery Option |
SRT48RMBP 1 819 VAh |
|
Extendable Run Time |
1 |
Communications & Management:
|
Pre-Installed SmartSlotâ„¢ Cards |
AP9631 SmartSlot Network Management Card (v3) with environmental monitoring |
|
Network Management Slot |
1 SmartSlot available |
|
USB Port |
Yes (HID-compliant for OS integration) |
|
Serial Port |
DB9 RS-232 |
|
Communication Interfaces |
USB, RS-232, SmartSlot, EPO contact closure |
|
Remote Monitoring |
Supported via Network Management Card (SNMP/Web/HTTPS) |
|
Supported Protocols |
SNMP v1/v2c/v3, HTTP/HTTPS, SMTP email alerts |
|
Software Compatibility |
APC PowerChute Network Shutdown |
|
Watchdog / Auto-Reboot |
Supported via management software |
|
Event Monitoring |
Load, battery status, input/output voltage, alarms, diagnostics |
|
Remote Access |
Full web-based monitoring and control via installed card |
|
Firmware Updates |
Supported via network management card |
|
Dry Contact Support |
Yes (via management interface) |
|
Emergency Power Off (EPO) |
Yes |
|
Alarm |
Audible and visible alarms : prioritized by severity |
Â
User Interface, Alerts & Controls:
|
Front Panel Display |
Multi-function LCD display (status, load, battery, alarms, configuration menus)
|
|
Front Panel Indicators |
LED status indicators (online, on-battery, bypass, fault, overload, battery status)
|
|
Controls |
Power ON/OFF, menu navigation (up/down/escape), alarm cancel, self-test
|
|
Audible Alarm |
Battery operation, low battery, overload, fault, system events
|
|
Alarm Management |
Alarm silence via front panel control or LCD prompts
|
|
Emergency Power Off (EPO) |
Supported
|
|
 |
Â
|
Â
Surge Protection and Filtering:
|
Surge Energy Rate |
432 J
|
