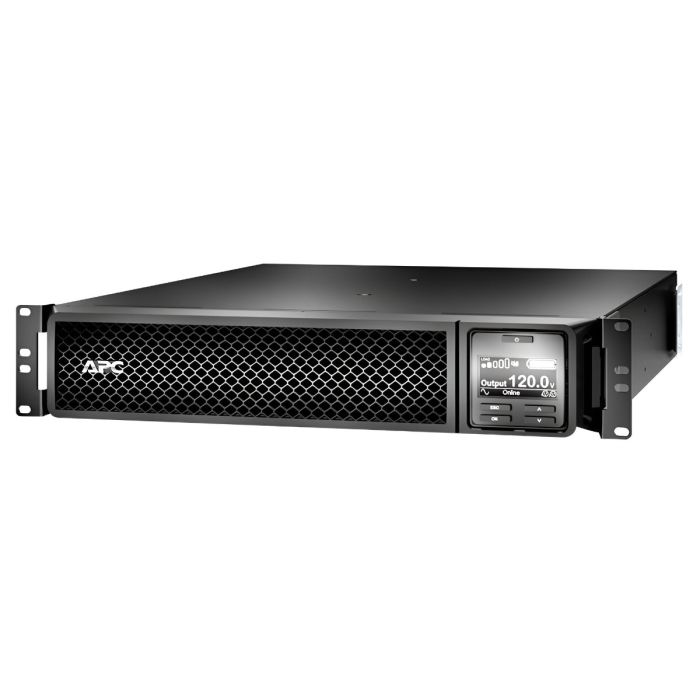

APC SRT3000RMXLA Smart-UPS SRT 3000VA 2700W Double Conversion Online 30A 120V - Refurbished
APC Smart-UPS SRT 3000VA 2700W RM 2U
Model: SRT3000RMXLA
Input: NEMA L5-30P (120V - 30A)
Output: (8) NEMA 5-20R, (1) NEMA L5-30R
Double Conversion Online UPS - Pure Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,499.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS SRT 3000VA 2700W, RM, 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SRT3000RMXLA
Maximum output: 2700W / 3000VA
Typical backup time at half load: 10.3 minutes (1350 Watts)
Typical backup time at full load: 3.2 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT 3000VA 2700W SRT3000RMXLA Manual
SRT3000RMXLA - APC Smart-UPS SRT Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Main Output Voltage |
120V |
||||
|
Rated Power in VA |
3000VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
1 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
96V |
|
Battery Charge Power (Watts) |
151 W rated |
|
Battery Power in VAH |
454 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC152 |
|
Battery Option |
SRT96RMBP 1 1362 VAh |
|
Extendable Run Time |
1 |
Â
General:
|
Product Web Sub-Family |
High density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.35 in (8.5 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
25.00 in (63.5 cm) |
|
Net Weight |
69.00 lb(US) (31.3 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Horizontal |
Input:
|
Input Frequency |
40 - 70 Hz auto-sensing |
Output:
|
Max Configurable Power (Watts) |
2700W |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Configurable Power in VA |
3000VA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
805 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
340 J
|
