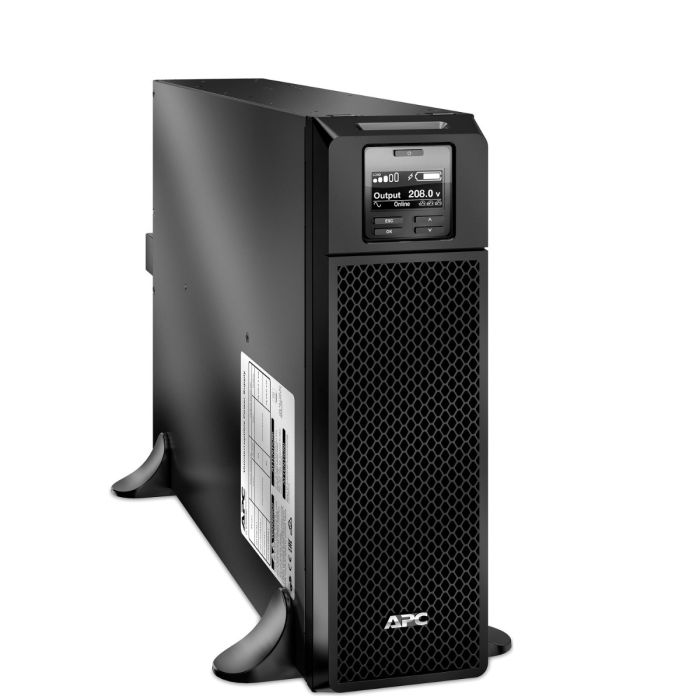

APC Smart-UPS SRT 5000VA 4800W Tower 208V/240V 30A SRT5KXLT - Refurbished
APC Smart-UPS SRT 5000VA 4800W Tower 208V/240V 30A
Model: SRT5KXLT
Input: NEMA L6-30P (208V - 30A)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Warranty Included
$2,449.99
$2,249.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS SRT 5000VA 4800W, Tower, 208V
Condition: New batteries, refurbished UPS
Part Number:Â SRT5KXLT
Maximum output: 4800WÂ /Â 5000VA
Typical backup time at half load: 11.7 minutes (2250W)
Typical backup time at full load: 3.9 minutes (4500W)
Warranty:Â 1 year full replacement warranty)
APC Smart-UPS SRT 5000VA 4800WÂ Tower SRT5KXLT Manual
SRT5KXLT - APC Smart-UPS SRT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240 V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated power in W |
4800W |
||||
|
Rated power in VA |
5400VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
4U |
||||
|
Cable Length |
10 ft (3.05 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
1.5 h |
|
RBC Quantity |
1 |
|
Battery Voltage |
192V |
|
Battery Charge Power (Watts) |
556W rated |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC140 |
General:
|
Product Web Sub-Family |
High density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
17.0 inches (432mm, 43.2cm) |
|
Width |
5.1 inches (130mm, 13.0cm) |
|
Depth |
28.32 inches (719mm, 71.9cm) |
|
Net Weight |
123.0 lbs. (55.79kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
No preference |
|
Mounting Mode |
Rack-mounted with kit |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
100-275 V adjustable (half load) |
|
Input Frequency |
40 - 70 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 2% |
|
Maximum Configurable Power in VA |
5400VA |
|
Max Configurable Power (Watts) |
4800W |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Relative Humidity |
0-95% non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Relative Humidity |
0-95% non-condensing |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
1047 Btu/h |
|
IP Degree of Protection |
IP20 |
Communications & Management:
|
Free Slots |
1
|
|
SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring - Optional
|
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes
|
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
