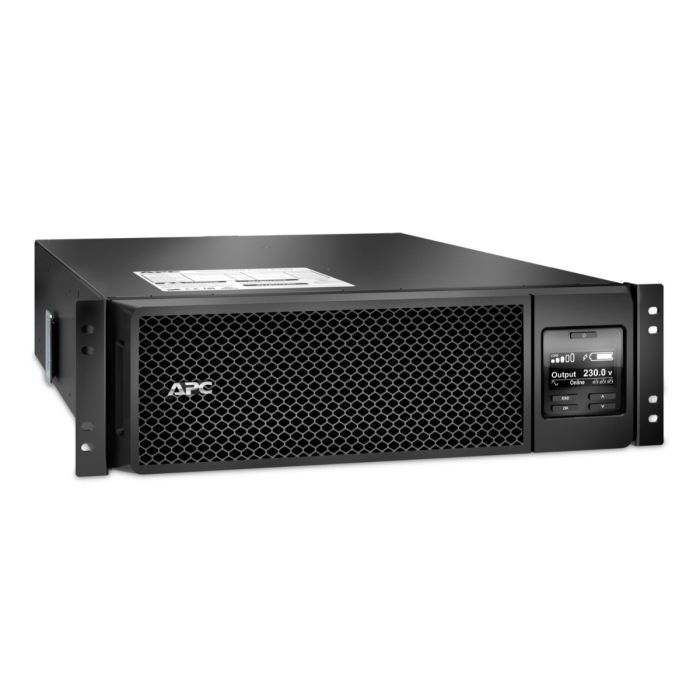

Main image Click to view image in fullscreen APC Smart-UPS SRT 5000VA 4800W RM 3U 208/230V 40A SRT5KRMXLW-HW Refurbished

APC Smart-UPS SRT 5000VA 4800W RM 3U 208/230V 40A SRT5KRMXLW-HW Refurbished

APC Smart-UPS SRT 5000VA RM 208/230V HW
Model: SRT5KRMXLW-HW
Input: Hard Wire 3-wire (2P + E), Hard Wire 3-wire (1P+N+E) (208V - 230 V)
Output: Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $600.00

3 Year + $1,050.00

In stock

Quantity

Manufacturer: APC
Model: APC Smart-UPS SRT 5000VA 4800W, RM, 3U, 208V 40A
Condition: New Batteries, Refurbished UPS
Part Number: SRT5KRMXLW-HW
Maximum output: 4800W / 5000VA
Typical backup time at half load: 10.7 minutes (2400 Watts)
Typical backup time at full load: 3.5 minutes (4800 Watts)
Warranty: 1 year full replacement warranty

APC Smart UPS SRT 5000VA RM 208/230V - SRT5KRMXLW-HW - User's Manual

SRT5KRMXLW-HW Specifications:

Output:

Output power capacity	4.5 KWatts / 5.0 kVA
Max Configurable Power	4.5 KWatts / 5.0 kVA
Nominal Output Voltage	208V , 230V
Output Voltage Distortion	Less than 2%
Output Frequency (sync to mains)	50/60Hz +/- 3 Hz
Other Output Voltages	220, 240
Load Crest Factor	3 : 1
Waveform type	Sine wave
Output Connections	Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Battery Backup
Bypass	Internal Bypass (Automatic and Manual)

Input:

Nominal Input Voltage	208V , 230V
Input Frequency	40 - 70 Hz (auto sensing)
Input Connections	Hard Wire 3-wire (2PH + E), Hard Wire 3 wire (1PH+N+E)
Input voltage range for main operations	160 - 275 V
Input voltage adjustable range for mains operation	100 - 275 (half load) V
Other Input Voltages	220, 240

Batteries & Runtime:

Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time	1.5 hours
Replacement Battery	APCRBC140
RBC Quantity	1
Extendable Run Time	Yes
Extended Run Options	APC-Smart-UPS-SRT-5000VA-RM-208-230V-HW
Typical Backup Time at Half Load	11 minutes (2.25 KWatts)
Typical Backup Time at Full Load	4.0 minutes (4.5 KWatts)

Communications & Management:

Interface Port(s)	RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
Control panel	Multi-function LCD status and control console
Audible Alarm	Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)	Yes
Available SmartSlot™ Interface Quantity	1

Surge Protection and Filtering:

Surge energy rating

480 Joules

Physical:

Maximum Height	5.1" (13.0cm)
Maximum Width	17.0" (43.2cm)
Maximum Depth	28.32" (71.9cm)
Net Weight	123.0bs (55.79kg)
