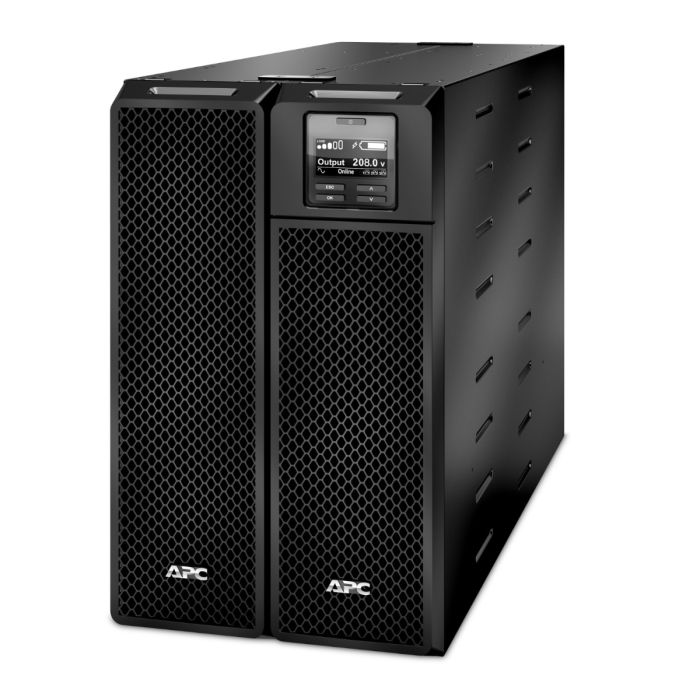

APC Smart-UPS SRT5KXLT-5KTF 5000VA w/ 208/240V to 120V Step-Down Transformer - Refurbished

APC Smart-UPS SRT 5000VA 4800W 208/240V to 120V Step-Down Transformer SRT5KTF
Model: SRT5KXLT-5KTF
Input: NEMA L6-30P (208V / 240V)
Output:(8) NEMA 5-20R Battery, (1) NEMA L14-30R Battery, (2) NEMA L6-30R Battery, (4) NEMA L6-20R Battery
Double Conversion Online UPS - Pure Sinewave Output

Internal Automatic & Manual Bypass
New Batteries, Refurbished UPS & Transformer
1 Year Full Replacement Warranty Included

In stock

Manufacturer: APC
Model: APC Smart-UPS SRT 5000VA Tower 208V with 208/240V to 120V Isolation / Step-Down Transformer SRT5KTF
Condition: Refurbished UPS  & Transformer
Part Number: SRT5KXLT-5KTF
Maximum output: 4800W / 5000VA
Typical backup time at half load: 12 minutes (2125 KWatts)
Typical backup time at full load: 4.4 minutes (4.8 KWatts)
Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty

Description: The APC Smart-UPS SRT5KXLT-5KTF is a 5000VA / 4800W online double-conversion UPS with an integrated 208/240V to 120V isolation step-down transformer, designed for mission-critical servers, network equipment, telecommunications systems, and mixed-voltage environments. The system provides 120V, 208V, and 240V output power through multiple NEMA receptacles, including (8) NEMA 5-20R, (4) NEMA L6-20R, (2) NEMA L6-30R, and (1) NEMA L14-30R. Features include pure sine wave output, internal automatic and manual bypass. Refurbished and backed by a 1 Year Full Replacement Warranty.




APC Smart UPS SRT 5kVA w/ 208/240V to 120V Step-Down Transformer - User's Manual





SRT5KXLT-5KTF -  APC Smart-UPS SRT 5000VA Tower Specifications:

Key Features
UPS Topology Online Double Conversion
Form Factor Tower
Capacity 5000VA / 4800W
Input Voltage 208V
Other Input Voltage 240V
Output Voltage 120V, 208V
Other Output Voltage 240V
Waveform Type Pure Sine Wave
Input Connection Type NEMA L6-30P
Output Connections

(8) NEMA 5-20R,

(4) NEMA L6-20R,

(2) NEMA L6-30R,

(1) NEMA L14-30R
Bypass Type Internal Bypass (Automatic and Manual)
Replacement Battery APCRBC140
Extendable Runtime Yes

Input
Nominal Input Voltage 208V
Other Input Voltage 240V
Input Voltage Range 160 - 275V
Adjustable Input Voltage Range (Half Load) 100 - 275V
Input Frequency 40 - 70 Hz Auto-Sensing
Input Connection Type NEMA L6-30P
Input Cord Length 10 ft (3.05 m)
Number of Power Cords 1

Output
Rated Output Capacity 5000VA
Rated Output Power 4800W
Maximum Configurable Power 5000VA
Maximum Configurable Power (Watts) 4800W
Nominal Output Voltage 120V, 208V
Other Output Voltage 240V
Output Frequency 50/60 Hz ±3 Hz Sync to Mains
Output Voltage Distortion Less Than 2%
Waveform Type Pure Sine Wave
Transfer Time 0 ms
Output Connections (8) NEMA 5-20R
  (4) NEMA L6-20R
  (2) NEMA L6-30R
  (1) NEMA L14-30R
Bypass Type Internal Bypass (Automatic and Manual)

Batteries & Runtime
Battery Type Lead-Acid Internal Included
Battery Voltage 192V
Replacement Battery Cartridge APCRBC140
RBC Quantity 1
Typical Recharge Time 1.5 Hours
Battery Life 3 - 5 Years
Battery Charging Power 556W Rated
Extendable Runtime Yes
Included Battery Modules 0
Empty Battery Slots 0

Communications & Management
Control Panel Multi-Function LCD Status and Control Console
Interface Ports USB
  RJ-45 Serial
SmartSlot 1 Available Slot
Network Management Card Optional
AP9640 Compatible Yes
AP9641 Compatible Yes
Remote Monitoring Supported with Optional NMC
Environmental Monitoring Supported with Optional NMC
Emergency Power Off (EPO) Yes
Alarm System Audible and Visible Alarms Prioritized by Severity
USB Compatible Yes

Surge Protection & Filtering
Surge Energy Rating 480 Joules

Physical
Color Black
Height 17.008 in (432 mm)
Width 10.2 in (259 mm)
Depth 28.3 in (719 mm)
Net Weight 248.0 lbs (112.49 kg)
Mounting Preference No Preference
Mounting Position Vertical
Mounting Mode Tower
Two Post Mountable No

Environmental
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature 5°F to 113°F (-15°C to 45°C)
Operating Humidity 0 - 95% Non-Condensing
Storage Humidity 0 - 95% Non-Condensing
Operating Altitude Up to 10,000 ft
Storage Altitude Up to 50,000 ft (15,240 m)
Acoustic Noise 55 dBA
Heat Dissipation 1047 BTU/hr
IP Rating IP20

Conformance
Product Family Smart-UPS On-Line
Product Type Uninterruptible Power Supply (UPS)
ENERGY STAR Certification ENERGY STAR V2.0 (USA)
Condition Refurbished UPS & Transformer
Warranty 1 Year Full Replacement Warranty Included
