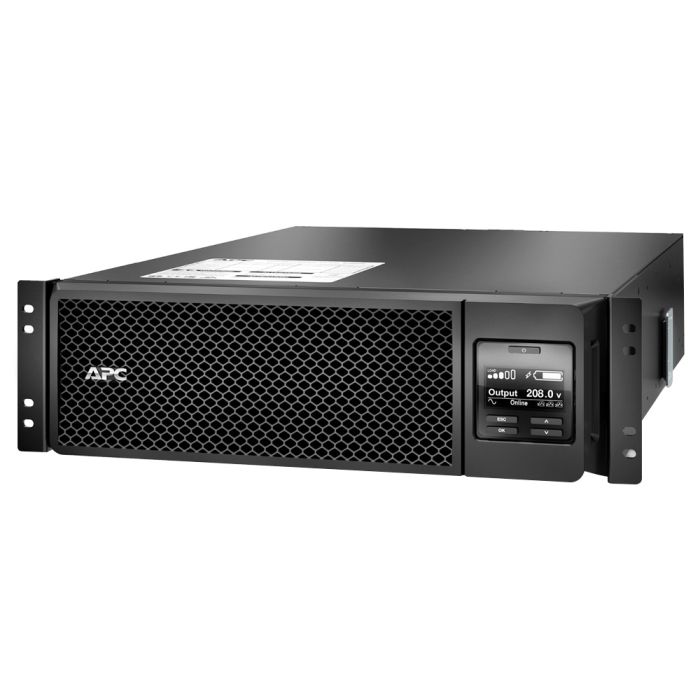

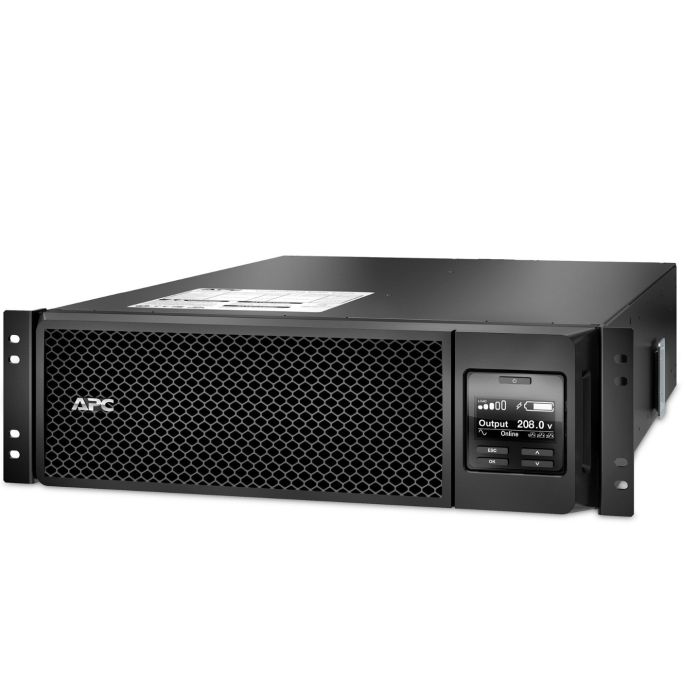

APC Smart-UPS SRT 5000VA 4800W 30A RM 3U 208V/240V SRT5KRMXLT - Refurbished
APC Smart-UPS SRT 5000VA 4800W Rackmount 3U 208V/240V
Model: SRT5KRMXLT
Input: NEMA L6-30P (208V/240V)
Output: (2) NEMA L6-20R, (2) NEMA L6-30R + Hardwire
Double Conversion Online UPS - Sine Wave Output
Extended Runtime - Supports SRT192RMBP Battery Packs
Environmental Monitoring Supported with Compatible Network Card
Multifunction LCD Status & Control Display
New Batteries, Refurbished UPS
1 Year Warranty Included
$2,699.99
$2,499.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 5000VA 4800W, RM, 3U, 208V
Condition: New Batteries, Refurbished UPS
Part Number: SRT5KRMXLT
Maximum Output: 4800W / 5000VA
Typical Backup Time at Half Load: 10.7 Minutes (2400 Watts)
Typical Backup Time at Full Load: 3.5 Minutes (4800 Watts)
Input: NEMA L6-30P, 208V / 240V
Output: (2) NEMA L6-20R, (2) NEMA L6-30R, Hardwire Output
Topology: Double Conversion Online
Output Waveform: Sine Wave
Extended Runtime: Supports SRT192RMBP External Battery Packs
Network Management: Optional / Compatible with APC Network Management Cards
Management Slot: SmartSlot Available
Display: Multifunction LCD Status & Control Console
Emergency Power Off (EPO): Yes
Warranty: 1 Year Full Replacement Warranty
Â
Â
Â
Â
APC Smart-UPS SRT 5000VA 4800W SRT5KRMXLT - User Manual
Â
Â
Â
SRT5KRMXLT - APC Smart-UP SRT Specifications:
| Main | Â | ||||
| Manufacturer | APC / Schneider Electric | ||||
| Product Family | Smart-UPS SRT | ||||
| Product Range | Smart-UPS On-Line | ||||
| Model | SRT5KRMXLT | ||||
| Product Type | Uninterruptible Power Supply (UPS) | ||||
| Power Capacity | 5000VA / 4800W | ||||
| Manufacturer Current Rated VA | 5400VA | ||||
| Maximum Configurable Power | 5400VA / 4800W | ||||
| Topology | Double Conversion Online | ||||
| Output Waveform | Sine Wave | ||||
| Main Input Voltage | 208V | ||||
| Other Input Voltage | 240V | ||||
| Main Output Voltage | 208V | ||||
| Other Output Voltage | 240V | ||||
| Form Factor | Rackmount | ||||
| Rack Height | 3U | ||||
| Product Sub-Family | High Density | ||||
| Redundant | No | ||||
| Â | Â | ||||
| Input | Â | ||||
| Nominal Input Voltage | 208V / 240V | ||||
| Input Phase | Single-Phase | ||||
|
Input Connection Type |
|
||||
| Input Frequency | 40–70 Hz Auto-Sensing | ||||
| Input Voltage Range | 100–275V Adjustable at Half Load | ||||
| Input Cord Length | 10 ft (3.05 m) | ||||
| Number of Input Cords | 1 | ||||
| Power Protection | Continuous Online Double-Conversion | ||||
| Â | Â | ||||
| Output | Â | ||||
| Rated Output Power | 4800W | ||||
| Rated Output Capacity | 5400VA per Current Manufacturer Datasheet | ||||
| Maximum Configurable Power | 5400VA / 4800W | ||||
| Output Voltage | 208V / 240V | ||||
| Output Phase | Single-Phase | ||||
|
Output Connection Type |
|
||||
| Hardwire Output | 3-Wire (2PH + G) | ||||
| Output Frequency | 50/60 Hz ±3 Hz Sync to Mains | ||||
| Harmonic Distortion | Less Than 2% | ||||
| Crest Factor | 3:1 | ||||
| Output Waveform | Sine Wave | ||||
| Topology | Double Conversion Online | ||||
| Bypass | Internal Automatic and Manual Bypass | ||||
| Power Conditioning | Continuous Online Power Protection | ||||
| Â | Â | ||||
| Batteries & Runtime | Â | ||||
| Battery Type | Lead-Acid Battery | ||||
| Internal Battery | Included | ||||
| Battery Voltage | 192VDC | ||||
| Replacement Battery | APCRBC140 | ||||
| RBC Quantity | 1 | ||||
| Battery Life | 3–5 Years | ||||
| Typical Recharge Time | 1.5 Hours | ||||
| Battery Charging Power | 556W Rated | ||||
| Battery Power | 840VAh Runtime | ||||
| Typical Runtime at Half Load | 10.7 Minutes (2400W) | ||||
| Typical Runtime at Full Load | 3.5 Minutes (4800W) | ||||
| Extendable Runtime | Yes | ||||
| External Battery Pack | SRT192RMBP | ||||
| Maximum External Battery Packs | Up to (10) | ||||
|
Battery Option |
SRT192RMBP 1 2520 VAh |
||||
| Battery Monitoring | Intelligent Battery Diagnostics and Monitoring | ||||
| User-Replaceable Battery | Yes | ||||
| Â | Â | ||||
| Communications & Management | Â | ||||
| Management Expansion | SmartSlot | ||||
| Free SmartSlot | 1 | ||||
| Network Management Card | Optional / Compatible with APC Network Management Cards | ||||
| NMC2 Compatibility | AP9630 Network Management Card 2 | ||||
| NMC2 with Environmental Monitoring | AP9631 Network Management Card 2 with Environmental Monitoring | ||||
| NMC3 Compatibility | AP9640 Network Management Card 3 | ||||
| NMC3 with Environmental Monitoring | AP9641 Network Management Card 3 with Environmental Monitoring | ||||
| NMC3 Advanced Option | AP9643 Network Management Card 3 | ||||
| Environmental Monitoring | Supported with AP9631, AP9641 or AP9643 and Compatible Environmental Sensors | ||||
| Ethernet Network Management | Supported with Compatible Network Management Card | ||||
| Web-Based Monitoring | Supported with Compatible Network Management Card | ||||
| SNMP Management | Supported with Compatible Network Management Card | ||||
| HTTPS Secure Management | Supported with Compatible Network Management Card | ||||
| Remote UPS Monitoring | Supported with Compatible Network Management Card | ||||
| Remote UPS Configuration | Supported with Compatible Network Management Card | ||||
| Remote Diagnostics | Supported with Compatible Network Management Card | ||||
| Network Shutdown | Supported with Compatible APC Network Management Card / PowerChute Network Shutdown | ||||
| Event Notifications | Supported with Compatible Network Management Card | ||||
| Environmental Sensor Monitoring | Supported with Environmental-Monitoring Network Card | ||||
| USB Port | Yes | ||||
| Serial Port | Yes | ||||
| Local Communications | USB and Serial | ||||
| Emergency Power Off (EPO) | Yes | ||||
| Alarm Notifications | Audible and Visible Alarms Prioritized by Severity | ||||
| Current Manufacturer Configuration | Current Schneider Datasheet Lists Network Management Card 3 with Environmental Monitoring Preinstalled | ||||
| Â | Â | ||||
| User Interface, Alerts & Controls | Â | ||||
| Control Panel | Multifunction LCD Status & Control Console | ||||
| LCD Display | Yes | ||||
| UPS Status Monitoring | Real-Time | ||||
| Load Monitoring | Yes | ||||
| Battery Monitoring | Yes | ||||
| Input / Output Monitoring | Yes | ||||
| Alarm Monitoring | Yes | ||||
| Configuration Menus | Yes | ||||
| Audible Alarms | Yes | ||||
| Visible Alarms | Yes | ||||
| Alarm Priority | Prioritized by Severity | ||||
| Emergency Power Off | Yes | ||||
| Â | Â | ||||
| Power Management Features | Â | ||||
| Double-Conversion Protection | Yes | ||||
| Automatic Internal Bypass | Yes | ||||
| Manual Internal Bypass | Yes | ||||
| Scalable Runtime | Yes | ||||
| Intelligent Battery Management | Yes | ||||
| Remote Monitoring | Available with Compatible Network Management Card | ||||
| Environmental Monitoring | Available with Compatible Environmental-Monitoring Network Card | ||||
| Network Shutdown Support | Available with Compatible Network Management Card | ||||
| Â | Â | ||||
| Physical | Â | ||||
| Color | Black | ||||
| Rack Height | 3U | ||||
| Height | 5.1 in (130 mm) | ||||
| Width | 17.008 in (432 mm) | ||||
| Depth | 28.3 in (719 mm) | ||||
| Net Weight | 123.00 lb (55.79 kg) | ||||
| Mounting Mode | Rack-Mounted | ||||
| Mounting Position | Horizontal | ||||
| Mounting Location | Front | ||||
| Two-Post Mountable | No | ||||
| USB Compatible | Yes | ||||
| Â | Â | ||||
| Environmental | Â | ||||
| Operating Temperature | 32–104°F (0–40°C) | ||||
| Operating Relative Humidity | 0–95%, Non-Condensing | ||||
| Operating Altitude | 0–10,000 ft | ||||
| Storage Temperature | 5–113°F (-15–45°C) | ||||
| Storage Relative Humidity | 0–95%, Non-Condensing | ||||
| Storage Altitude | 0–50,000 ft (0–15,240 m) | ||||
| Acoustic Level | 55 dBA | ||||
| Heat Dissipation | 1047 BTU/hr | ||||
| IP Protection | IP20 | ||||
| Â | Â | ||||
| Surge Protection & Filtering | Â | ||||
| Surge Energy Rating | 480 Joules | ||||
| Â | Â | ||||
| Conformance | Â | ||||
| ENERGY STAR | ENERGY STAR V2.0 (USA) | ||||
| NOM | Certified | ||||
| Â | Â | ||||
| Condition & Warranty | Â | ||||
| UPS Condition | Refurbished | ||||
| Battery Condition | New Batteries | ||||
| Replacement Battery | APCRBC140 | ||||
| Network Management Card | Optional / Compatible | ||||
| Warranty | 1 Year Full Replacement Warranty |
