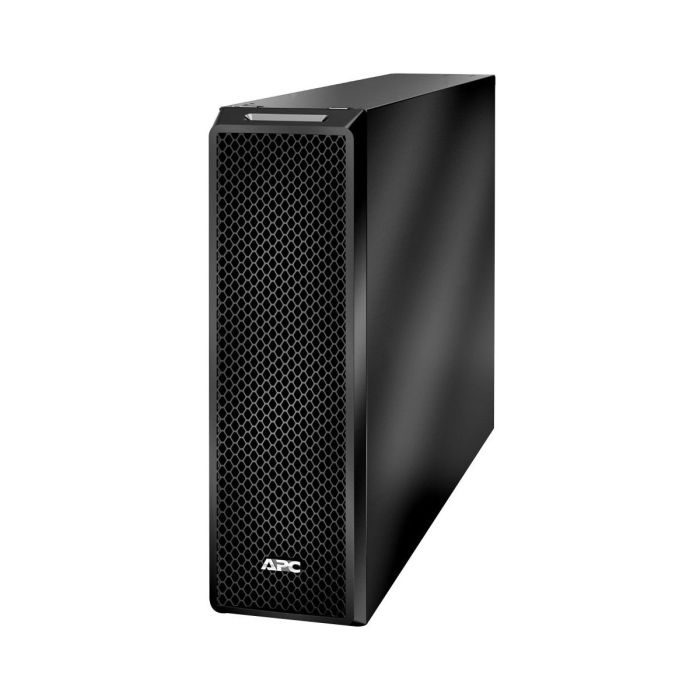

APC Smart-UPS SRT5KTF 5kVA Isolation Step-Down Transformer 208V/240V to 120V - Refurbished

Manufacturer: APC
Model: APC Smart-UPS SRT 5000VA isolation step down transformer 208V/240V to 120V Rack or Tower
Condition: Refurbished
Part Number: SRT5KTF
Warranty: 1 Year Full Replacement Warranty

Description: The APC SRT5KTF is a 5kVA isolation and step-down transformer designed for APC Smart-UPS SRT systems. It supports 208V and 240V input power and provides 120V, 208V, and 240V output power for mixed-voltage environments. Featuring a NEMA L6-30P input connection and multiple output receptacles, including (8) NEMA 5-20R, (2) NEMA L6-20R, (1) NEMA L6-30R, and (1) NEMA L14-30R, the SRT5KTF provides flexible power distribution for servers, networking equipment, telecommunications systems, and other critical applications. The transformer can be installed in either rackmount or tower configurations and includes selectable 208V/240V input operation. Refurbished and backed by a 1 Year Full Replacement Warranty

APC Smart-UPS SRT Step-Down Transformer 5kVA SRT5KTF User's Manual

SRT5KTF - APC Smart-UPS SRT 5kVA Specifications:

Key Features
Transformer Type	Isolation / Step-Down Transformer
Form Factor	Tower
Capacity	5000VA / 5kVA
Input Voltage	208V / 240V
Output Voltage	120V / 208V
Additional Output Voltage	240V
Input Connection	NEMA L6-30P
Total Output Receptacles	12
Rackmount Kit Support	Yes
Input
Nominal Input Voltage	208V / 240V
Input Frequency	50/60 Hz
Input Connection Type	NEMA L6-30P
Cable Length	3 ft (0.91 m)
Number of Power Cords	1
Input Voltage Selection	User Selectable 208V or 240V
Output
Output Voltage	120V / 208V
Additional Output Voltage	240V
Total Output Receptacles	12
Output Connections	(8) NEMA 5-20R
	(2) NEMA L6-20R
	(1) NEMA L6-30R
	(1) NEMA L14-30R
Isolation Transformer	Yes
Step-Down Function	208V/240V to 120V
Power Distribution	Mixed Voltage Output Support
Physical
Color	Black
Height	17.01 in (43.2 cm)
Width	5.12 in (13.0 cm)
Depth	25.98 in (66.0 cm)
Net Weight	125 lbs (56.7 kg)
Mounting Mode	Rack-Mounted with Kit - Optional
Tower Installation	Supported
Mounting Preference	No Preference
Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Operating Humidity	0% to 95% Non-Condensing
Storage Humidity	0% to 95% Non-Condensing
Operating Altitude	Up to 10,000 ft
Storage Altitude	Up to 50,000 ft (15,240 m)
Conformance
Product Family	Smart-UPS SRT Accessories
Condition	Refurbished
Warranty	1 Year Full Replacement Warranty Included
