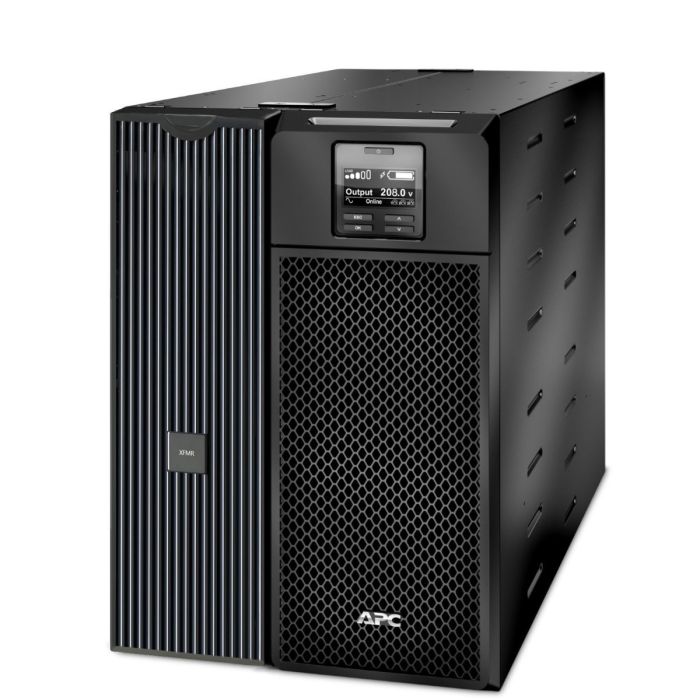

Main image Click to view image in fullscreen APC Smart-UPS SRT6KXLT-SURT003 6kVA w/ 208/240V to 120V Step-Down Transformer - Refurbished

APC Smart-UPS SRT6KXLT-SURT003 6kVA w/ 208/240V to 120V Step-Down Transformer - Refurbished

APC Smart-UPS SRT 6000VA 6000W 208/240V with 120V Step-Down Transformer SURT003
Model: SRT6KXLT-SURT003
Input: NEMA L6-30P
Output: (8) NEMA 5-20R, (1) NEMA L14-30R, (1) NEMA L6-30R, (2) NEMA L6-20R
Double Conversion Online UPS - Pure Sine Wave Output
120V / 208V / 240V Output via SURT003
Extended Runtime - Compatible with SRT192BP / SRT192RMBP
Built-In Network Management Interface
New Batteries, Refurbished UPS & Transformer
1 Year Full Replacement Warranty

Warranty

1 Year Included

2 Year + $850.00

3 Year + $1,487.50

In stock

Quantity

Manufacturer: APC
Model: APC Smart-UPS SRT 6000VA 6000W Online UPS with SURT003 208/240V to 120V Step-Down Transformer
Condition: New Batteries, Refurbished UPS & Transformer
Part Number: SRT6KXLT-SURT003
UPS Maximum Output: 6000W / 6000VA
Maximum Output Through SURT003: 4800W / 4800VA
Typical Backup Time at Half Load: 12.5 Minutes (3000W)
Typical Backup Time at Full Load: 4.5 Minutes (6000W)
Input Voltage: 208V / 240V
UPS Output Voltage: 208V / 240V
Transformer Output Voltage: 120V / 208V / 240V
Topology: Double Conversion Online
Output Waveform: Sine Wave
Extended Runtime: Supports External Battery Packs
Network Management: Built-In Network Management Interface
Display: Multifunction LCD Status & Control Console
Warranty: 1 Year Full Replacement Warranty

APC Smart-UPS SRT 6000VA 4800W Tower - User's Manual

APC Smart-UPS RT Isolation/Step-Down Transformer SURT003 - User Manual

SRT6KXLT-SURT003 - APC Smart-UPS SRT Online UPS with Step-Down Transformer Specifications:

Main
Manufacturer	APC by Schneider Electric
Product Family	Smart-UPS SRT
UPS Model	SRT6KXLT
Transformer Model	SURT003
Part Number / Bundle	SRT6KXLT-SURT003
Product Type	Online UPS with Isolation / Step-Down Transformer
UPS Maximum Output	6000W / 6000VA
Maximum Output Through SURT003	4800W / 4800VA
UPS Topology	Double Conversion Online
Output Waveform	Sine Wave
UPS Nominal Voltage	208V / 240V
Transformer Output Voltage	120V / 208V / 240V
Input Phase	Single-Phase
Form Factor	Tower
Extended Runtime	Yes
Condition	New Batteries, Refurbished UPS & Transformer

Input – SRT6KXLT UPS
Nominal Input Voltage	208V / 240V AC
Input Frequency	40–70Hz, auto-sensing
Input Connection	Hardwired
Input Wiring	L1, L2
Rated Input Current at Full Load	33A
Recommended External Input Circuit Breaker	50A, 2-Pole
Typical Input Wire Size	6 AWG
Input Voltage Range for Main Operation	160–275V AC
Adjustable Input Voltage Range	100–275V AC at half load

Output – SRT6KXLT UPS
Output Power Capacity	6000W / 6000VA
Maximum Configurable Power	6000W / 6000VA
Nominal Output Voltage	208V / 240V AC
Output Frequency	50/60Hz ±3Hz
Output Waveform	Sine Wave
Output Voltage Distortion	Less than 2%
Output Connection	Hardwired output box
Rated Output Current at Full Load	29A
Bypass	Internal Bypass - Automatic and Manual
Transfer Architecture	Double Conversion Online
Controllable Outlet Groups	(3)
Load Shedding	Yes
Runtime-Based Load Shedding	Yes
Overload-Based Load Shedding	Yes

SURT003 Isolation / Step-Down Transformer
Transformer Type	Isolation / Step-Down Transformer
Nominal Transformer Input Voltage	208V / 220–240V AC
Typical Input Voltage with SRT6KXLT	208V / 240V AC
Transformer Input Voltage Range	170–280V AC
Transformer Input Voltage Selection	208V / 240V
Maximum Input Service Current	30A
Transformer Input Connection	NEMA L6-30P
Transformer Input Cord Length	3 ft
Line Frequency	45–65Hz
Transformer Output Voltage with 208V Input	240V / 208V / 120V
Transformer Output Voltage with 240V Input	240V / 208V / 120V
Transformer Maximum Output	4800W / 4800VA

SURT003 Output Receptacles
Output Receptacle Types	(4)
Output Receptacles NEMA 5-20R	(8) NEMA 5-20R T-Slot, 120V
Output Receptacles NEMA L6-20R	(2) NEMA L6-20R
Output Receptacles NEMA L6-30R	(1) NEMA L6-30R
Output Receptacles NEMA L14-30R	(1) NEMA L14-30R
Total Transformer Output Outlets	(12)
120V Output Outlets	(8) NEMA 5-20R T-Slot
208V / 240V Output Outlets	(2) NEMA L6-20R, (1) NEMA L6-30R, (1) NEMA L14-30R
Transformer Output Circuit Breakers	Yes
Transformer Input Circuit Breaker	Yes

Batteries & Runtime
Battery Type	Sealed, Maintenance-Free Valve-Regulated Lead-Acid (VRLA)
Internal Battery Modules	(2)
Replacement Battery	APCRBC140
Battery Module Voltage	96V DC each
Total UPS Battery Voltage	192V DC
Battery Capacity	5Ah per battery module
Hot-Swappable Battery Modules	Yes
Typical Backup Time at Half Load	12.5 Minutes (3000W)
Typical Backup Time at Full Load	4.5 Minutes (6000W)
Typical Recharge Time	1.5 Hours
Extendable Runtime	Yes
External Battery Pack Compatible	SRT192BP / SRT192RMBP
Maximum External Battery Packs	Up to (10) XLBPs automatically recognized
XLBP Connection	External battery power and communication connector
XLBP Cable Length	19.7 in (500 mm)
Battery Life	Typically 2–5 years

Communications & Management
Network Management	Built-In
Network Management Interface	Integrated Network Management Interface
Compatible Network Management Cards	AP9640, AP9641, AP9643,AP9631
Network Port	10/100/1000 Base-T Ethernet
Console Port	Yes
SmartSlot	Yes
Available SmartSlot Quantity	(1)
Serial Communication	Yes
USB Communication	Yes
USB Host Port	Yes
Universal I/O Port	Yes
Emergency Power Off (EPO)	Yes
Temperature Sensor Support	AP9335T
Temperature / Humidity Sensor Support	AP9335TH
Relay I/O Support	AP9810
Web-Based Management	Yes
IPv6 Support	Yes
HTTP / HTTPS	Supported
SNMP	SNMPv1 / SNMPv3
Telnet / SSH	Supported
FTP / SCP	Supported
Modbus TCP	Supported
BACnet	Supported
DHCP / BOOTP	Supported
RADIUS	Supported
Syslog	Supported
EcoStruxure IT	Supported
PowerChute Network Shutdown	Supported
Event Logging	Yes
Data Logging	Yes
Email Notifications	Supported
SNMP Trap Notifications	Supported
Remote UPS Control	Supported
Scheduled Self-Test	Supported
Remote Graceful Shutdown	Supported
Firmware Management	Supported

User Interface, Alerts & Controls
Front Panel Display	Multifunction LCD Status and Control Console
LCD Configuration	Yes
UPS Status Monitoring	Yes
Input / Output Monitoring	Yes
Load Monitoring	Yes
Battery Status Monitoring	Yes
Runtime Monitoring	Yes
Bypass Status	Yes
Fault Monitoring	Yes
Audible Alarm	Yes
Audible Alarm Control	Enable / Disable
On-Battery Alarm	Yes
Low-Battery Alarm	Yes
Overload Alarm	Yes
Battery Replacement Notification	Yes
Battery Replacement Reminder	Configurable
IP Address Configuration	Manual / DHCP / BOOTP
Self-Test	Supported
Diagnostics	Supported

Power Management Features
Double Conversion Online Operation	Yes
Automatic Bypass	Yes
Manual Bypass	Yes
Controllable Outlet Groups	(3)
Remote Outlet Group Control	Yes
Load Shedding	Yes
Runtime-Based Load Shedding	Yes
Overload-Based Load Shedding	Yes
Energy Meter	Yes
Scheduled Self-Test	Yes
Remote Shutdown	Yes
Extended Runtime	Yes
Automatic XLBP Recognition	Yes
Environmental Monitoring	Supported

Surge Protection & Filtering
Surge Energy Rating	480 Joules
Noise Filtering	Full-Time Multi-Pole Noise Filtering

Physical – SRT6KXLT UPS
UPS Form Factor	Tower
UPS Height	6.9 in (17.4 cm)
UPS Width	17.0 in (43.2 cm)
UPS Depth	28.3 in (71.94 cm)
UPS Net Weight with Batteries	132 lb (60 kg)
Shipping Height	14.6 in (37 cm)
Shipping Width	24 in (61 cm)
Shipping Depth	37.8 in (96 cm)
Shipping Weight	147.4 lb (67 kg)

Physical – SURT003 Transformer
Transformer Form Factor	Tower / Rack-Convertible
Rack Compatibility	Standard 19-inch Rack
Rack Installation	Transformer installs directly above the UPS
Compatible Transformer Rail Kit	SURTRK2
Rail Kit Included	No, sold separately

Environmental
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	5°F to 113°F (-15°C to 45°C)
Operating Relative Humidity	0–95%, non-condensing
Operating Altitude	0–10,000 ft (0–3,000 m)
Storage Altitude	0–50,000 ft (0–15,000 m)
International Protection Code	IP20
Pollution Degree	2
Installation Environment	Indoor Use

General
UPS Technology	Smart-UPS On-Line SRT
Isolation Transformer	Yes
Step-Down Transformer	Yes
120V Output Capability	Yes, through SURT003
208V Output Capability	Yes
240V Output Capability	Yes
Extended Runtime Capability	Yes
External Battery Support	SRT192BP / SRT192RMBP
Remote Network Management	Yes, Built-In
Environmental Sensor Support	Yes
Emergency Power Off	Yes
Firmware Upgradeable	Yes

Conformance
FCC Compliance	FCC Class A
Overvoltage Category	Category II
Applicable Power Distribution System	TN Power System

Condition & Warranty
UPS Condition	Refurbished
Transformer Condition	Refurbished
Batteries	New Batteries
Warranty	1 Year Full Replacement Warranty
