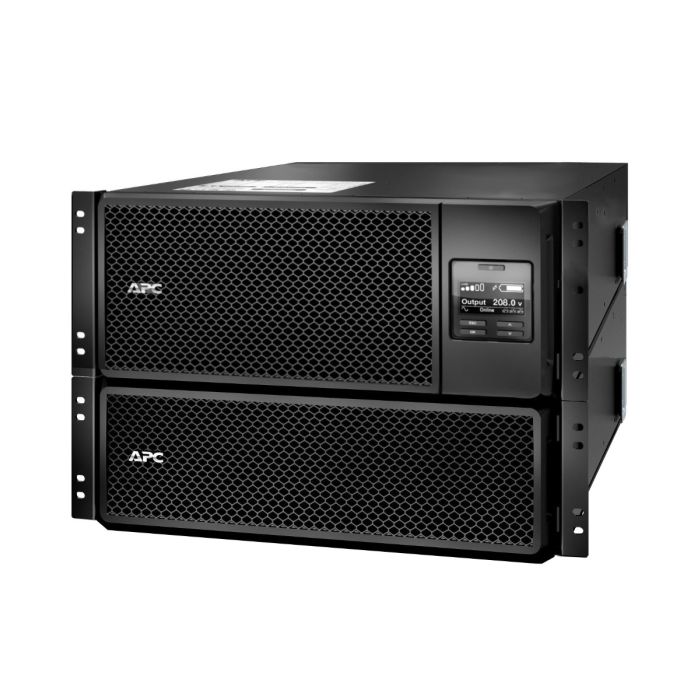

APC SRT6KRMXLT + SRT192RMBP Smart-UPS Online 6kVA 6kW Double Conversion 208/240V – Refurb
APC Smart-UPS SRT 6000VA 6000W RM 4U 208V/240V 60A + (1) EBM
Model: SRT6KRMXLT + (1) SRT192RMBP
Input: Hard wire 3-wire (2P + E)
Output: (3) L6-30R, (2) L6-20R
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS & External Battery Pack
1 Year Warranty Included
$4,699.99
$4,499.99
In stock
Manufacturer: APC
Combo Model: APC Smart-UPS SRT 6000VA & 5kVA/6kVA, 60A,192V (w/ 1 EBM)
·        Condition: New Batteries, Refurbished UPS units
·        Part Numbers: SRT6KRMXLT (6000VA) & SRT192RMBP (5kVA/6kVA - 192V)
·        Maximum Output:
o   SRT6KRMXLT: 6000W / 6000VA
o   SRT192RMBP: 5000W / 6000VA
·        Typical Backup Time with 1 EBM (at Half Load):
o   SRT6KRMXLT: 8.3 minutes (3000 Watts)
o   SRT192RMBP: 13 minutes (3000 Watts with 1 EBM)
·        Typical Backup Time with 1 EBM (at Full Load):
o   SRT6KRMXLT: 2.3 minutes (6000 Watts)
o   SRT192RMBP: 5 minutes (6000 Watts with 1 EBM)
·        Warranty: 1-year full replacement warranty for both units
·        Batteries: New Lead-Acid batteries for both units
·        Included: (1) UPS SRT6KRMXLT + (1) External Battery Module (EBM) for extended runtime SRT192RMBP
APC Smart-UPS SRT 6000VA & 5kVA/6kVA 192V - User Manual
Â
SRT6KRMXLT & SRT192RMBP - APC Smart-UPS SRT 6000VA & 5kVA/6kVA 192V Specifications:
Key Features:
|
Main Input Voltage |
208V |
|
Other Input Voltage |
240V |
|
Main Output Voltage |
208V |
|
Other Output Voltage |
240V |
|
Rated Power in W |
6kW |
|
Rated Power in VA |
6kVA |
|
Output Power Capacity |
6.0kW / 6.0kVA |
||||
|
Rack Height |
4U |
||||
|
Output Connections |
|
||||
|
Nominal Output Voltage |
208V |
||||
|
Nominal Input Voltage |
208V |
||||
|
Input Connections |
|
Output:
|
Max Configurable Power (Watts) |
6.0kW / 6.0kVA |
|
Output Voltage Distortion |
Less than 2 % |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz Sync to mains |
|
Other Output Voltages |
240 |
|
Load Crest Factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform type |
Sine wave |
|
Bypass |
Internal Bypass (Automatic and Manual) |
Input:
|
Input frequency |
40 - 70 Hz Auto-sensing |
|
Input voltage range for main operations |
100 - 275 Adjustable (half load), 160 - 275V |
|
Other Input Voltages |
240 |
Batteries & Runtime:
|
Battery type |
Lead-acid battery |
|
Typical Recharge Time |
1.5 hour(s) |
|
Nominal Battery Voltage |
192 V |
|
Replacement Battery |
APCRBC140 |
|
Expected Battery Life (years) |
3 - 5 |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
579 Watts |
|
Extendable Run Time |
1 |
Communications & Management:
|
Interface Port(s) |
RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
|
Control Panel |
Multifunction LCD status and control console |
|
Audible Alarm |
Audible and visible alarms prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
|
Available SmartSlotâ„¢ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 Joules |
Physical:
|
Maximum Height |
6.85 inches (174mm, 17.4cm)
|
|
Maximum Width |
17.01 inches (432mm, 43.2cm) |
|
Maximum Depth |
28.31 inches (719mm, 71.9cm) |
|
Net Weight |
134.99 lbs. (61.23kg) |
|
Shipping Weight |
150.0 lbs. (68.04kg) |
|
Shipping Height |
14.57 inches (370mm, 37.0cm) |
|
Shipping Width |
24.02 inches (610mm, 61.0cm) |
|
Shipping Depth |
37.8 inches (960mm, 96.0cm) |
|
Color |
Black |
Environmental:
|
Operating Temperature |
32 - 104 °F (0 - 40 °C)
|
|
Operating Relative Humidity |
0 - 95%Â (Non-condensing) |
|
Operating Elevation |
0 - 10000ft (0 - 3048meters) |
|
Storage Temperature |
-15 - 45°C |
|
Storage Relative Humidity |
0 - 95%Â (Non-condensing) |
|
Storage Elevation |
0 - 50000ft 0 - 15240meters |
|
Audible noise at 1 meter from surface of unit |
55.0dBA |
|
Online thermal dissipation |
1402.0BTU/hr |
Â
APC Smart-UPS SRT 5kVA/6kVA 192V (SRT192RMBP) - Key Specifications:
Â
|
Main: |
 |
|
Number of Rack Units |
3U |
|
Battery Type |
Lead-Acid battery |
|
 |
 |
|
Batteries & Runtime: |
 |
|
Battery Slots Empty |
0 |
|
Included Battery Modules |
0 |
|
Device Mounting |
Standalone battery stack (rack-mounted) |
|
Battery Voltage |
192V |
|
RBC Quantity |
2 |
|
Replacement Battery |
APCRBC140 |
|
 |
 |
|
Physical: |
 |
|
Color |
Black |
|
Height |
5.12 in (13 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
26.88 in (68.27 cm) |
|
Net Weight |
200.62 lb (91 kg) |
|
Mounting Mode |
Rack-mounted |
|
 |
 |
|
Conformance |
 |
|
Standards |
OSHPD |
|
 |
 |
|
Environmental |
 |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Operating Altitude |
0 - 10,000 ft |
|
Relative Humidity |
0 - 95% (Non-condensing) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50,000 ft (0.00 - 15,240 m) |
|
Storage Relative Humidity |
0 - 95% (Non-condensing) |
