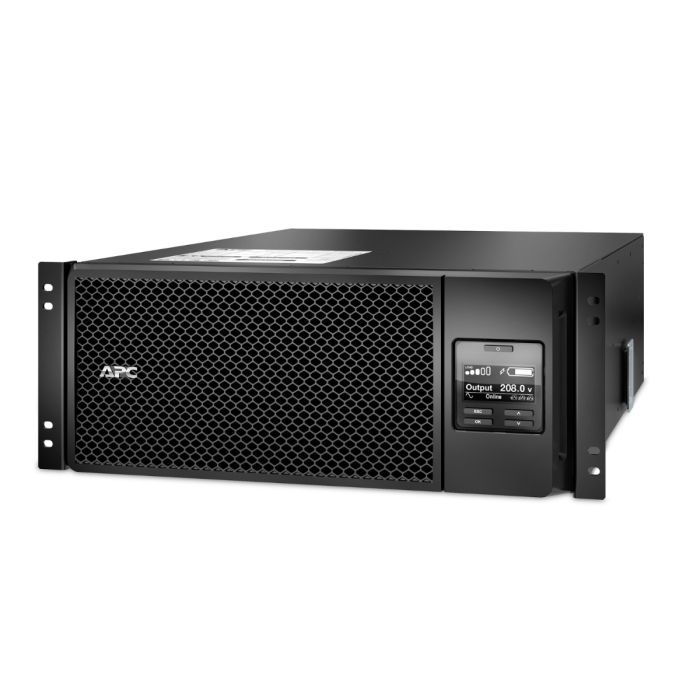

APC Smart-UPS SRT 6000VA 6000W RM 4U 50A 208V/240V SRT6KRMXLT - Refurbished
APC Smart-UPS SRT 6000VA 6000W RM 4U 208V/240V 50AÂ
Model: SRT6KRMXLT
Input: NEMA L6-30P
Output: Output: Hard wire 3-wire (2P + E) 1, (2) NEMA L6-20R, (3) NEMA L6-30R
Double Conversion Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$3,299.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 6000VA 208V RM 4U, 208V
Condition: New batteries, refurbished UPS
Part Number: SRT6KRMXLT
Maximum output: 6kW / 6kVA
Typical backup time at half load: 8.3 minutes (3000 Watts)
Typical backup time at full load: 2.3 minutes (6000 Watts)
Warranty: 1 year full replacement warranty
Included: (1) UPS SRT6KRMXLT
Not Included: Bezel
APC Smart-UPS SRT 6kVA 6kW SRT6KRMXLT - User Manual
SRT6KRMXLT - APC Smart-UPSRT Specifications:
Main:
|
Main Input Voltage |
208V |
||||
|
Other Input Voltage |
240V |
||||
|
Main Output Voltage |
208V |
||||
|
Other Output Voltage |
240V |
||||
|
Rated Power in W |
6kW |
||||
|
Rated Power in VA |
6kVA |
||||
|
Output Connection Type |
|
||||
|
Output Connector Type |
|
||||
|
Number of Rack Unit |
4U |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Included Battery Modules |
0 |
|
Typical Recharge Time |
1.5 h |
|
RBC Quantity |
2 |
|
Battery Voltage |
+/-192 V (split battery referenced to neutral) |
|
Battery Charge Power (Watts) |
1191 W rated |
|
Battery Power in VAH |
1799 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC140 |
|
Battery Option |
SRT192RMBP |
|
Extendable Run Time |
1 |
Â
General:
|
Product Web Sub-Family |
High density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
6.85 in (17.4 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
28.31 in (71.9 cm) |
|
Net Weight |
134.99 lb(US) (61.23 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Horizontal |
Input:
|
Efficiency at Full Load |
100 - 275 V adjustable (half load) |
|
Input Frequency |
40 - 70 Hz auto-sensing |
|
Number of Input Connectors |
1 Hard Wire 3-wire (2PH + G) |
Output:
|
Max Configurable Power (Watts) |
6kW |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest factor |
3 : 1 |
|
Topology |
Double Conversion Online |
|
Waveform Type |
Sine wave |
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum configurable power in VA |
6kVA |
Conformance:
|
Product Certifications |
ENERGY STAR V2.0 (USA) |
Environmental:
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
1402 Btu/h |
|
IP degree of protection |
IP20 |
Communications & Management:
|
Free Slots |
1 |
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
