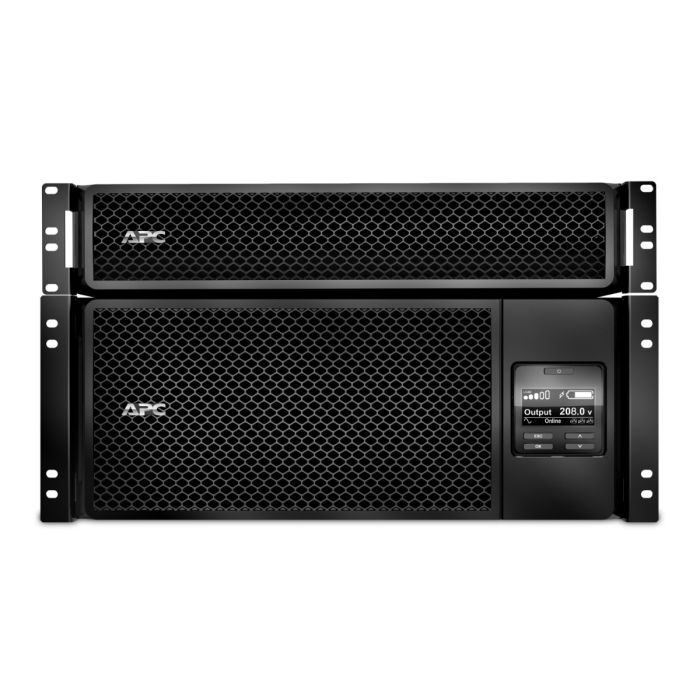

APC Smart-UPS SRT 6kVA, Step-Down Transformer 208V to 120V SRT6KRMXLT-5KTF - Refurbished
APC Smart-UPS SRT 6000VA 6000W RM 6U 208V with 120V Step-Down Transformer
Model: SRT6KRMXLT-5KTF
Input: Hardwire 3-Wire (2PH + G), 208/240V
Output: (12) NEMA 5-20R, (2) NEMA L6-20R, (2) NEMA L6-30R, (1) Hardwire 3-Wire (2PH + G)
Maximum Output: 6000VA / 6000W
Double-Conversion Online UPS - Pure Sine Wave Output
SRT5KRMTF 208V-to-120V 2U Step-Down Transformer Included
Internal Automatic & Manual Bypass
Network Management + SmartSlot
Extended Runtime Capability
New Batteries, Refurbished UPS & Step-Down Transformer
1 Year Full Replacement Warranty Included
$3,649.99
In stock
Manufacturer: APC
Model: APC Smart-UPS SRT 6000VA 6000W Online RM 6U with 208V-to-120V Step-Down Transformer
Condition: New Batteries, Refurbished UPS & transformer
Part Number: SRT6KRMXLT-5KTF
Maximum Output: 6000W / 6000VA
Input: Hardwire 3-Wire (2P + E), 208/240V
Output Voltage: 120V / 208V / 240V
Output: (12) NEMA 5-20R, (2) NEMA L6-20R, (2) NEMA L6-30R + Hardwire 3-Wire (2P + E)
Topology: Double-Conversion Online UPS
Waveform: Pure Sine Wave Output
Transformer: SRT5KRMTF 208V-to-120V Step-Down Transformer
Network Management: Network Management Card 3 with Environmental Monitoring Pre-Installed
Typical Backup Time at Half Load: 8.16 minutes (3000W)
Typical Backup Time at Full Load: 2.17 minutes (6000W)
Warranty: 1 Year Full Replacement Warranty
Includes: (1) SRT6KRMXLT UPS + (1) SRT5KRMTF Step-Down Transformer
Description: The APC SRT6KRMXLT-5KTF combines a 6000VA / 6000W Smart-UPS SRT Online UPS with an SRT5KRMTF 208V-to-120V step-down transformer, providing 120V, 208V, and 240V power for servers, network equipment, and other critical systems. It features double-conversion online topology, pure sine wave output, internal automatic/manual bypass, LCD monitoring, and a pre-installed Network Management Card 3 with environmental monitoring. This configuration provides (12) NEMA 5-20R, (2) NEMA L6-20R, (2) NEMA L6-30R, and hardwire output connections. Refurbished with new UPS batteries and backed by a 1 Year Full Replacement Warranty.
Â
Â
APC Smart UPS SRT 6000VA w/ 208V to 120V - SRT6KRMXLT-5KTF - User's Manual
Â
Â
Â
SRT6KRMXLT-5KTF -Â APC Smart-UPS SRT 6000VA 6000W w/ Step-Down Transformer Specifications:
| Main | Â |
| Manufacturer | APC |
| Model | SRT6KRMXLT-5KTF |
| UPS Model | SRT6KRMXLT |
| Transformer | SRT5KRMTF 208V-to-120V Step-Down Transformer |
| Product Series | Smart-UPS SRT / Smart-UPS On-Line |
| Product Type | UPS with Step-Down Transformer |
| Rated Power | 6000VA / 6000W |
| Main Input Voltage | 208V AC, Single-Phase |
| Other Input Voltage | 240V AC, Single-Phase |
| Output Voltage | 120V / 208V / 240V, Single-Phase |
| UPS Topology | Double-Conversion Online |
| Waveform Type | Pure Sine Wave |
| Form Factor | Rackmount |
| Total Rack Height | 6U |
| UPS Rack Height | 4U |
| Transformer Rack Height | 2U |
| Bypass Type | Internal Automatic and Manual Bypass |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 2% |
| Emergency Power Off (EPO) | Yes |
| Network Management | Network Management Card 3 with Environmental Monitoring |
| SmartSlot | (1) Available Expansion Slot |
| Condition | New Batteries, Refurbished UPS & Transformer |
| Warranty | 1 Year Full Replacement Warranty |
| Includes | (1) SRT6KRMXLT UPS + (1) SRT5KRMTF Step-Down Transformer |
| Â | Â |
| Input | Â |
| Nominal Input Voltage | 208V / 240V AC |
| Input Phase | Single-Phase |
| Input Connection | Hardwire 3-Wire (2P + E) |
| Input Frequency | 40–70 Hz Auto-Sensing |
| Input Voltage Range for Main Operation | 160–275V |
| Adjustable Input Voltage Range | 100–275V at Half Load |
| Â | Â |
| Output | Â |
| Maximum Output Capacity | 6000VA |
| Maximum Output Power | 6000W |
| Output Voltage | 120V / 208V / 240V |
| Output Phase | Single-Phase |
| 120V Output Receptacles | (12) NEMA 5-20R |
| 208/240V Output Receptacles | (2) NEMA L6-20R, (2) NEMA L6-30R |
| Hardwire Output | (1) Hardwire 3-Wire (2P + E) |
| Output Frequency | 50/60 Hz ±3 Hz Sync to Mains |
| Output Waveform | Pure Sine Wave |
| Output Voltage Distortion | Less than 2% |
| Crest Factor | 3:1 |
| Transfer Time | 0 ms |
| Bypass | Internal Automatic and Manual Bypass |
| Â | Â |
| Step-Down Transformer | Â |
| Transformer Model | SRT5KRMTF |
| Transformer Type | Step-Down Transformer |
| Transformer Function | Provides 120V Output from High-Voltage UPS Output |
| Transformer Rack Height | 2U |
| 120V Output Connections | (12) NEMA 5-20R |
| Combined System | UPS + Transformer Rackmount Configuration |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Lead-Acid Battery |
| Battery Voltage | 192V DC |
| Replacement Battery | APCRBC140 |
| RBC Quantity | 1 |
| Typical Recharge Time | 1.5 Hours |
| Battery Life | 3–5 Years |
| Battery Charging Power | 579W Rated |
| Extendable Runtime | Yes |
| External Battery Pack Support | Yes |
| Typical Backup Time at Half Load | 8.16 Minutes (3000W) |
| Typical Backup Time at Full Load | 2.17 Minutes (6000W) |
| Removable Battery | User Replaceable |
| Â | Â |
| Communications & Management | Â |
| Control Panel | Multifunction LCD Status and Control Console |
| Network Management | Embedded Ethernet Network Management |
| Network Management Card | Network Management Card 3 with Environmental Monitoring Pre-Installed |
| Network Card Generation | APC Network Management Card 3 (NMC3) |
| SmartSlot | Yes |
| Available SmartSlot | (1) Available Expansion Slot |
| Compatible Network Management Cards | APC NMC2: AP9630, AP9631; APC NMC3: AP9640, AP9641 |
| Current Generation Network Cards | AP9640 / AP9641 (NMC3) |
| Legacy Compatible Network Cards | AP9630 / AP9631 (NMC2) |
| Environmental Monitoring | Yes – Supported by Pre-Installed NMC3 |
| Temperature Probe | Included |
| Ethernet Network Connection | RJ45 10/100 Base-T |
| Web-Based Management | Supported |
| SNMP Network Management | Supported |
| Remote UPS Monitoring | Supported |
| Remote UPS Management | Supported |
| Event & Alarm Monitoring | Supported |
| Battery Monitoring | Supported |
| Input / Output Power Monitoring | Supported |
| Load Monitoring | Supported |
| Serial Communication | Yes |
| USB Communication | Yes |
| Emergency Power Off (EPO) | Yes |
| Audible & Visible Alarms | Prioritized by Severity |
| Â | Â |
| Surge Protection & Filtering | Â |
| Surge Energy Rating | 480 Joules |
| Â | Â |
| Physical | Â |
| Color | Black |
| Total Rack Height | 6U |
| Height | 10.4 in (263 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 28.3 in (719 mm) |
| Product Weight | 230.008 lb (104.33 kg) |
| Mounting Mode | Rack-Mounted |
| Mounting Position | Horizontal |
| Mounting Preference | Lower |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | 5–113°F (-15–45°C) |
| Operating Relative Humidity | 0–95% Non-Condensing |
| Storage Relative Humidity | 0–95% Non-Condensing |
| Operating Altitude | 0–10,000 ft |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Acoustic Level | 55 dBA |
| Heat Dissipation | 1402 BTU/hr |
| IP Protection | IP20 |
| Â | Â |
| Conformance | Â |
| Product Certifications | ENERGY STAR V2.0 (USA), FCC Part 15 Class A, UL 1778 |
