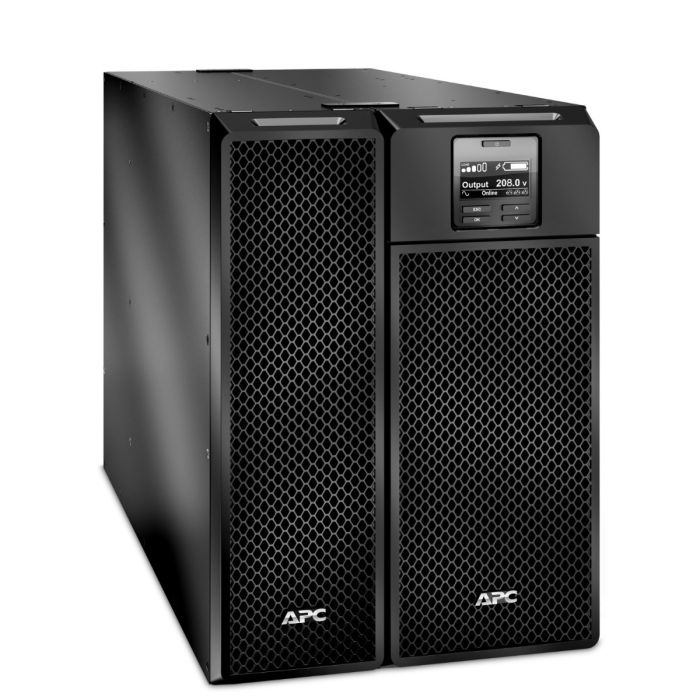

APC Smart UPS SRT 6kVA w/ 208/240V to 120V Step-Down Transformer SRT6KXLT-5KTF - Refurbished
APC Smart-UPS SRT 6000VA 6000W 208/240V to 120V Step-Down Transformer SRT5KTF
Model: SRT6KXLT-5KTF
Input: Hard Wire 3-wire (2PH + G)
Output: (8) NEMA 5-20R Battery, (1) NEMA L14-30R Battery, (3) NEMA L6-30R Battery, (4) NEMA L6-20R Battery, (1) Hard Wire 3-wire (2PH + G)
Double Conversion Online UPS - Sinewave Output
New Batteries, Refurbished UPS & TransformerÂ
1 Year Warranty Included
$3,499.99
Back Order
Manufacturer:Â APC
Model: APC Smart‑UPS SRT 6000VA with 208/240V to 120V Step‑Down Transformer SRT6KXLT‑SRT5KTF
Condition: Refurbished UPS & Transformer
Part Number:Â SRT6KXLT-5KTF
Maximum output:Â 6.0 KWatts / 6.0 kVA
Typical backup time at half load: 8.16 minutes (3.0 KWatts)
Typical backup time at full load: 2.17 minutes (6.0 KWatts)
Output Waveform:Â Sine wave
Warranty:Â 1 Year Full Replacement Warranty
Â
Â
SRT6KXLT-5KTFÂ Specifications:
Output:
|
Output power capacity |
6.0 KWatts / 6.0 kVA |
|
Max Configurable Power |
6.0 KWatts / 6.0 kVA |
|
Nominal Output Voltage |
120V , 208V |
|
Output Voltage Distortion |
Less than 2% |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz |
|
Waveform type |
Sine wave |
|
Output Connections |
(8) NEMA 5-20R - Battery Backup  (1) Hard Wire 3-wire (2PH + G) (1) NEMA L14-30R - Battery Backup (3) NEMA L6-30R - Battery Backup (4) NEMA L6-20R - Battery Backup |
|
Bypass |
Internal Bypass (Automatic and Manual) |
Input:
|
Nominal Input Voltage |
208V |
|
Input Frequency |
40 - 70 Hz (auto sensing) |
|
Input Connections |
Hard Wire 3-wire (2PH + G) |
|
Input voltage adjustable range for mains operation |
100 - 275 (half load) V |
|
Other Input Voltages |
240 |
Batteries & Runtime:
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
1.5 hours |
|
Replacement Battery |
APCRBC140 |
|
RBC Quantity |
1 |
|
Extendable Run Time |
Yes – supports external battery packs (SRT192BP) |
|
Extended Run Options |
Up to 10 external battery packs |
|
Typical Backup Time at Half Load |
8.16 minutes (3.0 KWatts) |
|
Typical Backup Time at Full Load |
2.17 minutes (6.0 KWatts) |
Communications & Management:
|
Interface Port(s) |
RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB |
|
Control panel |
Multi-function LCD status and control console |
|
Audible Alarm |
Audible and visible alarms prioritized by severity |
|
Emergency Power Off (EPO) |
Yes |
|
Available SmartSlotâ„¢ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge energy rating |
480 Joules |
Physical:
|
Maximum Height |
17.0" (43.2cm) |
|
Maximum Width |
11.95" (30.4cm) |
|
Maximum Depth |
28.32" (71.9cm) |
|
Net Weight |
260.0lbs (117.93kg) |
