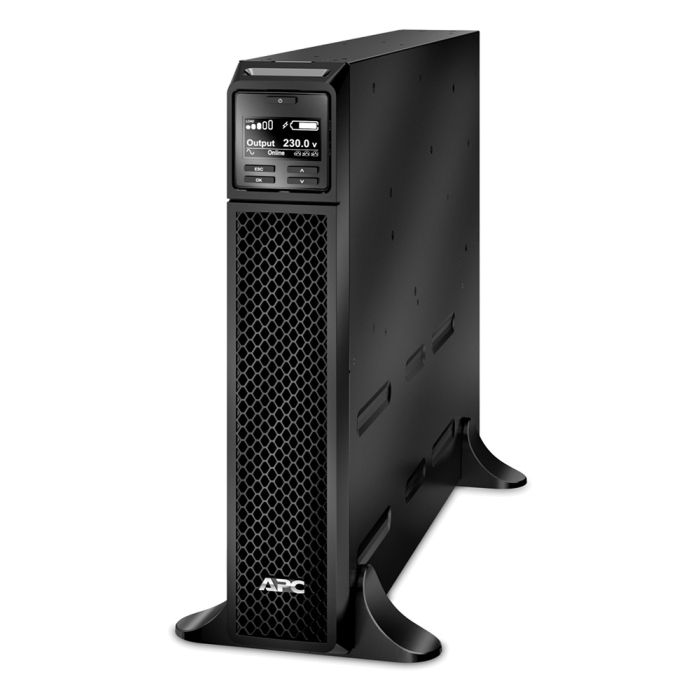

APC Smart-UPS SRT 3000VA 2700W Tower 230V SRT3000XLI - Refurbished
APC Smart-UPS SRT 3kVA 2.7kW Tower 230V
Model: SRT3000XLI
Input: C20 (230V - 15A)
Output: (8) C13, (2) C19, (20 Jumpers
Double Conversion, Online UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,499.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS SRT 3000VA, 2700W, 230V, RM, 2U, Doube Conversion smart Online UPS
Condition: New batteries, refurbished UPS
Part Number: SRT3000XLI
Maximum output: 2700W / 3000VA
Typical backup time at half load: 11.48 minutes (1350 Watts)
Typical backup time at full load: 3.58 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS SRT On-Line 3000VA 2700W Tower SRT3000XLI Manual
SRT3000XLI - APC Smart-UPS On-Line Specifications:
Main:
|
Main Input Voltage |
230V |
|||||
|
Other Input Voltage |
220V |
|||||
|
Main Output Voltage |
230V |
|||||
|
Other Input Voltage |
220V |
|||||
|
Rated power in W |
2700W |
|||||
|
Rated power in VA |
3000VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Cable Length |
1.83 m |
|||||
|
Number of Cables |
3 |
|||||
|
Battery Type |
Lead-acid battery |
Batteries & Runtime:
|
Battery Recharge Time |
3h |
|
Number of Battery Replacement Quantity |
1 |
|
Additional Information |
Configurable for 220 : 230 or 240 nominal output voltage |
|
Battery Voltage |
96V |
|
Battery Charge Power (Watts) |
168W rated |
|
Battery Power in VAH |
505 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC152 |
|
Battery Option |
SRT96BP 1 1515 VAh |
|
Extended Runtime |
1 |
General:
|
Product Web Sub-family |
High Density |
|
Number of Power Module Free Slots |
0 |
|
Number of Power Module Filled Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
43.2 cm |
|
Width |
8.5 cm |
|
Depth |
63.5 cm |
|
Net Weight |
31.3 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted with kit |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
|
Mounting Position |
Vertical |
Input:
|
Network Frequency |
40 - 70 Hz auto-sensing |
|
Input Voltage Limits |
100 - 275V adjustable (half load) |
Output:
|
Maximum Configurable Power in W |
2700W |
|
Harmonic Distortion |
Less than 2% |
|
Output Frequency |
50/60 Hz +/- 3 Hz sync to mains |
|
Crest Factor |
3:1 |
|
UPS Type |
Double Conversion Online |
|
Wave Type |
Sine wave |
|
Bypass Type |
Internal bypass (automatic and manual) |
|
Maximum Configurable Power in VA |
3000VA |
Conformance:
|
Product Certifications |
CE |
|
Marking |
CE Mark |
|
Standards |
EN/IEC 62040-1:2019/A11:2021 |
Environmental:
|
Ambient Air Temperature for Operation |
0 - 40°C
|
|
Relative Humidity |
0 - 95% Non-condensing |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Storage |
-15 - 45°C) |
|
Storage Relative Humidity |
0 - 95 % Non-condensing |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
703 Btu/h |
|
IP Degree of Protection |
IP20 |
Communications & Management:
|
Free Slots |
1
|
|
Alarm |
Audible and visible alarms : prioritized by severity |
|
Emergency Power Off |
Yes |
Surge Protection and Filtering:
|
Surge Energy Rate |
340 J
|
