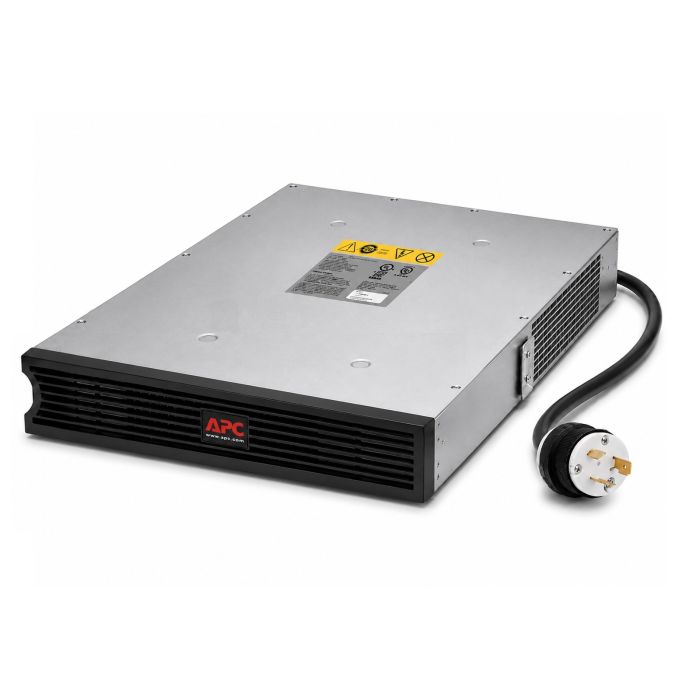

Main image Click to view image in fullscreen APC Smart-UPS 5000VA Step-Down Transformer 30A RM 2U 208V to 120V, AP9627 - Refurbished

APC Smart-UPS 5000VA Step-Down Transformer 30A RM 2U 208V to 120V, AP9627 - Refurbished

APC Smart-UPS Step-Down Transformer RM 2U 208V to 120V
Model: AP9627
Input: NEMA L6-30P (30A, 208V)
Output: (4) NEMA L5-20R (120V)

Capacity: 5000VA

Rackmount 2U Design
Refurbished Step-down transformer
1 Year Full Replacement Warranty Included

Additional Warranty

1 Year Included

2 Year + $96.00

3 Year + $168.00

In stock

Quantity

Manufacturer: APC
Model: APC Smart-UPS RM 208V to 120V, Step-Down Transformer
Condition: Refurbished Transformer
Part Number: AP9627
Warranty: 1 Year Full Replacement Warranty

Description: The APC AP9627 Smart-UPS Rackmount Step-Down Transformer converts 208V input power to 120V output, allowing compatible APC Smart-UPS systems to support 120V equipment in 208V environments. Designed for rackmount installations, the AP9627 provides up to 5000VA of power capacity and features four NEMA L5-20R battery-backed output receptacles. Ideal for servers, networking equipment, telecommunications systems, and other critical applications requiring 120V output from a 208V UPS source. Refurbished and backed by a 1 Year Full Replacement Warranty.

APC Smart-UPS RM Step-Down Transformer AP9627 - User Manual

AP9627 - APC Smart-UPS RM Step-Down Transformer Specifications:

Key Features:

Product Type	Rackmount Step-Down Transformer
Model	AP9627
Manufacturer	APC
Capacity	5000VA
Rack Height	2U
Nominal Input Voltage	208V
Nominal Output Voltage	120V
Input Connection Type	NEMA L6-30P
Output Connection Type	(4) NEMA L5-20R
Overload Protection	Yes
Cord Length	2 ft (0.61 m)
Condition	Refurbished
Warranty	1 Year Full Replacement Warranty

Input
Input Voltage	208V AC
Input Frequency	60 Hz ± 3 Hz
Input Plug Type	NEMA L6-30P
Maximum Input Current	26A
Number of Power Cords	1
Load Capacity	5000VA

Output
Output Voltage	120V AC
Output Receptacles	(4) NEMA L5-20R
Maximum Total Output Current	20A
Overload Protection	Yes
Battery Backup Support	Yes

Physical
Color	Black
Height	3.5 in (89 mm)
Width	17.5 in (445 mm)
Depth	24.0 in (610 mm)
Net Weight	95 lbs (43.18 kg)
Shipping Weight	110 lbs (50 kg)
Shipping Height	10.0 in (254 mm)
Shipping Width	24.5 in (622 mm)
Shipping Depth	37.5 in (953 mm)
Form Factor	Rackmount
Rack Height	2U
