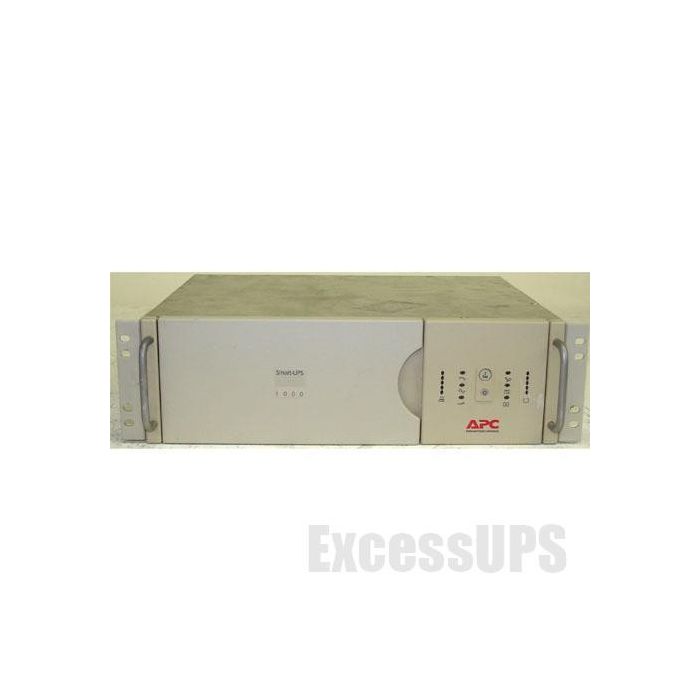

APC Smart-UPS 1000VA Rackmount 3U SU1000RM
APC Smart-UPS 1000VA
SU1000RM
670 Watts / 1000VA,
Input 120V / Output 120V
Refurbished with New Batteries
$159.99
In stock
Manufacturer: APC
Model Description: APC Smart-UPS 1000VA SU1000RM
Condition: Refurbished with Brand New Batteries
Part Number: SU1000RM
Maximum output: 670W / 1000VA
Typical backup time at half load: 20.6 minutes (335 Watts)
Typical backup time at full load: 6.1 minutes (670 Watts)
Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty
The SU1000RM is fully refurbished and comes with fresh new batteries. The APC Smart-UPS 1000VA is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SU1000RM Specifications:
Output:
|
Output power capacity |
670 Watts / 1000 VA |
||
|
Max Configurable Power |
670 Watts / 1000 VA |
||
|
Nominal output voltage |
120V |
||
|
Output Voltage Distortion |
Less than 5% at full load |
||
|
Output Frequency (sync to mains) |
47-53Hz for 50Hz nominal , 57-63Hz for 60Hz nominal |
||
|
Crest Factor |
up to 5 : 1 |
||
|
Waveform type |
Sine wave |
||
|
Output Connections |
|
Input:
|
Nominal input voltage |
120V |
||
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
||
|
Input Connection Type |
|
||
|
Cord Length |
6 feet ( 1.83 meters ) |
||
|
Input voltage range for main operations |
92 - 147 V |
||
|
Input voltage adjustable range for mains operation |
86 - 154 V |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Replacement battery cartridge |
APC Smart UPS 1000 Rack mount 3U SU1000RMNET Replacement Battery Pack RBC6 |
|
RBC™ Quantity |
1 |
|
Typical backup time |
20.6 minutes (335 Watts) |
|
Typical backup time |
6.1 minutes (670 Watts) |
|
Runtime Chart |
Smart-UPS |
Communications and Management:
|
Interface port |
DB-9 RS-232 , SmartSlot |
|
Available Smart Slot Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge:
|
Surge energy rating |
320 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum height |
132.00 mm |
|
Maximum width |
483.00 mm |
|
Maximum depth |
356.00 mm |
|
Net weight |
20.91 KG |
|
Shipping Weight |
26.64 KG |
