Description
Details
Manufacturer: APC

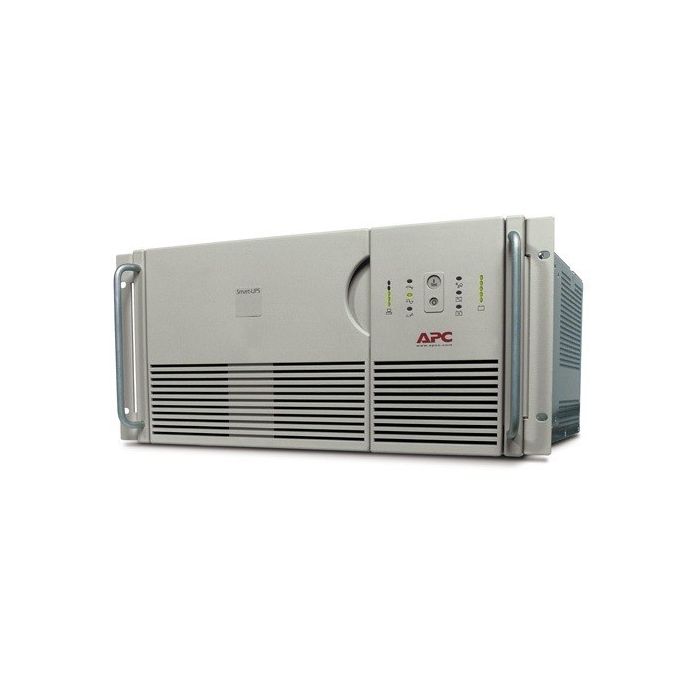

Model: Refurbished APC Smart-UPS 3000VA 120V with New Batteries
Condition: New batteries, refurbished UPS
Part Number: SU3000RM5U
Maximum output: 2250W / 3000VA
Typical backup time at half load: 19.2 minutes (1125 Watts)
Typical backup time at full load: 5.7 minutes (2250 Watts)
Warranty: 1 Year Full Replacement Warranty
APC Smart-UPS 3000VA LCD SU3000RM5U Manual
SU3000RM5U - APC Smart-UPS 3000VA Specifications:
Main:
Main Input Voltage |
120V |
||
Main Output Voltage |
120V |
||
Kw Rating |
2250W |
||
Rated Power in VA |
3000VA |
||
Input Connection Type |
|
||
Output Connection Type |
|
||
Number of Rack Unit |
3U |
||
Cable Length |
8 ft (2.44 m) |
||
Number of Cables |
1 |
||
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
Extendable Run Time |
0 |
Included Battery Modules |
0 |
Battery Slots Empty |
0 |
Typical Recharge Time |
3 h |
RBC Quantity |
1 |
Battery Life |
3…5 year(s) |
Replacement Battery |
RBC12 |
Battery Power in VAH |
590 VAh runtime |
Battery Charge Power (Watts) |
196 W rated |
General:
Number of Power Module Filled Slots |
0 |
Number of Power Module Free Slots |
0 |
Redundant |
No |
Physical:
Color |
Beige |
Height |
5.24 in (13.3 cm) |
Width |
19.02 in (48.3 cm) |
Depth |
25.00 in (63.5 cm) |
Net Weight |
114.24 lb(US) (51.82 kg) |
Mounting Location |
Front |
Mounting Preference |
Lower |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
No |
Input:
Efficiency at Full Load |
86...154 V adjustable |
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Crest Factor |
Up to 5 : 1 |
Harmonic Distortion |
Less than 5 % at full load |
Maximum Configurable Power in VA |
3000VA |
Max Configurable Power (Watts) |
2250W |
Transfer Time |
2ms typical |
Topology |
Line Interactive |
Waveform Type |
Sine wave |
Output Frequency (sync to mains) |
47...53 Hz for 50 Hz nominal sync to mains |
Conformance:
Product Certifications |
CSA |
Environmental:
Acoustic Level |
47 dBA |
Heat Dissipation |
375 Btu/h |
Operating Altitude |
0...10000 ft |
Ambient Air Temperature for Operation |
32…104 °F (0…40 °C) |
Ambient Air Temperature for Storage |
5…113 °F (-15…45 °C) |
Storage Altitude |
0…50000 ft (0.00…15240.00 m) |
Relative Humidity |
0…95% |
Storage Relative Humidity |
0…95% |
Communications & Management:
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
Emergency Power Off (EPO) |
Optional |
Free Slots |
1 |
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection & Filtering:
Surge Energy Rating |
880 J |
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 120V AC |
Output (VA) | 3000VA |
Output Voltage | 120V AC |
PDU Total Outlets | No |
