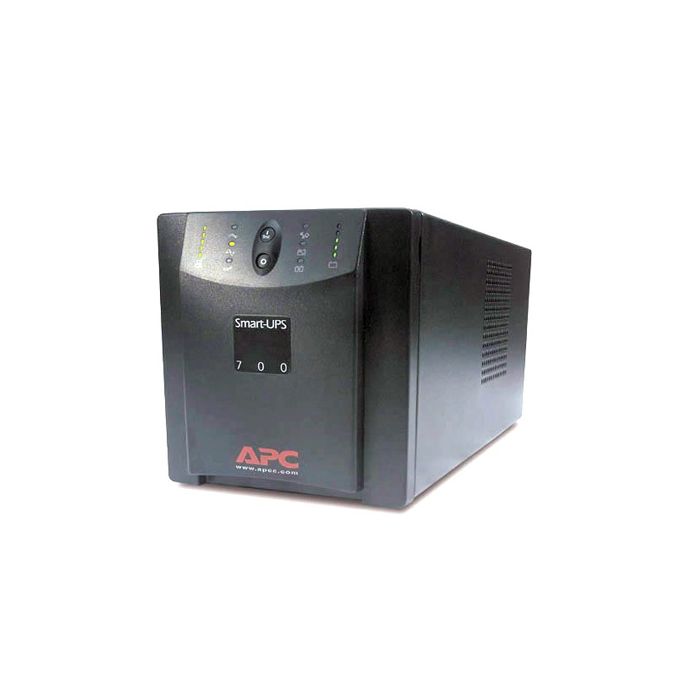

APC Smart-UPS 700VA SU700BX120
APC Smart-UPS 700VA
450 W / 700VA - SU700BX120
(4) Battery Protected Outlets NEMA 5-15R
Refurbished with New Batteries
1 Year Warranty Included
$124.99
Out of stock
Manufacturer: APC
Model Description: APC Smart-UPS 700VA
Condition: Refurbished with Brand New Batteries
Part Number: SU700BX120
Maximum output: 450 W / 700VA
Output Waveform: Sine wave
Warranty: 1 Year Full Replacement Warranty
The SU700BX120 is fully refurbished and comes with fresh new batteries.
The APC Smart-UPS 700VA is covered by a one year replacement warranty. Additional warranty of up to 3 years is available for your convenience.
SU700BX120 Specifications:
Output
|
Output Power Capacity |
450 Watts / 700 VA |
|
|
Max Configurable Power |
450 Watts / 700 VA |
|
|
Nominal Output Voltage |
120V |
|
|
Output Voltage Distortion |
Less than 5% at full load |
|
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
|
|
Crest Factor |
up to 5 : 1 |
|
|
Topology |
Line Interactive |
|
|
Waveform Type |
Sine wave |
|
|
Output Connections |
|
Input
|
Nominal Input Voltage |
120V |
||
|
Input Frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
||
|
Input Connections |
|
||
|
Cord Length |
1.83 meters |
||
|
Input voltage range for main operations |
92 - 147V |
||
|
Input voltage adjustable range for mains operation |
86 - 154V |
Batteries and Runtime
|
Battery Type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
3 hour(s) |
|
Replacement Battery |
RBC5 |
|
RBC™ Quantity |
1 |
Communications and Management
|
Interface Port(s) |
DB-9 RS-232, SmartSlot |
|
Available SmartSlot™ Interface Quantity |
1 |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
Surge Protection and Filtering
|
Surge energy rating |
320 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical
|
Maximum Height |
157.00 mm |
|
Maximum Width |
137.00 mm |
|
Maximum Depth |
358.00 mm |
|
Net Weight |
13.18 KG |
|
Shipping Weight |
14.55 KG |
|
Shipping Height |
279.00 mm |
|
Shipping Width |
273.00 mm |
|
Shipping Depth |
495.00 mm |
|
Color |
Black |
|
Units per Pallet |
24.00 |
Environmental
|
Operating Environment |
0 - 40 °C |
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0-3000 meters |
|
Storage Temperature |
-15 - 45 °C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0-15000 meters |
|
Audible noise at 1 meter from surface of unit |
41.00 dBA |
|
Online Thermal Dissipation |
85.00 BTU/hr |
|
Protection Class |
-- |
