Main image Click to view image in fullscreen SBPSU10K30FC1M1-WP

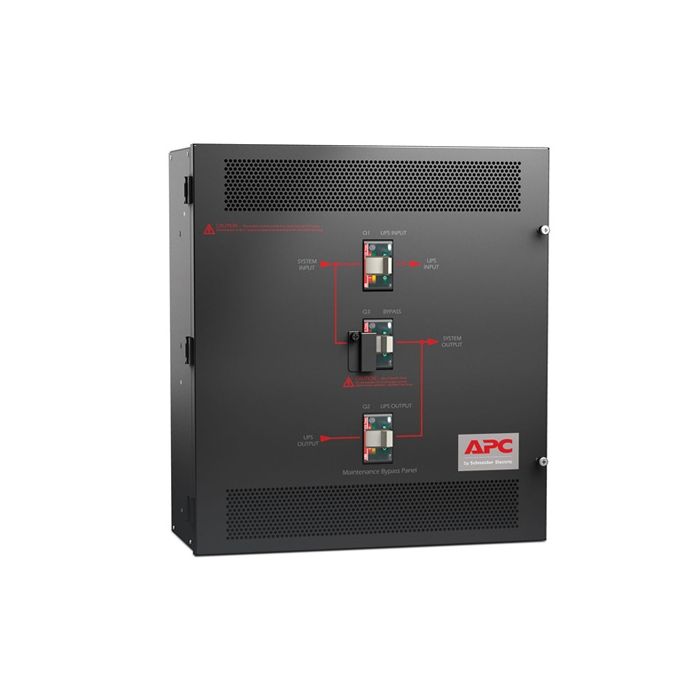

APC Smart-UPS VT Maintenance Bypass Panel 10-30kVA 208V

APC Smart-UPS VT Maintenance Bypass Panel 10-30kVA 208V
SBPSU10K30FC1M1-WP
Output: (1) Hard Wire 5-wire (3PH + N + G) (Battery Backup)
Input: Hard Wire 5-wire (3PH + N + G)
Refurbished
1 Year Warranty Included

Extended Warranty

1 Year Included

2 Year + $40.00

3 Year + $70.00

In stock

Quantity

APC Smart-UPS VT Maintenance Bypass Panel 10-30kVA 208V Wall Mount w/42 Pos. Distribution Panel

SBPSU10K30FC1M1-WP Specifications:

Output:

Nominal Output Voltage

120V , 208V 3PH

Maximum Total Current Draw

83.2999999

Output Connections

(1) Hard Wire 5-wire (3PH + N + G) (Battery Backup)

Input:

Nominal Input Voltage

208V 3PH

Input Frequency

50/60 Hz

Input Connections

Hard Wire 5-wire (3PH + N + G)

Number of Power Cords

Load Capacity

30000 VA

Maximum Input Current

92 A

Physical:

Maximum Height	29.5 inches ( 749 , 74.9 cm )
Maximum Width	37.38 inches ( 949 , 94.9 cm )
Maximum Depth	7.75 inches ( 197 , 19.7 cm )
Net Weight	120.0 lbs. ( 54.55 kg )

Environmental:

Operating Environment	32 - 104 °F (0 - 40 °C)
Operating Relative Humidity	0 - 95%
Operating Elevation	0-3333 ft ( 0-999.9 meters )
Storage Temperature	0 - 40 °C
Storage Relative Humidity	0 - 95%
Storage Elevation	0-10000 ft ( 0-3000 meters )
