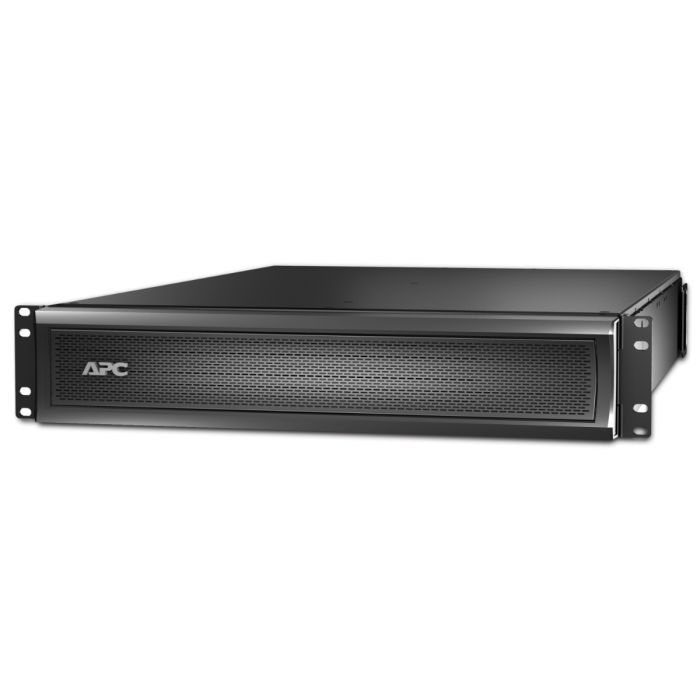

APC Smart-UPS X 120V Rack/Tower 2U External Runtime Battery Pack SMX120RMBP2U - Refurb
APC Smart-UPS X 120VDC 1200VAh Rack/Tower 2U External Battery Pack
Model: SMX120RMBP2U
Extended Runtime Battery Cabinet
120VDC Lead-Acid Battery System
Compatible with Select APC Smart-UPS X / SMX Extended Runtime Systems
Supports Scalable Runtime Expansion
New Batteries, Refurbished Cabinet
1 Year Warranty Included
$849.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 120VDC 1200VAh Rack/Tower 2U External Battery Pack
Condition: Refurbished Battery Cabinet with New Batteries
Part Number: SMX120RMBP2U
Battery Capacity: 1200VAh
Battery Voltage: 120VDC
Replacement Battery: (2) APCRBC118
Extended Runtime: Supports up to (10) External Battery Packs with Compatible Smart-UPS X Systems
Form Factor: Rack / Tower Convertible 2U
Warranty: 1 Year Full Replacement Warranty
Description: The APC Smart-UPS X SMX120RMBP2U is a high-capacity 120VDC / 1200VAh external battery pack designed to significantly extend runtime for compatible APC Smart-UPS X extended-runtime UPS systems. Its 2U rack/tower convertible design provides flexible deployment in server rooms, network closets, data centers, and other critical power environments. The battery pack uses two APCRBC118 battery cartridges with a total of 10 lead-acid battery blocks and supports plug-and-play runtime expansion while a compatible Smart-UPS X is operating. Compatible systems can support up to 10 SMX120RMBP2U battery packs for scalable extended runtime. This battery cabinet is refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.
Â
APC Smart-UPS X 1200VAh RM 2U External Battery Pack SMX120RMBP2U - User Manual
Â
Â
SMX120RMBP2U - APC Smart-UPS X 1200VAh Specifications:
| Specification | Details |
|---|---|
| Main | Â |
| Manufacturer | APC |
| Product Family | Smart-UPS X / Smart-UPS Battery Systems |
| Model | SMX120RMBP2U |
| Product Type | External Battery Pack |
| Application | Extended Runtime Battery Cabinet |
| Battery Capacity | 1200VAh |
| Nominal Battery Voltage | 120VDC |
| Battery Technology | Lead-Acid |
| Replacement Battery | APCRBC118 |
| RBC Quantity | (2) |
| Form Factor | Rack / Tower Convertible |
| Rack Height | 2U |
| Extended Runtime | Yes |
| Standalone UPS | No |
| Primary Function | Adds battery runtime to compatible APC Smart-UPS X extended-runtime UPS systems |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Lead-Acid |
| Nominal Battery Voltage | 120VDC |
| Battery Capacity | 1200VAh |
| Battery Blocks per String | (10) |
| Battery Cartridge Quantity | (2) |
| Replacement Battery Cartridge | APCRBC118 |
| RBC Quantity | (2) APCRBC118 |
| Battery Cartridge Mounting | Enclosed Battery Cartridge |
| Battery Slots Empty | 0 |
| User-Replaceable Batteries | Yes |
| Hot-Add Runtime Expansion | Yes, battery capacity can be added to a compatible operating Smart-UPS X |
| Extended Runtime Capability | Yes |
| Scalable Runtime | Yes |
| Maximum External Battery Packs | Up to (10) SMX120RMBP2U battery packs with compatible UPS systems |
| Multiple Battery Pack Support | Yes |
| Battery Expansion Type | Daisy-chain external battery expansion |
| Runtime Increase | Depends on connected UPS, load level and number of external battery packs |
| Battery Monitoring | Managed by the connected compatible Smart-UPS X |
| Battery Replacement | User Replaceable |
| Â | Â |
| Compatibility | Â |
| UPS Family Compatibility | APC Smart-UPS X / SMX Extended Runtime Series |
| Compatible Battery System | 120VDC Smart-UPS X |
| Compatible 120V Models | SMX2000RMLV2U, SMX2200RMLV2U, SMX3000RMLV2U |
| Compatible High-Voltage Models | SMX2200RMHV2U, SMX3000RMHV2U |
| Compatible NC / Network Models | Compatible variants of the models listed above |
| Maximum External Battery Packs | Up to (10) SMX120RMBP2U |
| Compatibility Requirement | Compatible Smart-UPS X extended-runtime models using the 120VDC battery system |
| SMX3000RMLV2U Compatibility | Yes |
| SMX2200RMHV2U Compatibility | Yes |
| SMX3000RMHV2U Compatibility | Yes |
| Network-Card / NC UPS Variants | Compatible where the underlying SMX UPS model uses the SMX120RMBP2U external battery system |
| Maximum Packs per Compatible UPS | Up to (10) |
| Not Intended For | Smart-UPS models using different external battery voltages or battery-pack families |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0–95% |
| Operating Altitude | 0–10,000 ft (0–3,000 m) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Storage Relative Humidity | 0–95% |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
