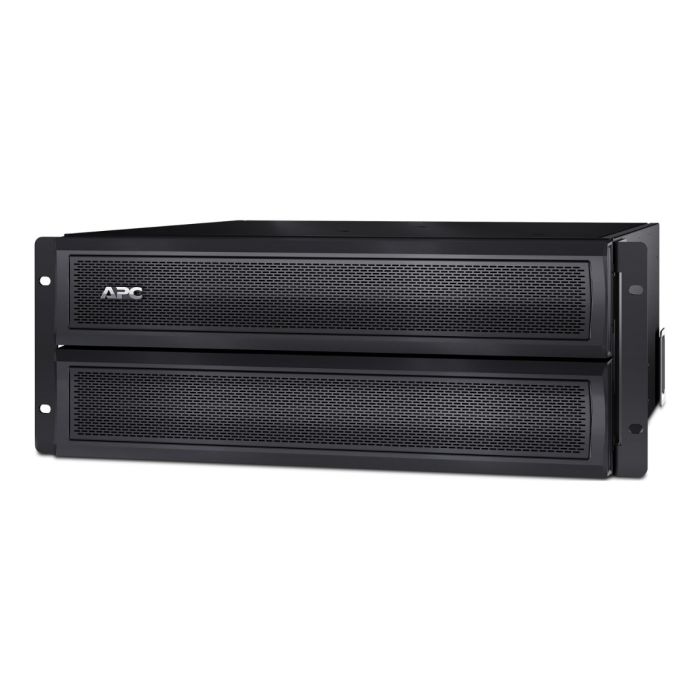

APC SMX120BP Smart-UPS X 120V RM 4U Extended Runtime Battery Cabinet 1200VAh -Refurb
APC Smart-UPS X 120VDC 1200VAh Rack/Tower 4U External Battery Pack
Model: SMX120BP
120VDC External Battery Pack - 1200VAh
Compatible with Select APC Smart-UPS X / SMX Extended Runtime Systems
Supports up to (10) External Battery Packs
Replacement Battery: (2) APCRBC143 / APCRBC143US
New Batteries, Refurbished Cabinet
1 Year Warranty Included
$849.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 120VDC 1200VAh Rack/Tower 4U External Battery Pack
Condition: Refurbished Battery Cabinet with New Batteries
Part Number: SMX120BP
Battery Capacity: 1200VAh
Battery Voltage: 120VDC
Replacement Battery: (2) APCRBC143 / APCRBC143US
Form Factor: Rack / Tower Convertible 4U
Warranty: 1 Year Full Replacement Warranty
Description: The APC Smart-UPS X SMX120BP is a 120VDC / 1200VAh external battery pack designed to extend runtime for compatible APC Smart-UPS X extended-runtime UPS systems. It uses two APCRBC143 / APCRBC143US replacement battery cartridges with 10 battery blocks per string and provides scalable battery capacity for applications requiring longer backup operation. Its rack/tower convertible 4U design makes it suitable for server rooms, network infrastructure, data centers, and other critical power environments. The SMX120BP connects to compatible Smart-UPS X systems as an external battery cabinet, allowing additional battery packs to be used for increased runtime. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty. APC identifies the SMX120BP as a 120V, 1200VAh Smart-UPS X-Series external battery pack.
Â
Â
APC Smart-UPS X 120V RM 4U External Battery Pack SMX120BP - User's Manual
Â
Â
SMX120BPÂ - APC Smart-UPS X Battery Systems 120VDC Specifications:Â
| Main | Â |
| Manufacturer | APC |
| Product Family | Smart-UPS X / Smart-UPS Battery Systems |
| Model | SMX120BP |
| Product Type | External Battery Pack |
| Application | Extended Runtime Battery Cabinet |
| Battery Capacity | 1200VAh |
| Battery Voltage | 120VDC |
| Battery Type | Lead-Acid |
| Replacement Battery | APCRBC143 / APCRBC143US |
| RBC Quantity | (2) |
| Form Factor | Rack / Tower Convertible |
| Rack Height | 4U |
| Extended Runtime | Yes |
| Standalone UPS | No |
| Primary Function | Extends battery runtime of compatible APC Smart-UPS X systems |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Technology | Lead-Acid |
| Nominal Battery Voltage | 120VDC |
| Battery Capacity | 1200VAh |
| Battery Blocks per String | (10) |
| Battery Replacement Quantity | (2) |
| Replacement Battery Cartridge | APCRBC143 |
| Alternate Replacement Battery | APCRBC143US |
| Device Mounting | Enclosed Battery Cartridge |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| User-Replaceable Batteries | Yes |
| Extended Runtime Capability | Yes |
| Scalable Runtime | Yes |
| Multiple Battery Pack Support | Yes, when supported by the connected UPS |
| Runtime Increase | Depends on UPS model, connected load and number of external battery packs |
| Battery Management | Managed through the connected compatible Smart-UPS X UPS |
| Â | Â |
| Compatibility | Â |
| UPS Family Compatibility | APC Smart-UPS X / SMX Extended Runtime Series |
| Compatible Battery System | 120VDC Smart-UPS X |
| Compatible 120V Models | SMX2000LV, SMX2000LVNC, SMX3000LV, SMX3000LVNC |
| Compatible 208V Model | SMX3000HVT |
| Compatible High-Voltage Models | SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HVNC |
| External Battery Pack | SMX120BP |
| Extended Runtime Support | Yes |
| Multiple Battery Pack Support | Yes |
| Maximum External Battery Packs | Up to (10) SMX120BP |
| Compatibility Requirement | Compatible Smart-UPS X system using the SMX120BP 120VDC battery architecture |
| External Battery Pack | SMX120BP |
| Battery System | 120VDC |
| Maximum External Battery Packs | Up to (10) SMX120BP |
| Â | Â |
| Connectivity & Integration | Â |
| External Battery Connection | Dedicated Smart-UPS X battery connection |
| UPS Integration | External Runtime Expansion |
| Battery Communication | Managed by compatible UPS |
| Network Management | Not Applicable |
| SmartSlot | No |
| Ethernet | No |
| USB | No |
| Serial Communication | No |
| Standalone Operation | No |
| Â | Â |
| Physical | Â |
| Color | Black |
| Form Factor | Rack / Tower Convertible |
| Rack Height | 4U |
| Height | 17.008 in (432 mm) |
| Width | 7.008 in (178 mm) |
| Depth | 19.02 in (483 mm) |
| Net Weight | 134.28 lb (60.91 kg) |
| Mounting Mode | Rack-Mounted |
| Rack Installation | Yes |
| Tower Orientation | Supported by product design |
| Battery Enclosure | Enclosed Battery Cabinet |
| Rack Mounting Brackets | Supported |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Storage Relative Humidity | 0–95% |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Â | Â |
| General | Â |
| Product Range | Smart-UPS Battery Systems |
| Intended Application | Extended Runtime |
| Battery Cabinet Voltage | 120VDC |
| Battery Capacity | 1200VAh |
| Battery Cartridge | APCRBC143 / APCRBC143US |
| Battery Cartridge Quantity | (2) |
| Removable Battery | User Replaceable |
| Â | Â |
| Packaging | Â |
| Package Quantity | (1) |
| Package Height | 13.0 in (33 cm) |
| Package Width | 23.07 in (58.6 cm) |
| Package Length | 24.9 in (63.3 cm) |
| Package Weight | 144.29 lb (65.45 kg) |
| Â | Â |
| Condition & Warranty | Â |
| Condition | Refurbished Battery Cabinet with New Batteries |
| Battery Condition | New Batteries |
| Cabinet Condition | Refurbished |
| Warranty | 1 Year Full Replacement Warranty |
