FREE

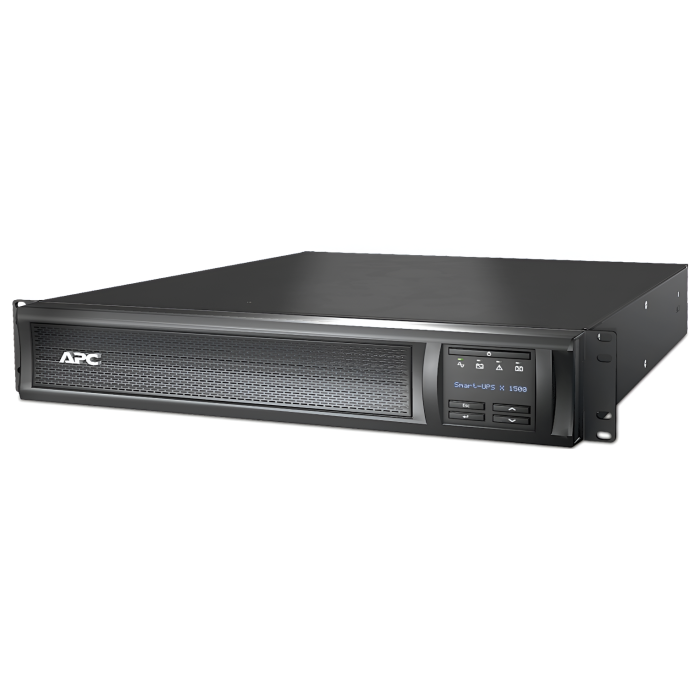

APC Smart-UPS X 1500VA 1200W LCD RM 2U AP9631 Pre-Install 120V, SMX1500RM2UNC - Refurb
APC Smart-UPS X 1500VA 1200W LCD RM 2U -Â AP9631 Network Card Pre-InstallÂ
Model: SMX1500RM2UNC
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$599.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS X 1500VA 1200W LCD, RM 2U, 120V, AP9631 Network Card
Condition: New batteries, refurbished UPS
Part Number: SMX1500RM2UNC
Maximum output: 1200WÂ /Â 1500VA
Typical backup time at half load:Â 17.2 minutes (600 Watts)
Typical backup time at full load: 5.8 minutes (1200 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 1500VA 1200W SMX1500RM2UNC - User's Manual
SMX1500RM2UNC - APC Smart-UPS 1500VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated power in W |
1200W |
||
|
Rated power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of rack unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-acid Battery |
General:
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Product Web Sub-Family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
19.29 in (49 cm) |
|
Net Weight |
54.72 lb(US) (24.82 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Maximum Input Current per Phase |
12A |
|
Maximum Short Circuit Withstand (Icw) |
1000 kA |
|
Switching Current Capacity |
20 A |
|
Efficiency at full load |
75 - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic distortion |
Less than 5% |
|
Maximum configurable power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1200W |
|
Topology |
Line interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CUL Listed |
Environmental:
|
Acoustic level |
40 dBA |
|
Heat Dissipation |
133 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000ft (0.00Â - 15240.00m) |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â - 95% |
Batteries & Runtime:
|
Extendable Run Time |
0
|
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
DC Overcurrent Protection |
60 A |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
APCRBC115 |
|
Battery Power in VAH |
311 VAh runtime |
|
Battery Charge Power (Watts) |
103 W rated |
Communications & Management:
|
Alarm |
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
|
|
Control Panel |
Multi-function LCD status and control console |
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring |
Surge Protection & Filtering:
|
Surge Energy Rating |
600 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee |
