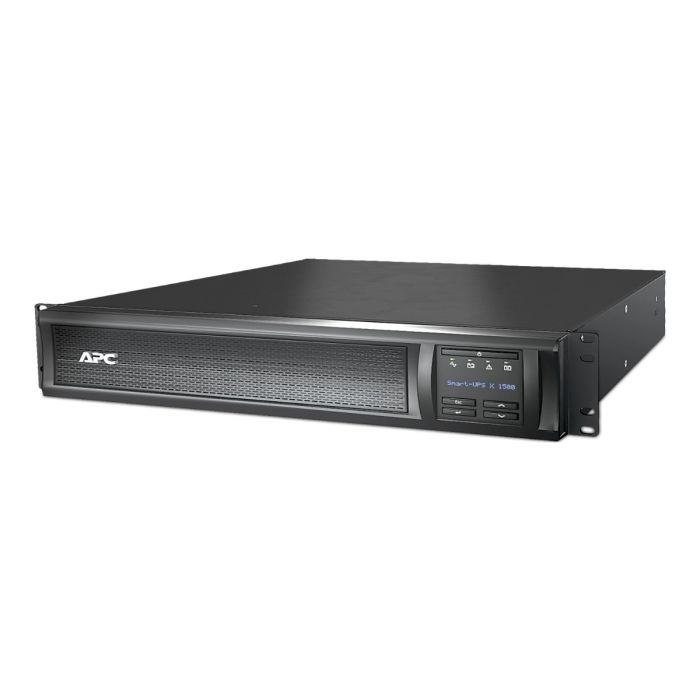

APC SmartConnect-UPS X 1500VA 1200W LCD AP9631 Pre-Install 120V, SMX1500RM2UCNC - Refurb
APC Smart UPS X 1500VA 2700W RM 2U 120V
Model: SMX1500RM2UCNC
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$749.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 1500V 1350W LCD RM 2U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMX1500RM2UCNC
Maximum output:Â 1350W / 1500VA
Typical backup time at half load: 14.29 minutes (675 Watts)
Typical backup time at full load: 5.10 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
Description: The APC Smart-UPS X 1500VA (SMX1500RM2UCNC) is a compact and reliable line-interactive UPS designed for rackmount environments, delivering 1500VA / 1350W of clean and stable power for servers, networking equipment, and critical IT applications. Operating at 120V with a NEMA 5-15P input, it provides (8) NEMA 5-15R outlets for flexible device connectivity.
This unit features pure sine wave output, fast transfer time, and Automatic Voltage Regulation (AVR) to protect connected equipment from power fluctuations without relying on battery power. It includes a multifunction LCD display for real-time monitoring and a pre-installed network management card with SmartConnect support, enabling remote monitoring and management.
Equipped with hot-swappable lead-acid batteries, the UPS offers typical runtimes of approximately 14 minutes at half load and 5 minutes at full load. While it does not support extended runtime configurations, it provides dependable short-term backup and power conditioning. Refurbished with new batteries and backed by a 1-year warranty, the SMX1500RM2UCNC is a cost-effective solution for small to mid-sized IT environments.
Â
Â
APC Smart-UPS X 1500VA 1350W LCD RM SMX1500RM2UCNC - User Manual
Â
Â
SMX1500RM2UCNC - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1350W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Rack Unit |
2U |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Battery Voltage |
48V |
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Overcurrent Protection |
60 A |
|
Battery power in VAH |
288 VAh runtime |
|
Battery Charge Power (Watts) |
103W |
|
Battery Option |
SMX48RMBP2U 1 888 VAh |
|
Replacement Battery |
APCRBC115 |
Â
General:
|
Product Web Sub-family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
19.29 in (49 cm) |
|
Product Weight |
54.72 lb(US) (24.82 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two post mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Maximum Input Current per Phase |
12A |
|
Maximum Short Circuit Withstand (Icw) |
1000kA |
|
Switching Current Capacity |
20A |
|
Efficiency at full load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1350W |
|
Topology |
Line Interactive |
|
Full load runtime |
00:05:00 |
|
Full load runtime |
00:05:00 |
|
Half load runtime |
00:15:00 |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CUL Listed |
Environmental:
|
Acoustic Level |
40 dBA
|
|
Online Thermal Dissipation |
133 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
|
 |
 |
Communications & Management:
|
Network Management Card |
Pre-installed SmartSlot network management card |
|
SmartConnect Support |
SmartConnect Ethernet cloud monitoring enabled |
|
Communication Interface |
USB connectivity + Ethernet (SmartConnect) |
|
Remote Monitoring |
Real-time UPS status, load, battery, and event monitoring |
|
Management Access |
Web-based and cloud-based remote management |
|
Network Slot |
SmartSlot expansion available |
|
Alarm Notifications |
Configurable alarms (on battery, low battery, overload) |
|
Event Logging |
Power event and UPS status logging supported |
|
Remote Access |
Secure cloud monitoring access via SmartConnect |
|
Firmware Updates |
Supported via network management interface |
|
 |
 |
|
 |
 |
|
User Interface, Alerts & Controls |
 |
|
Front Panel Display |
Multi-function LCD status and control console |
|
LCD Functions |
Input/output voltage, load level, battery status, runtime, and alarms |
|
Control Panel |
Front-panel navigation and configuration controls |
|
Audible Alarms |
On battery, low battery, overload, and fault alerts |
|
Alarm Configuration |
User-configurable alarm behavior |
|
LED Indicators |
Visual status indicators for operating conditions |
|
Operating Modes |
Line-interactive operation with AVR voltage regulation |
|
Transfer Time |
Fast automatic switching during power events |
|
Waveform Type |
Pure sine wave output |
|
Power Monitoring |
Real-time power and battery condition monitoring |
|
User Controls |
Full UPS configuration via LCD interface |
Â
Surge Protection and Filtering:
|
Surge Energy Rating |
600 J
|
|
Filtering |
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : mee
|
