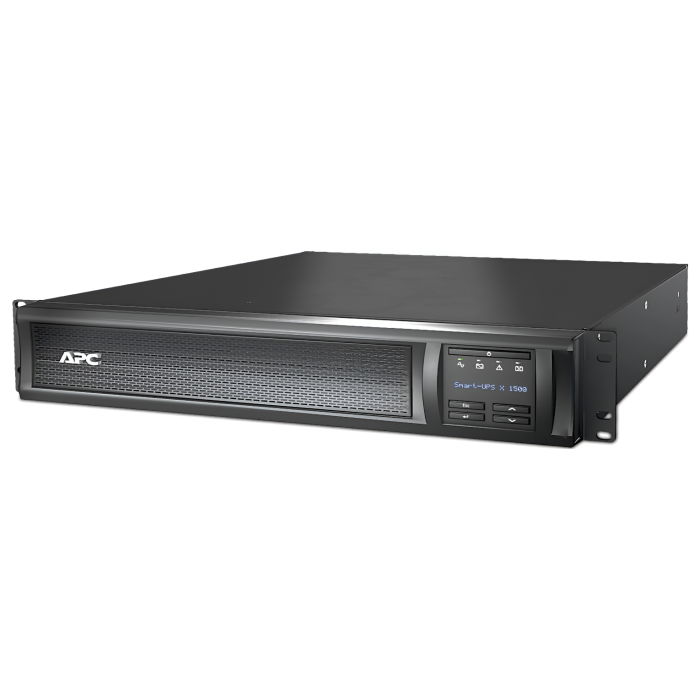

APC SmartConnect - UPS X 1500VA 1350W 120V Output: (8)5-15R, SMX1500RM2UC - Refurbished
APC Smart-UPS X 1500VA 1350W RM 2U SmartConnect
Model: SMX1500RM2UCÂ
Input: NEMA 5-15P (120V - 15A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$599.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS X 1500VAÂ 1350W CloudConnect RM 2U 120V
Condition: New batteries, refurbished UPS
Part Number: SMX1500RM2UC
Maximum output: 1350WÂ /Â 1500VA
Typical backup time at half load:Â 14.2 minutes (675 Watts)
Typical backup time at full load: 5.1 minutes (1350 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 1500VA 1350W RM 2U SMX1500RM2UC - User Manual
Â
SMX1500RM2UC - APC Smart-UPS X 1500VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
1350W |
||
|
Rated power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid battery |
General:
|
Number of power module filled slots |
0 |
|
Number of power module free slots |
0 |
|
Product web Sub-family |
Extended Run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.50 in (8.9 cm) |
|
Width |
17.01 in (43.2 cm) |
|
Depth |
19.29 in (49 cm) |
|
Net Weight |
54.72 lb(US) (24.82 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted with kit (sold separately) |
|
Two Post Mountable |
Yes (2 post rail kit sold separately) |
|
USB compatible |
Yes |
Input:
|
Maximum Input Current per Phase |
12A |
|
Maximum Short Circuit Withstand (Icw) |
1000kA |
|
Switching Current Capacity |
20A |
|
Efficiency at Full Load |
75Â - 154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum configurable power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1350W |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Full Load Runtime |
00:05:00 |
|
Half Load Runtime |
00:15:00 |
|
Output Frequency (Sync to Mains) |
50/60 Hz +/- 3 Hz Sync to Mains |
Environmental:
|
Acoustic Level |
40 dBA |
|
Heat Dissipation |
133 Btu/h |
|
Operating altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Relative Humidity |
0Â - 95% |
|
Storage Relative Humidity |
0Â -Â 95% |
Batteries & Runtime:
|
Battery Voltage |
48V
|
|
Extendable Run Time |
0 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3h |
|
RBC Quantity |
1 |
|
Battery Life |
3Â - 5 year(s) |
|
Replacement Battery |
APCRBC115 |
|
Battery power in VAH |
288 VAh runtime |
|
Battery Charge Power (Watts) |
103 W rated |
|
Battery Option |
SMX48RMBP2U 5 3303 VAh |
Communications & Management:
|
Alarm |
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
|
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
Surge Protection and Filtering:
|
Surge Energy Rating |
645 J
|
|
Filtering |
Full time multi-pole noise filtering: 5% IEEE surge let-through: zero clamping response time: mee |
