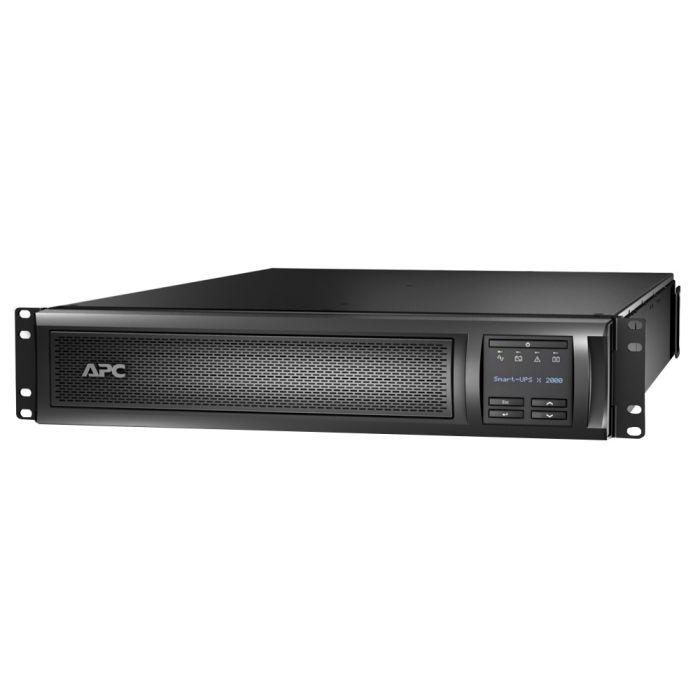

APC Smart-UPS X 2000VA 1800W LCD 20A 120V AP9631 Pre-Install, SMX2000RMLV2UNC - Refurbished
APC Smart-UPS X 2000VA 1800W LCD RM 2U - 20A 120V - AP9631
Model: SMX2000RMLV2UNC
Input: NEMA 5-20P - 20A 120V
Output: (3) 5-15R, (3) 5-20R, (1) L5-20R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$849.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS X 2000VA 1800W, LCD, RM, 2U, 120V -Â AP9631
Condition: New batteries, refurbished UPS
Part Number:Â SMX2000RMLV2UNC
Maximum output: 1800WÂ /Â 2000VA
Typical backup time at half load: 27.4 minutes (900 Watts)
Typical backup time at full load: 10.9 minutes (1800 Watts)
Warranty:Â 1 year full replacement warranty)
Â
APC Smart-UPS X 2000VA 1800W RM SMX2000RMLV2UNC - User Manual
Â
SMX2000RMLV2UNC - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
120V |
||||||
|
Other Input Voltage |
100V |
||||||
|
Main Output Voltage |
120V |
||||||
|
Other Output Voltage |
100V |
||||||
|
Rated Power in W |
1800W |
||||||
|
Rated Power in VA |
1920VA |
||||||
|
Input Connection Type |
|
||||||
|
Output Connection Type |
|
||||||
|
Number of Rack Unit |
2U |
||||||
|
Cable Length |
8 ft (2.44 m) |
||||||
|
Number of Cables |
1 |
||||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC117 |
|
Battery Power in VAH |
690 VAh runtime |
|
Battery Charge Power (Watts) |
229 W rated |
|
Battery Option |
SRT9SMX120RMBP2U 1 2070 VAh |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.35 inches (85mm, 8.5cm) |
|
Width |
17.01 inches (432mm, 43.2cm) |
|
Depth |
26.26 inches (667mm, 66.7cm) |
|
Net Weight |
84.77 lbs. (38.45kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1920VA |
|
Max Configurable Power (Watts) |
1800W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
203 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Free Slots |
0
|
|
Pre-Installed SmartSlotâ„¢ Cards |
Network management card 2 with environmental monitoring
|
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
