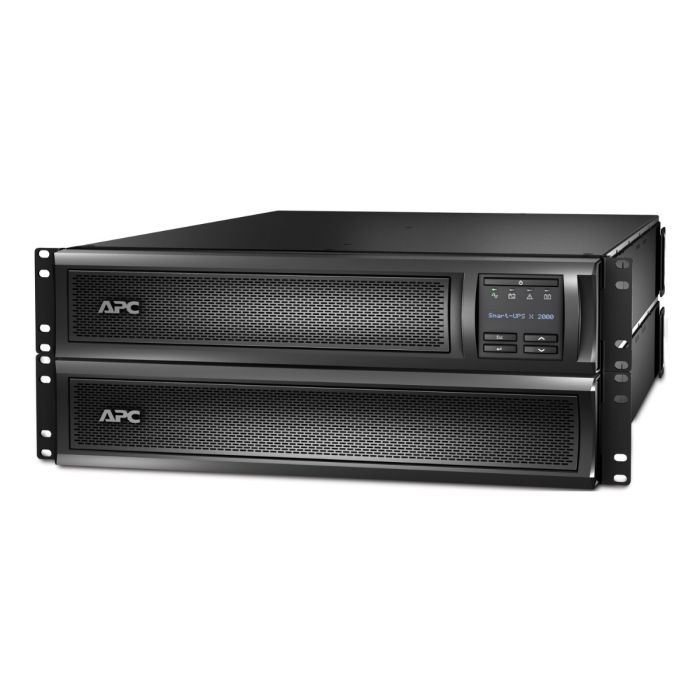

Main image Click to view image in fullscreen APC Smart-UPS X 2000VA 1800W 20A SMX2000RMLV2U + SMX120RMBP2U Battery Pack - Refurbished

APC Smart-UPS X 2000VA 1800W 20A SMX2000RMLV2U +SMX120RMBP2U Battery Pack - Refurbished

APC Smart-UPS X 2000VA 1800W LCD RM 2U 20A
Model: SMX2000RMLV2U
Input: NEMA 5-20P (120V - 20A)
Output: (3) NEMA 5-15R, (1) NEMA L5-20R, (3) NEMA 5-20R
Line-Interactive UPS - Sine wave Output

APC Smart-UPS X 120V External Battery Pack Rack/Tower SMX120RMBP2U
Model: SMX120RMBP2U

New batteries, Refurbished UPS & External Battery Pack
1 Year Warranty Included

Extended Warranty *

1 Year Included

2 Year + $320.00

3 Year + $560.00

Back Order

Quantity

Manufacturer: APC
Model: APC Smart-UPS X 2000VA 1800W, RM, 2U, 120V 20A
Condition: New Batteries, Refurbished UPS & External Battery Pack
Part Number: SMX2000RMLV2U + SMX120RMBP2U
Maximum output: 1800W / 2000VA
Typical backup time at half load: 27.6 minutes (900 Watts)
Typical backup time at full load: 10.9 minutes (1800 Watts)
Warranty: 1 year full replacement warranty58

APC Smart-UPS X 2000VA 1800W SMX2000RMLV2U - User Manual

SMX2000RMLV2U - APC Smart-UPS X Specifications:

Main:

Main Input Voltage

120V

Other Input Voltage

100V
110V
127V

Main Output Voltage

120V

Other Output Voltage

100V
110V
127V

Rated Power in W

1800W

Rated Power in VA

1920VA

Input Connection Type

NEMA 5-20P

Output Connection Type

(3) NEMA 5-15R
(3) NEMA 5-20R
(1) NEMA L5-20R

Number of Rack Unit

Cable Length

8 ft (2.44 m)

Number of Cables

Battery Type

Lead-Acid Battery

Batteries & Runtime:

Extendable Run Time	1
Included Battery Modules	0
Battery Slots Empty	0
Typical Recharge Time	3 h
RBC Quantity	1
Battery Life	3 - 5 year(s)
Replacement Battery	APCRBC117
Battery Power in VAH	690 VAh runtime
Battery Charge Power (Watts)	229 W rated
Battery Option	SMX120RMBP2U 1 2070 VAh SMX120RMBP2U 2 3450 VAh SMX120RMBP2U 3 4830 VAh SMX120RMBP2U 4 6210 VAh SMX120RMBP2U 6 8970 VAh SMX120RMBP2U 8 11730 VAh SMX120RMBP2U 10 14490 VAh

General:

Number of Power Module	1750
Number of Power Module Filled Slots	0
Number of Power Module Free Slots	0
Product Web Sub-Family	Extended Run
Redundant	No

Physical:

Color	Black
Height	3.36 inches (85mm, 8.5cm)
Width	17.0 inches (432mm, 43.2cm)
Depth	26.26 inches (667mm, 66.7cm)
Net Weight	84.6 lbs. (38.45kg)
Mounting Location	Front
Mounting Preference	Lower
Mounting Mode	Rack-mounted
Two Post Mountable	0
USB Compatible	Yes

Input:

Efficiency at Full Load	75-154 V adjustable 70-153 V
Input Frequency	50/60 Hz +/- 3 Hz auto-sensing

Output:

Harmonic Distortion	Less than 5%
Maximum Configurable Power in VA	1920VA
Max Configurable Power (Watts)	1800W
Transfer Time	2-4 ms 4ms typical : 8ms maximum
Topology	Line Interactive
Waveform Type	Sine Wave
Output Frequency (sync to mains)	50/60 Hz +/- 3 Hz sync to mains

Conformance:

Product Certifications

BSMI
CSA
NOM
TÜV
VCCI Class A

Environmental:

Acoustic Level	55 dBA
Heat Dissipation	203 Btu/h
Operating Altitude	0 - 10000 ft
Ambient Air Temperature for Operation	32 - 104 °F (0 - 40 °C)
Ambient Air Temperature for Storage	5 - 113 °F (-15 - 45 °C)
Storage Altitude	0 - 50000 ft (0.00 - 15240.00 m)
Relative Humidity	0 - 95 %
Storage Relative Humidity	0 - 95 %

Communications & Management:

Control Panel	Multi-function LCD status and control console
Emergency Power Off (EPO)	Yes
Free Slots	1
Control Panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering:

Surge Energy Rating	540 J
Filtering	Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

APC Smart-UPS X External Battery Pack SMX120RMBP2U - User's Manual

SMX120RMBP2U - APC Smart-UPS X Specifications:

Batteries and Run time:

Battery Volt-Amp-Hour Capacity	1200
Battery Type	Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Battery mounting	Enclosed battery cartridge

Expected Battery Life (years)	3 - 5
RBC Quantity	2
Battery blocks per string	10

Physical:

Maximum height	3.36 inches (85 mm)
Maximum width	17.00 inches (432 mm)
Maximum depth	26.26 inches (667 mm)
Net weight	124.00 lbs. (56.36 kg)
Shipping Weight	140.00 lbs. (63.64 kg)
Rack Height	2U
