FREE

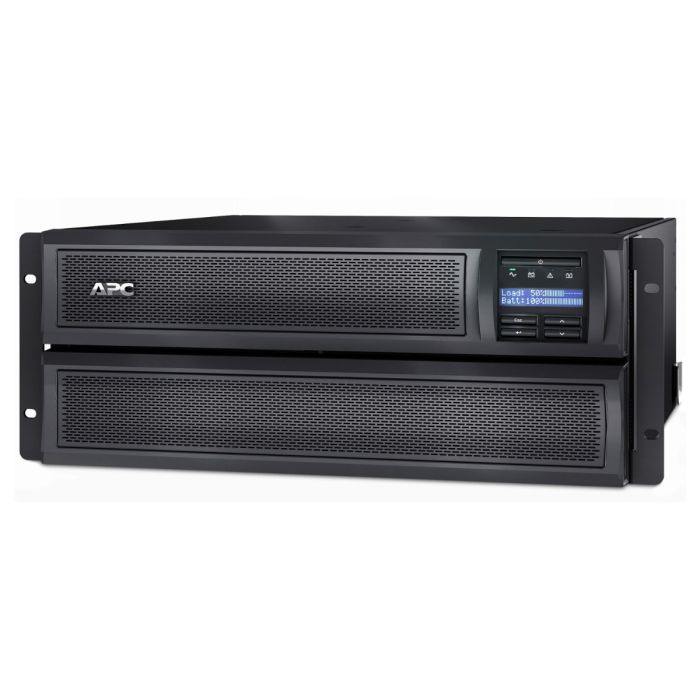

APC Smart UPS X 2000VA 1800W LCD RM 4U 20A, AP9631 Pre-Install, SMX2000LVNC - Refurbished
APC Smart UPS X 2000VA 1800W LCD RM 4U Network Card AP9631 Pre-Install
Model: SMX2000LVNC
Input: NEMA 5-20P (120V - 20A)
Output: (3) NEMA 5-20R, (1) NEMA L5-20R, (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,049.99
In stock
Manufacturer: APC
Model:Â APC Smart-UPS X 2000VA 1800W, RM, 4U, 120VÂ AP9631Â
Condition: New Batteries, Refurbished UPS
Part Number:Â SMX2000LVNC
Maximum output: 1800WÂ /Â 2000VA
Typical backup time at half load: 27.4 minutes (900 Watts)
Typical backup time at full load: 10.9 minutes (1800 Watts)
Warranty:Â 1 year full replacement warranty)
APC Smart-UPS X 2000VA 1800W 120V - 20A RM SMX2000LVNC - User Manual
SMX2000LVNC - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
120V |
||||||
|
Other Input Voltage |
100V |
||||||
|
Main Output Voltage |
120V |
||||||
|
Other Output Voltage |
100V |
||||||
|
Rated power in W |
1800W |
||||||
|
Rated power in VA |
1920VA |
||||||
|
Input Connection Type |
|
||||||
|
Output Connection Type |
|
||||||
|
Number of Rack Unit |
4U |
||||||
|
Cable Length |
8 ft (2.44 m) |
||||||
|
Number of Cables |
1 |
||||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
1 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC143 |
|
Battery Power in VAH |
690 VAh runtime |
|
Battery Charge Power (Watts) |
229 W rated |
|
Battery Option |
SMX120BP 1 2070 VAh |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
17.01 inches (432mm, 43.2cm) |
|
Width |
7.01 inches (178mm, 17.8cm) |
|
Depth |
19.02 inches (483mm, 48.3cm) |
|
Net Weight |
85.19 lbs. (38.64kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
1 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
75-154 V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1920VA |
|
Max Configurable Power (Watts) |
1800W |
|
Transfer Time |
4ms typical : 8ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
203 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
IP Degree of Protection |
IP20 |
|
Relative Humidity |
0-95 % |
|
Storage Relative Humidity |
0-95 % |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Free Slots |
0 Integrated SmartSlot (occupied by AP9631)
|
|
Pre-Installed SmartSlotâ„¢ Cards |
AP9631 - Network management card 2 with environmental monitoring
|
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators
|
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
|
USB Port |
DB9 RS-232
|
|
Serial Port |
USB, RS-232, SNMP/Web (By AP9631), EPO
|
|
Software Compatibility |
APC PowerChute Network Shutdown
|
|
Watchdog / Auto-Reboot |
Supported via network card and software
|
|
Monitoring Functions |
Real-time load, battery status, voltage, alarms, diagnostics
|
|
Event Logging |
Internal event logging via AP9631
|
|
Remote Access |
Full browser-based management (Web/SNMP)
|
|
Firmware Updates |
Supported via network card
|
|
Security Features |
SNMPv3, HTTPS, authentication via AP9631
|
|
Integration |
Enterprise network monitoring compatible
|
|
 |
Â
|
Â
User Interface, Alerts & Controls:
|
Front Panel Display |
Multi-function LCD display with UPS status, load, battery, configuration and diagnostics |
|
Front Panel Indicators |
LED status indicators (online, on-battery, bypass, replace battery, overload, fault) |
|
Controls |
Power ON/OFF, menu navigation (up/down/enter/escape), self-test, alarm silence |
|
Audible Alarm |
Battery operation, low battery, overload, fault conditions |
|
Alarm Management |
Configurable alarm delays and silence via front panel |
|
Emergency Power Off (EPO) |
Supported |
|
Control Interface Type |
LCD + LED front panel monitoring system |
|
 |
Â
|
Â
Â
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
