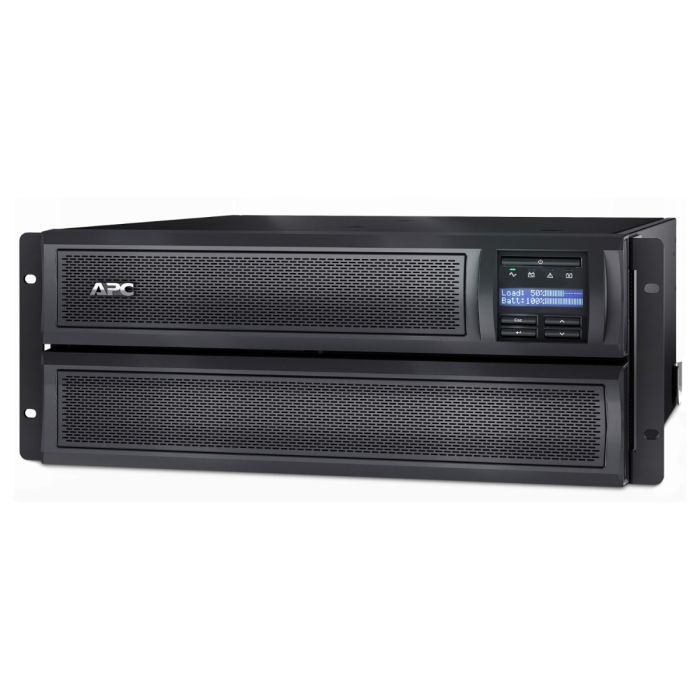

APC Smart-UPS X 2000VA 1800W LCD RM 4U 120V 20A SMX2000LV - Refurbished
APC Smart-UPS X 2000VA 1800W LCD RM 4U
Model: SMX2000LV
Input: NEMA 5-20P (120V - 20A)
Output: (3) NEMA 5-20R, (1) NEMA L5-20R, (6) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$899.99
In stock
Manufacturer: APC
Model: APC Smart UPS X 2000VA 1800W, RM, 4U, 120V
Condition: New batteries, refurbished UPS
Part Number: SMX2000LV
Maximum output: 1800W / 2000VA
Typical backup time at half load: 27 minutes (900 Watts)
Typical backup time at full load: 11 minutes (1800 Watts)
Warranty: 1 year full replacement warranty
APC Smart UPS X 2000VA 1800W 120V 20A SMX2000LV - User Manual
SMX2000LV - APC Smart UPS X Specifications:
Main:
|
Main Input Voltage |
120V |
||||||
|
Other Input Voltage |
100V |
||||||
|
Main Output Voltage |
120V |
||||||
|
Other Output Voltage |
100V |
||||||
|
Rated Power in W |
1800W |
||||||
|
Rated Power in VA |
1920VA |
||||||
|
Input Connection Type |
|
||||||
|
Output Connection Type |
|
||||||
|
Number of Rack Unit |
4U |
||||||
|
Cable Length |
8 ft (2.44 m) |
||||||
|
Number of Cables |
1 |
||||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC143 |
|
Battery Power in VAH |
690 VAh runtime |
|
Battery Charge Power (Watts) |
229 W rated |
|
Battery Option |
SMX120BP 1 2070 VAh |
Â
General:
|
Number of Power Module |
1750 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.0inches (432mm, 43.2cm) |
|
Width |
7.0 inches (178mm, 17.8cm) |
|
Depth |
19.0 inches (483mm, 48.3cm) |
|
Net Weight |
85.0 lbs. (38.64kg) |
|
Shipping Weight |
105.0 lbs. (47.73kg) |
|
Shipping Height |
13.0 inches (330mm, 33.0cm) |
|
Shipping Width |
23.06 inches (586mm, 58.6cm) |
|
Shipping Depth |
24.94 inches (633mm, 63.3cm) |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Network Frequency |
75 - 154 V adjustable |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
1920VA |
|
Max Configurable Power (Watts) |
1800W |
|
Transfer Time |
2-4 ms |
|
Topology |
Line Interactive |
|
Wave Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
203 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Relative Humidity |
0Â - 95 % non-condensing |
|
Storage Relative Humidity |
0Â - 95% non-condensing |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
