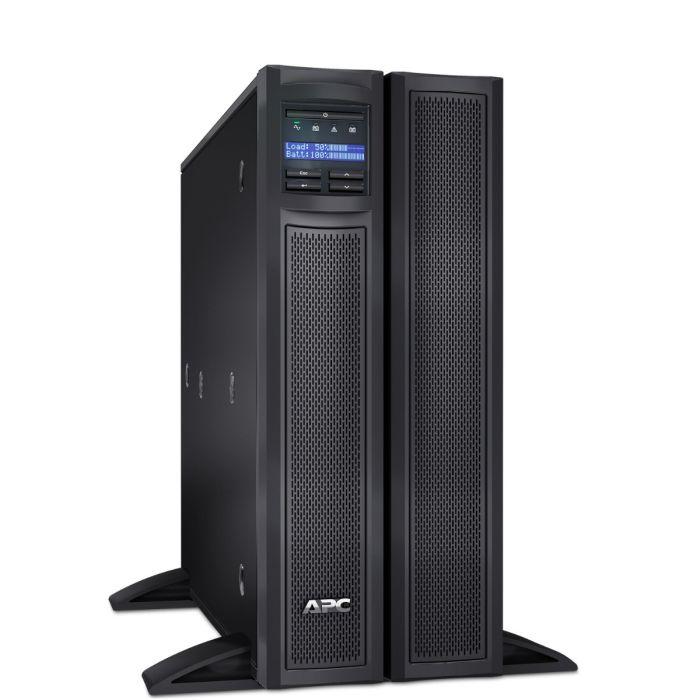

APC Smart-UPS X 2000VA 1800W Tower LCD 120V 20A SMX2000LV - Refurbished

Main Input Voltage

120V

Other Input Voltage

100V
110V
127V

Main Output Voltage

120V

Other Output Voltage

100V
110V
127V

Rated Power in W

1800W

Rated Power in VA

1920VA

Input Connection Type

Output Connection Type

Number of Rack Unit

4U

Cable Length

8 ft (2.44 m)

Number of Cables

1

Battery Type

Lead-Acid Battery

Extendable Run Time

1

Included Battery Modules

0

Battery Slots Empty

0

Typical Recharge Time

3 h

RBC Quantity

1

Battery Life

3 - 5 year(s)

Replacement Battery

APCRBC143

Battery Power in VAH

690 VAh runtime

Battery Charge Power (Watts)

229 W rated

Battery Option

SMX120BP 1 2070 VAh
SMX120BP 2 3450 VAh
SMX120BP 3 4830 VAh
SMX120BP 4 6210 VAh
SMX120BP 6 8970 VAh
SMX120BP 8 11730 VAh
SMX120BP 10 14490 VAh

Number of Power Module

1750

Number of Power Module Filled Slots

0

Number of Power Module Free Slots

0

Product Web Sub-Family

Extended run

Redundant

No

Color

Black

Height

17.0inches (432mm, 43.2cm)

Width

7.0 inches (178mm, 17.8cm)

Depth

19.0 inches (483mm, 48.3cm)

Net Weight

85.0 lbs. (38.64kg)

Shipping Weight

105.0 lbs. (47.73kg)

Shipping Height

13.0 inches (330mm, 33.0cm)

Shipping Width

23.06 inches (586mm, 58.6cm)

Shipping Depth

24.94 inches (633mm, 63.3cm)

Input Frequency

50/60 Hz +/- 3 Hz auto-sensing

Network Frequency

75 - 154 V adjustable
70 - 153 V

Harmonic Distortion

Less than 5%

Maximum Configurable Power in VA

1920VA

Max Configurable Power (Watts)

1800W

Transfer Time

2-4 ms
4ms typical : 8ms maximum

Topology

Line Interactive

Wave Type

Sine wave

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz sync to mains

Product Certifications

BSMI
CSA
NOM
TÜV
VCCI Class A

Acoustic Level

Heat Dissipation

203 Btu/h

Operating Altitude

0 - 10000 ft

Ambient Air Temperature for Operation

32 - 104 °F (0 - 40 °C)

Ambient Air Temperature for Storage

5 - 113 °F (-15 - 45 °C)

Relative Humidity

0 - 95 % non-condensing

Storage Relative Humidity

0 - 95% non-condensing

Storage Altitude

0 - 50000 ft (0.00 - 15240.00 m)

Front Panel Display

Front Panel Indicators

LED status indicators (online, on-battery, replace battery, overload, fault)

Controls

Power ON/OFF, menu navigation (up/down/enter/escape), self-test, alarm silence

Audible Alarm

Battery operation, low battery, overload, fault conditions

Alarm Management

Configurable alarm delays and silence via front panel

Emergency Power Off (EPO)

Supported

Control Interface Type

LCD + LED hybrid front panel monitoring

Storage Altitude

0 - 50000 ft (0.00 - 15240.00 m)

Control Panel

Multi-function LCD status and control console

Emergency Power Off (EPO)

Yes

Network Management Slot

1 SmartSlot available (optional network card support)

Control Panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

USB Port

Yes (HID-compliant)

Serial Port

DB9 RS-232

Communication Interfaces

USB, RS-232, SmartSlot, EPO contact closure

Remote Monitoring

Supported via optional Network Management Card

Software Compatibility

APC PowerChute Network Shutdown

Watchdog / Auto-Reboot

Supported via software and management card

Monitoring Functions

Input/output voltage, load level, battery status, alarms, diagnostics

Event Logging

Supported via management software/card

Remote Access

Available when network card is installed

Firmware Updates

Supported via management interface (with card)

Integration

Compatible with SNMP/Web monitoring solutions

Surge Energy Rating

Noise Suppression
