FREE

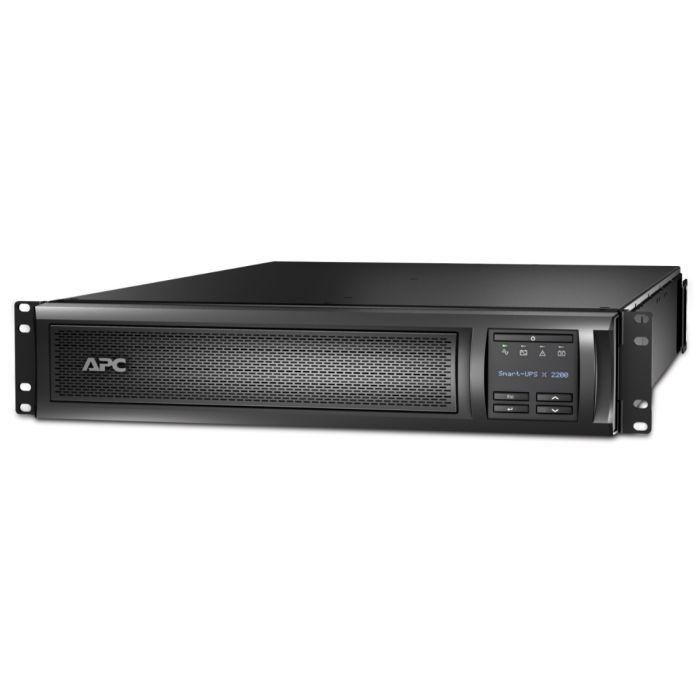

APC Smart-UPS X 2200VA 1980W LCD RM 2U 120V 20A SMX2200RMLV2U - Refurbished
APC Smart-UPS X 2200VA 1980W LCD RM 2U
Model: SMX2200RMLV2U
Input: NEMA L5-30P (120V - 20A)
Output: (6) NEMA 5-15R (Battery Backup), (2) NEMA 5-20R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$849.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 2200VA, 1980W, RM 2U, 20A, 120V
Condition: New batteries, refurbished UPS
Part Number: SMX2200RMLV2U
Maximum output: 1980W / 2200VA
Typical backup time at half load: 25.3 minutes (990 Watts)
Typical backup time at full load: 9.8 minutes (1980 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 2200VA 1980W 20A 120V SMX2200RMLV2U - User Manual
SMX2200RMLV2U - APC Smart-UPS Specifications:
Main:
|
Main Input Voltage |
120V |
||||
|
Other Input Voltage |
100V |
||||
|
Main Output Voltage |
120V |
||||
|
Other Output Voltage |
100V |
||||
|
Rated Power in W |
1980W |
||||
|
Rated Power in VA |
2200VA |
||||
|
Input Connection Type |
|
||||
|
Output Connection Type |
|
||||
|
Number of Rack Unit |
2U |
||||
|
Cable Length |
8 ft (2.44 m) |
||||
|
Number of Cables |
1 |
||||
|
Battery Type |
Lead-Acid Battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Additional Information |
Configurable for 208 or 240 nominal output voltage |
|
Battery Voltage |
96V |
|
Battery Charge Power (Watts) |
233 W rated |
|
Battery Power in VAH |
702 VAh runtime |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC117 |
|
Battery Option |
SMX120RMBP2U 1 2106 VAh |
Â
General:
|
Number of Power Module |
1750 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.35 in (8.5 cm) |
|
Width |
17.00 in (43.18 cm) |
|
Depth |
26.26 in (66.7 cm) |
|
Net Weight |
84.77 lb(US) (38.45 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
|
Efficiency at Full Load |
70 - 153 V |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1980W |
|
Transfer Time |
2-4 ms |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
268 Btu/h |
|
Operating Altitude |
0Â - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0Â - 50000 ft (0.00Â - 15240.00 m) |
|
Relative Humidity |
0Â - 95 % |
|
Storage Relative Humidity |
0Â - 95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
540 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
