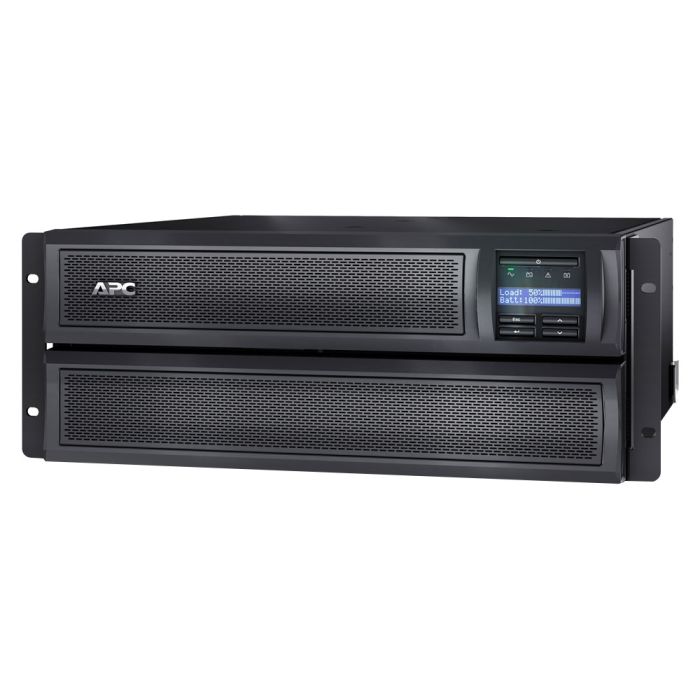

APC Smart-UPS X 2200VA 1980W LCD RM 4U 208V/240V SMX2200HV - Refurbished
APC Smart-UPS X 2200VA 1980W LCD RM 4U - 208V/240V
Model: SMX2200HV
Input: IEC-320 C20 - 208V, 230V, 240V
Output: (8) IEC 320 C13, (2) IEC 320 C19, (2) IEC Jumpers
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,049.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS X 2200VA 1980W, LCD, RM, 4U, 208/240V
Condition: New batteries, refurbished UPS
Part Number: SMX2200HV
Maximum output: 1980W / 2200VA
Typical backup time at half load: 25.3 minutes (990 Watts)
Typical backup time at full load: 9.8 minutes (1980 Watts)
Warranty: 1 year full replacement warranty)
APC Smart-UPS X 2200VA 1980W RM SMX2200HV Manual
SMX2200HV - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
208V |
|||||
|
Other Input Voltage |
220V |
|||||
|
Main Output Voltage |
208V |
|||||
|
Other Output Voltage |
208V |
|||||
|
Rated Power in W |
1980W |
|||||
|
Rated Power in VA |
2200VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Number of Rack Unit |
4U |
|||||
|
Cable Length |
2.00 m |
|||||
|
Number of Cables |
1 |
|||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extended Runtime |
1 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free Slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC143 |
|
Battery Power in VAH |
702 VAh runtime |
|
Battery Charger Power |
233 W rated |
|
Battery Option |
SMX120BP 1 2106 VAh |
General:
|
Number of Power Module |
1750 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended Run |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
17.01 inches (432mm, 43.2cm) |
|
Width |
7.01 inches (178mm, 17.8cm) |
|
Depth |
19.02 inches (483mm, 48.3cm) |
|
Net Weight |
85.01 lbs. (38.56kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
1 |
|
USB Compatible |
Yes |
Input:
|
Input Voltage Limits |
140-280V |
|
Network Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
2200VA |
|
Maximum Configurable Power in W |
1980W |
|
Transfer Time |
6 ms typical : 10 ms maximum |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CE |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
150 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
Multifunction LCD status and control console
|
|
Emergency Power Off |
Yes
|
|
Free Slots |
1
|
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
645 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
