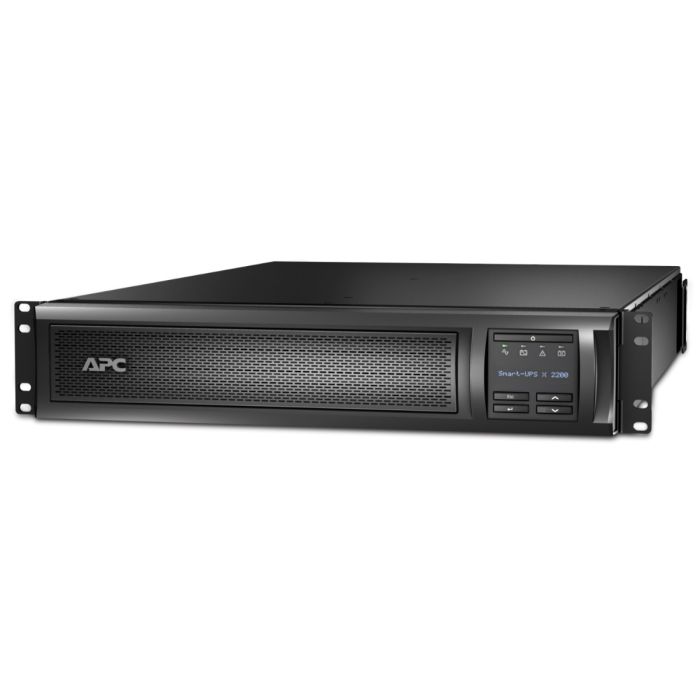

APC Smart-UPS X 2200VA 1980W RM 2U 208V-230V SMX2200RMHV2U - Refurbished
APC Smart-UPS X 2200VA 1980W RM 2U 208V-230V Line-Interactive UPS
Model: SMX2200RMHV2U
Input: IEC C20, BS1363A (UK), Schuko CEE 7/EU1-16P (208V/220V/230V)
Output: (1) IEC 320 C19, (8) IEC 320 C13, (2) IEC Jumpers
Line-Interactive UPS - Pure Sinewave Output
Supports Extended Runtime Battery Packs
New batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$849.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 2200VA RM 2U 208V-230V
Condition: New batteries, refurbished UPS
Part Number: SMX2200RMHV2U
Maximum output: 1980W /Â 2200VA
Topology: Line-Interactive with Automatic Voltage Regulation (AVR)
Waveform: Pure Sine Wave
Typical backup time at half load:Â 25.17 minutes (990 Watts)
Typical backup time at full load: 9.45 minutes (1980 Watts)
Warranty: 1 Year Full Replacement Warranty Included
Description: The APC Smart-UPS X SMX2200RMHV2U is a line-interactive UPS designed to provide reliable 2200VA / 1980W power protection for servers, networking equipment, storage systems, and other mission-critical IT applications. It features pure sine wave output, Automatic Voltage Regulation (AVR), a multifunction LCD display, hot-swappable lead-acid batteries, SmartSlot expansion for optional network management, and extended runtime capability with external battery packs. Equipped with IEC C20 input, (8) IEC C13, (1) IEC C19, and (2) IEC jumper outputs, this refurbished UPS includes new batteries, rack mounting brackets, and is backed by a 1-Year Full Replacement Warranty.
Â
Â
APC Smart-UPS X 2200VA 1980W RM 2U SMX2200RMHV2U - User Manual
Â
Â
SMX2200RMHV2U - APC Smart-UPS X 2200VA RM Specifications:
| Product Overview | Â |
| Power Rating | 2200VA / 1980W |
| UPS Topology | Line-Interactive |
| Form Factor | Rackmount / Tower Convertible |
| Rack Height | 2U |
| Input Voltage | 208V / 220V / 230V |
| Output Voltage | 208V / 220V / 230V |
| Waveform Type | Pure Sine Wave |
| Input Connection | IEC C20 |
| Output Receptacles | (8) IEC C13 |
| Â | (1) IEC C19 |
| Â | (2) IEC Jumpers |
| Battery Type | Sealed Lead-Acid |
| Hot-Swappable Batteries | Yes |
| Automatic Voltage Regulation (AVR) | Yes |
| LCD Status Display | Multifunction LCD |
| SmartSlot Expansion | 1 SmartSlot |
| Extended Runtime Support | Yes |
| Included Accessories | Rack Mounting Brackets, USB Cable, RS-232 Cable |
| Â | Â |
| User Interface, Alerts & Controls | Â |
| Front Panel Display | Multifunction LCD with UPS status, load, battery, alarms and configuration |
| Front Panel Indicators | Online, On Battery, Replace Battery, Overload, Fault |
| User Interface | LCD Display with Navigation Buttons |
| Audible Alarm | Configurable Audible Alarms |
| Alarm Management | Battery, Low Battery, Overload and Fault Notifications |
| Controls | Power ON/OFF, LCD Navigation and Configuration |
| Emergency Power Off (EPO) | Yes |
| Status Monitoring | Input/Output Voltage, Load, Runtime, Battery Status |
| Battery Status Indicators | Runtime, Charge Level, Battery Health |
| Automatic Self-Test | Yes |
| Â | Â |
| Communications & Management | Â |
| SmartSlot Expansion | 1 Available |
| USB Port | Yes |
| Serial Port | RJ-45 Serial |
| Communication Interfaces | USB, Serial, SmartSlot, EPO |
| Optional Network Management | APC Network Management Card Supported |
| Remote Monitoring | Supported with Optional NMC |
| Management Software | APC PowerChute Business Edition |
| Event Logging | Supported |
| Firmware Updates | Supported |
| Watchdog / Auto Restart | Supported |
| Remote Shutdown | Supported |
| Â | Â |
| Input | Â |
| Input Voltage | 208V / 220V / 230V |
| Input Frequency | 50/60 Hz ±3% Auto-Sensing |
| Input Voltage Range | 140-280V |
| Input Connection | IEC C20 |
| Number of Power Cords | 1 |
| Input Phase | Single Phase |
| Cable Length | 6 ft (1.8 m) |
| Â | Â |
| Output | Â |
| Output Power Capacity | 2200VA / 1980W |
| Maximum Configurable Power | 2200VA / 1980W |
| Waveform Type | Pure Sine Wave |
| Transfer Time | 2-4 ms Typical, 6 ms Typical / 10 ms Maximum |
| Output Frequency | 50/60 Hz Synchronized to Utility |
| Output Voltage Regulation | Less than ±5% |
| Harmonic Distortion | Less than 5% |
| Surge Energy Rating | 645 Joules |
| Output Connections | (8) IEC C13, (1) IEC C19, (2) IEC Jumpers |
| Extended Runtime | Supported |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Type | Lead-Acid |
| Replacement Battery | APCRBC117 |
| Battery Quantity | 1 |
| Typical Runtime at Half Load | 25.17 Minutes (990W) |
| Typical Runtime at Full Load | 9.45 Minutes (1980W) |
| Typical Recharge Time | 3 Hours |
| Battery Life | 3-5 Years |
| Battery Charge Power | 233W |
| Hot-Swappable Batteries | Yes |
| Extendable Runtime | Yes |
| External Battery Support | Yes |
| Â | Â |
| Physical | Â |
| Height | 3.35 in (85 mm) |
| Width | 17.0 in (432 mm) |
| Depth | 26.26 in (667 mm) |
| Net Weight | 82.28 lbs (37.32 kg) |
| Rack Height | 2U |
| Mounting | Rackmount / Tower Convertible |
| Color | Black |
| USB Compatible | Yes |
| Included Rack Kit | Yes |
| Â | Â |
| Environmental | Â |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Relative Humidity | 0-95% Non-Condensing |
| Storage Humidity | 0-95% Non-Condensing |
| Operating Altitude | Up to 10,000 ft (3,048 m) |
| Storage Altitude | Up to 50,000 ft (15,240 m) |
| Audible Noise | 55 dBA |
| Heat Dissipation | 150 BTU/hr |
| Â | Â |
| Conformance | Â |
| Certifications | CE, EAC, IRAM, RCM, TISI, VDE |
| Standards | EN/IEC 62040-1, EN/IEC 62040-2 |
| Condition | New Batteries, Refurbished UPS |
| Warranty | 1 Year Full Replacement Warranty Included |
