FREE

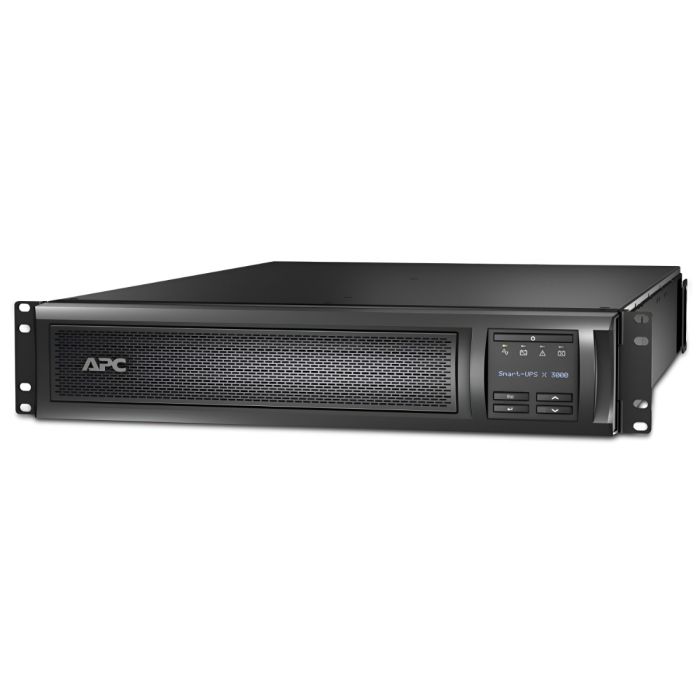

APC Smart-UPS X 3000VA 2700W LCD 208/240V Output: C19 & (8)C13, SMX3000RMHV2U - Refurb
APC Smart-UPS X 3000VA 2700W LCD RM 2U
Model: SMX3000RMHV2U
Input: IEC-320 C20
Output: (1) IEC 320 C19, (8) IEC 320 C13
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,199.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS X 3000VA 2700W, LCD, RM, 2U, 208/240V
Condition: New batteries, refurbished UPS
Part Number: SMX3000RMHV2U
Maximum output: 2700W / 3000VA
Typical backup time at half load: 18.1 minutes (1350 Watts)
Typical backup time at full load: 6.3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty)
APC Smart-UPS X 3000VA 2700W RM SMX3000RMHV2U - User Manual
SMX3000RMHV2U - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
208V |
|||||
|
Other Input Voltage |
220V |
|||||
|
Main Output Voltage |
230 V |
|||||
|
Other Output Voltage |
208V |
|||||
|
Rated Power in W |
2700W |
|||||
|
Rated Power in VA |
3000VA |
|||||
|
Input Connection Type |
|
|||||
|
Output Connection Type |
|
|||||
|
Number of Rack Unit |
2U |
|||||
|
Cable Length |
6 ft (1.83 m) |
|||||
|
Number of Cables |
1 |
|||||
|
Battery Type |
Lead-Acid battery |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical recharge time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3-5 years |
|
Replacement Battery |
APCRBC117
|
|
Battery Power in VAH |
738 VAh runtime |
|
Battery Charge Power (Watts) |
245 W rated |
|
Battery Option |
SMX120RMBP2U 1 2214 VAh |
General:
|
Number of Power Module |
2400 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Extended Run |
|
Redundant |
No |
Physical:
|
Colour |
Black |
|
Height |
3.36 inches (85mm, 8.5cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
26.26 inches (667mm, 66.7cm) |
|
Net Weight |
82.1 lbs. (37.32kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at Full Load |
140-280V |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest factor |
3 : 1 |
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
3000VA |
|
Maximum Configurable Power in W |
2700W |
|
Transfer Time |
2-4 ms |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
CE |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
184 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
|
Storage Altitude |
0-50000 ft (0.00-15240.00 m) |
|
Relative Humidity |
0-95% |
|
Storage Relative Humidity |
0-95% |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console
|
|
Emergency Power Off (EPO) |
Yes
|
|
Free Slots |
1
|
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
645 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
