Description
Details
Manufacturer: APC

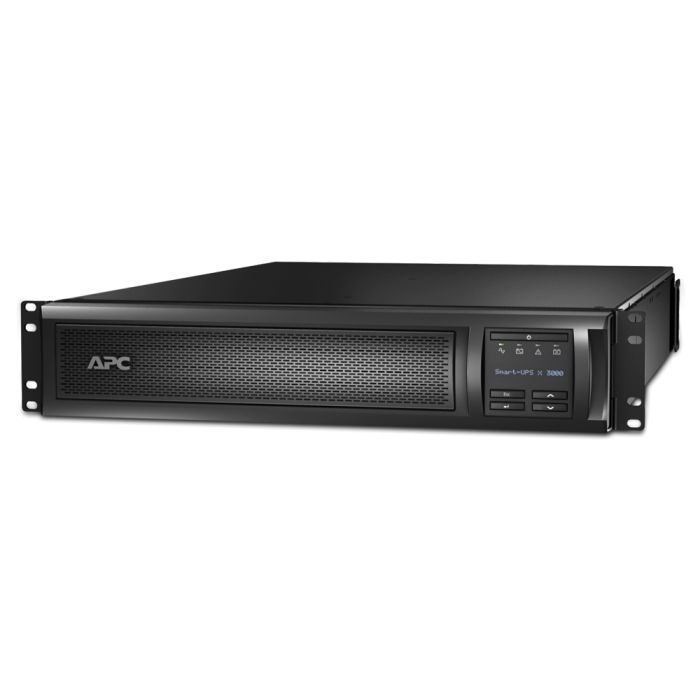

Model: APC Smart-UPS X 3000VA 2700W, LCD, RM, 2U, 200-240V
Condition: New batteries, refurbished UPS
Part Number: SMX3000RMHV2UNC
Maximum output: 2700W / 3000VA
Typical backup time at half load: 18.1 minutes (1350 Watts)
Typical backup time at full load: 6.3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 3000VA 2700W LCD RM SMX3000RMHV2UNC User's Manual
SMX3000RMHV2UNC - APC Smart-UPS X Specifications:
Main:
Main Input Voltage |
208 V |
|
Other Input Voltage |
220 V |
|
Main Output Voltage |
230 V |
|
Other Output Voltage |
208 V |
|
Rated power in W |
2700W |
|
Rated power in VA |
3000VA |
|
Input Connection Type |
|
|
Output Connection Type |
|
|
Number of Rack Unit |
2U |
|
Cable Length |
8 ft (2.44 m) |
|
Number of Cables |
1 |
|
Battery Type |
Lead-acid Battery |
General:
Number of Power Module |
2400 |
Number of power module free slots |
0 |
Number of power module filled slots |
0 |
Product Web Sub-Family |
Network card pre-installed |
Redundant |
No |
Physical:
Colour |
Black |
Height |
3.35 in (8.5 cm) |
Width |
17.01 in (43.2 cm) |
Depth |
26.26 in (66.7 cm) |
Net Weight |
82.28 lb(US) (37.32 kg) |
Mounting Location |
Front |
Mounting Preference |
Lower |
Mounting Mode |
Rack-mounted |
Two Post Mountable |
0 |
USB Compatible |
Yes |
Input:
Efficiency at Full Load |
140 - 280 V |
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
Harmonic Distortion |
Less than 5% |
Maximum configurable power in VA |
3000VA |
Max Configurable Power (Watts) |
2700W |
Transfer Time |
2-4 ms |
Topology |
Line Interactive |
Waveform Type |
Sine wave |
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
Product Certifications |
C-tick |
Standards |
EN/IEC 62040-1:2019/A11:2021 |
Environmental:
Acoustic Level |
55 dBA |
Heat Dissipation |
184 Btu/h |
Operating Altitude |
0 - 10000 ft |
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45°C) |
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
Relative Humidity |
0 - 95% |
Storage Relative Humidity |
0 - 95% |
Batteries & Runtime:
Extendable Run Time |
1 |
Included Battery Modules |
0
|
Battery Slots Empty |
0 |
Typical Recharge Time |
3 h |
RBC Quantity |
1 |
Battery Life |
3 - 5 years |
Replacement Battery |
APCRBC117 |
Battery power in VAH |
738 VAh runtime |
Battery Charge Power (Watts) |
245 W rated |
Battery Option |
SMX120RMBP2U 1 2214 VAh |
Communications & Management:
Control Panel |
Multi-function LCD status and control console |
Emergency Power Off (EPO) |
Yes |
Free Slots |
0
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays
|
Surge Protection and Filtering:
Surge Energy Rating |
645 J
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
Additional Info
Additional Info
Manufacturer | APC |
---|---|
Form Factor | Rackmount |
Waveform in Battery Mode | Pure Sinewave |
Input Voltage | 208V AC, 230V AC (EU) |
Output (VA) | 3000VA |
Output Voltage | 230V AC (EU) |
PDU Total Outlets | No |
