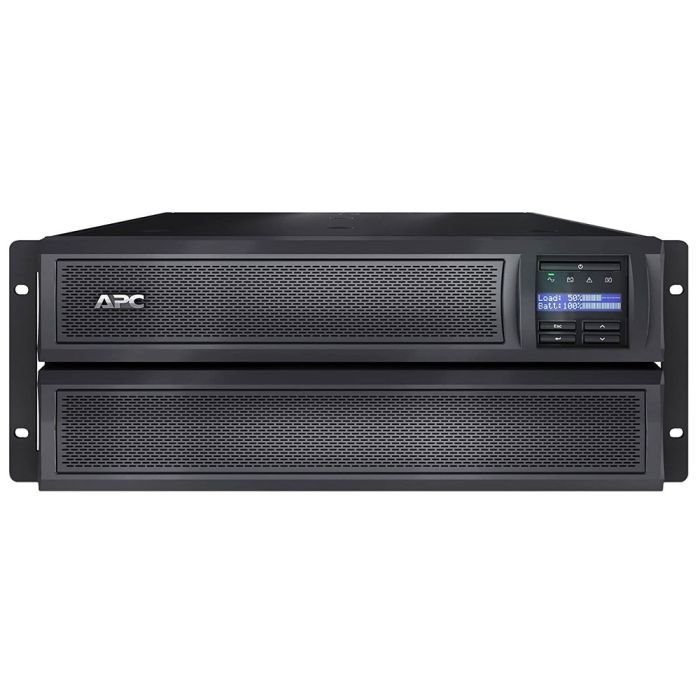

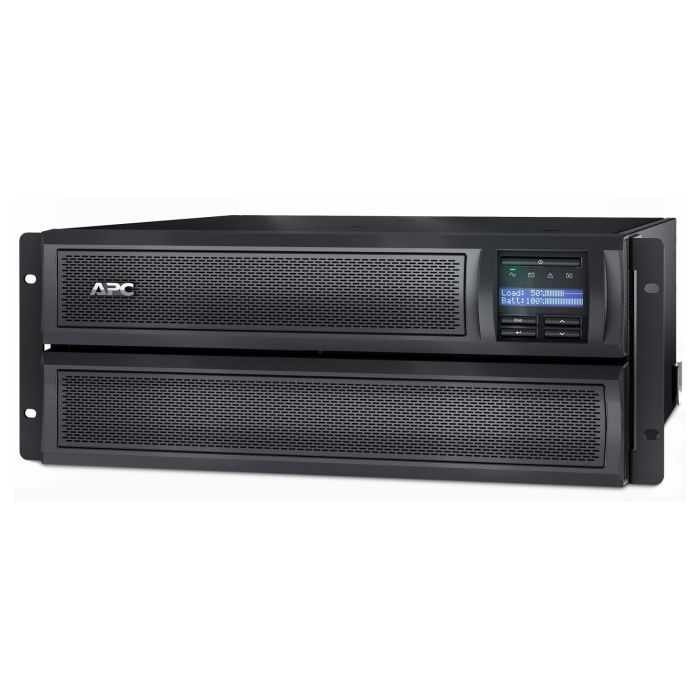

APC Smart-UPS X 3000VA 2700W LCD RM 4U 120V 30A SMX3000LV - Refurbished
APC Smart-UPS X 3000VA 2700W LCD Rackmount 4U 120V
Model: SMX3000LV
Input: NEMA L5-30P (120V, 30A)
Output: (6) NEMA 5-15R, (3) NEMA 5-20R, (1) NEMA L5-30R
Line-Interactive UPS with Pure Sine Wave Output
Supports Extended Runtime Battery Packs
SmartSlot for Optional Network Management Card
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$1,299.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X 3000VA 2700W, LCD, RM, 4U 120V
Condition: New Batteries, Refurbished UPS
Part Number: SMX3000LV
Maximum output: 2700W / 3000VA
Typical backup time at half load: 18 minutes (1350 Watts)
Typical backup time at full load: 6.3 minutes (2700 Watts)
Warranty:Â 1 Year Full Replacement Warranty
Description: The APC Smart-UPS X SMX3000LV is a high-performance line-interactive UPS designed to provide reliable power protection for servers, storage systems, network switches, VoIP equipment, and other mission-critical IT applications. Delivering up to 2700W of pure sine wave output, it features Automatic Voltage Regulation (AVR) to stabilize incoming utility power without discharging the batteries, maximizing battery life and system availability. The multifunction LCD display provides real-time monitoring of input/output voltage, load level, runtime, battery status, and operating conditions. Equipped with a SmartSlot for optional network management, USB and RS-232 communication ports, Emergency Power Off (EPO), and support for SMX120BP external battery packs, the SMX3000LV offers scalable runtime and advanced remote management capabilities. Its convertible 4U rack/tower design provides flexible deployment for data centers, server rooms, and network closets.
Â
Â
APC Smart-UPS X 3000VA 2700W LCD SMX3000LV - User Manual
Â
SMX3000LV - APC Smart-UPS X Specifications:
| Product Overview | Â | ||||||
| UPS Topology | Line-Interactive | ||||||
| Form Factor | Rack/Tower Convertible | ||||||
| Rack Height | 4U | ||||||
| Power Rating | 2880VA / 2700W | ||||||
| Input Voltage | 120V | ||||||
| Output Voltage | 120V | ||||||
| Waveform Type | Pure Sine Wave | ||||||
|
Input Connection Type |
|
||||||
|
Output Connection Type |
|
||||||
| Automatic Voltage Regulation (AVR) | Yes | ||||||
| LCD Display | Multifunction LCD Status Display | ||||||
| SmartSlot | One Expansion Slot | ||||||
| Extended Runtime | Supported | ||||||
| Replacement Battery | APCRBC143 | ||||||
| Compatible External Battery Packs | SMX120BP | ||||||
| Â | Â | ||||||
| User Interface, Alerts & Controls | Â | ||||||
| Front Panel Display | Multifunction LCD Status & Configuration Display | ||||||
| LCD Information | Input Voltage, Output Voltage, Load %, Load Watts, Battery Capacity, Runtime Remaining, Operating Mode, Event Log, Diagnostics and Configuration | ||||||
| LED Indicators | Online, On Battery, Replace Battery, Overload | ||||||
| Control Buttons | Navigation Keys, ENTER, ESC, Power ON/OFF | ||||||
| Audible Alarm | On Battery, Low Battery, Overload, Replace Battery, UPS Fault | ||||||
| Alarm Management | User Configurable Alarm Delays and Mute Function | ||||||
| Automatic Self-Test | Automatic & User Initiated | ||||||
| Automatic Voltage Regulation | Yes | ||||||
| Cold Start Capability | Yes | ||||||
| Emergency Power Off (EPO) | Yes | ||||||
| LCD Configuration | User Configurable | ||||||
| Intelligent Battery Management | Yes | ||||||
| Â | Â | ||||||
| Communications & Management | Â | ||||||
| Interface Ports | USB, RS-232 Serial, SmartSlot, EPO | ||||||
| SmartSlot | One Available Expansion Slot | ||||||
| Compatible Network Cards | AP9630, AP9631, AP9635 | ||||||
| USB Communication | Yes | ||||||
| RS-232 Communication | Yes | ||||||
| Remote Monitoring | Supported with Optional Network Management Card | ||||||
| Management Software | PowerChute Business Edition | ||||||
| Graceful Server Shutdown | Supported | ||||||
| Event Logging | Yes | ||||||
| Email Notifications | Supported with Network Management Card | ||||||
| SNMP Management | Supported with AP9630/AP9631 | ||||||
| Firmware Upgrade | Supported | ||||||
| Remote Reboot | Supported via Optional NMC | ||||||
| Environmental Monitoring | Supported with Optional Sensors | ||||||
| UPS Status Monitoring | Input, Output, Runtime, Load, Battery, Events | ||||||
| Â | Â | ||||||
| Input | Â | ||||||
| Nominal Input Voltage | 120V | ||||||
| Other Supported Input Voltages | 100V, 110V, 127V | ||||||
| Input Frequency | 50/60 Hz ±3 Hz Auto-Sensing | ||||||
| Input Voltage Range | 70-153V | ||||||
| Input Connection | NEMA L5-30P | ||||||
| Input Cord Length | 8 ft (2.44 m) | ||||||
| Â | Â | ||||||
| Output | Â | ||||||
| Rated Output Power | 2880VA / 2700W | ||||||
| Maximum Output Current | 15A | ||||||
| Waveform | Pure Sine Wave | ||||||
| Output Frequency | 50/60 Hz ±3 Hz | ||||||
| Harmonic Distortion | Less than 5% | ||||||
| Transfer Time | 2-4 ms Typical (8 ms Maximum) | ||||||
| Output Receptacles | (6) NEMA 5-15R, (3) NEMA 5-20R, (1) NEMA L5-30R | ||||||
| Â | Â | ||||||
| Batteries & Runtime | Â | ||||||
| Battery Type | Sealed Lead-Acid | ||||||
| Replacement Battery | APCRBC143 | ||||||
| Typical Runtime @ Half Load | 18 Minutes (1350W) | ||||||
| Typical Runtime @ Full Load | 6.3 Minutes (2700W) | ||||||
| Typical Recharge Time | 3 Hours | ||||||
| Expected Battery Life | 3-5 Years | ||||||
| Expandable Runtime | Yes | ||||||
| Compatible Battery Packs | SMX120BP | ||||||
| Battery Option | SMX120BP 1 2214 VAh SMX120BP 2 3690 VAh SMX120BP 3 5166 VAh SMX120BP 4 6642 VAh SMX120BP 6 9594 VAh SMX120BP 8 12546 VAh SMX120BP 10 15498 VAh |
||||||
| Battery Charge Power | 245 Watts | ||||||
| User Replaceable Batteries | Yes | ||||||
| Hot-Swappable Batteries | Yes | ||||||
| Â | Â | ||||||
| Physical | Â | ||||||
| Form Factor | Rack/Tower Convertible | ||||||
| Rack Height | 4U | ||||||
| Height | 17.0 in (432 mm) | ||||||
| Width | 7.0 in (178 mm) | ||||||
| Depth | 19.0 in (483 mm) | ||||||
| Weight | 85.2 lbs (38.64 kg) | ||||||
| Color | Black | ||||||
| Mounting | Rack or Tower | ||||||
| Two-Post Mountable | Yes | ||||||
| Included Accessories | Rack Rails, Rack Brackets, Tower Feet, USB Cable, RS-232 Cable, Software CD, Documentation | ||||||
| Â | Â | ||||||
| Environmental | Â | ||||||
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | ||||||
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) | ||||||
| Operating Humidity | 0-95% Non-Condensing | ||||||
| Storage Humidity | 0-95% Non-Condensing | ||||||
| Operating Altitude | Up to 10,000 ft | ||||||
| Storage Altitude | Up to 50,000 ft | ||||||
| Heat Dissipation | 276 BTU/hr | ||||||
| Acoustic Noise | 55 dBA | ||||||
| Â | Â | ||||||
| Conformance | Â | ||||||
| Product Certifications | BSMI, CSA, NOM, TÃœV, VCCI Class A | ||||||
| Surge Protection | 540 Joules | ||||||
| Noise Filtering | Full-Time Multi-Pole Noise Filtering, IEEE Surge Suppression, Zero Clamping Response | ||||||
| Condition | New Batteries, Refurbished UPS | ||||||
| Warranty | 1 Year Full Replacement Warranty Included |
