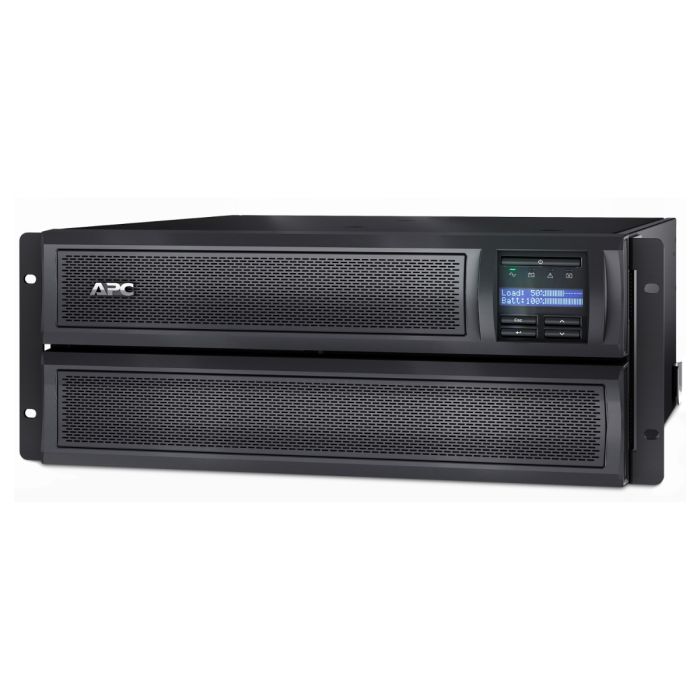

APC Smart UPS X 3000VA 2700W LCD RM 4U 208V/240V 20A SMX3000HVT - Refurbished
APC Smart UPS X 3000VA 2700W RM 4U 208V
Model: SMX3000HVT
Input:Â NEMA L6-20P (208V - 20A)
Output: (2) IEC 320 C19, (2) NEMA L6-20R, (4) IEC 320 C13
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$1,299.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS X 3000VA 2700W LCD RM 4U, 208V
Condition: New batteries, refurbished UPS
Part Number: SMX3000HVT
Maximum output:Â 2700W / 3000VA
Typical backup time at half load: 15.70 minutes (1350 Watts)
Typical backup time at full load: 6.3 minutes (2700 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS X 3000VA 2700W LCD RM SMX3000HVT - User Manual
SMX3000HVT - APC Smart-UPS X Specifications:
Main:
|
Main Input Voltage |
208V |
|||||||
|
Other Input Voltage |
220 V |
|||||||
|
Main Output Voltage |
208V |
|||||||
|
Other Output Voltage |
220 V |
|||||||
|
Rated Power in W |
2700W |
|||||||
|
Rated Power in VA |
3000VA |
|||||||
|
Input Connection Type |
|
|||||||
|
Output Connection Type |
|
|||||||
|
Number of Rack Unit |
4U |
|||||||
|
Number of Cables |
1 |
|||||||
|
Battery Type |
Lead-Acid Battery |
Â
General:
|
Number of Power Module |
2400 |
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-family |
Extended Run |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
17.01 in (43.2 cm) |
|
Width |
7.01 in (17.8 cm) |
|
Depth |
19.02 in (48.3 cm) |
|
Net Weight |
85.19 lb(US) (38.64 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two post mountable |
1 |
|
USB Compatible |
Yes |
Input:
|
Efficiency at full load |
141 - 255 V |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
3 : 1 |
|
Harmonic Distortion |
Less than 5% |
|
Maximum Configurable Power in VA |
3000VA |
|
Max Configurable Power (Watts) |
2700W |
|
Transfer Time |
2-4 ms |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
C-tick |
Environmental:
|
Acoustic Level |
55 dBA
|
|
Heat Dissipation |
184 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
APCRBC143 |
|
Battery power in VAH |
738 VAh runtime |
|
Battery Charge Power (Watts) |
245 W rated |
|
Battery Option |
SMX120BP 1 2214 VAh |
Communications & Management:
|
Control Panel |
Multi-function LCD status and control console |
|
Emergency Power Off (EPO) |
Yes |
|
Free Slots |
1 |
|
Control Panel |
LED status display with on line : on battery : replace battery and overload indicators |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
645 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m
|
