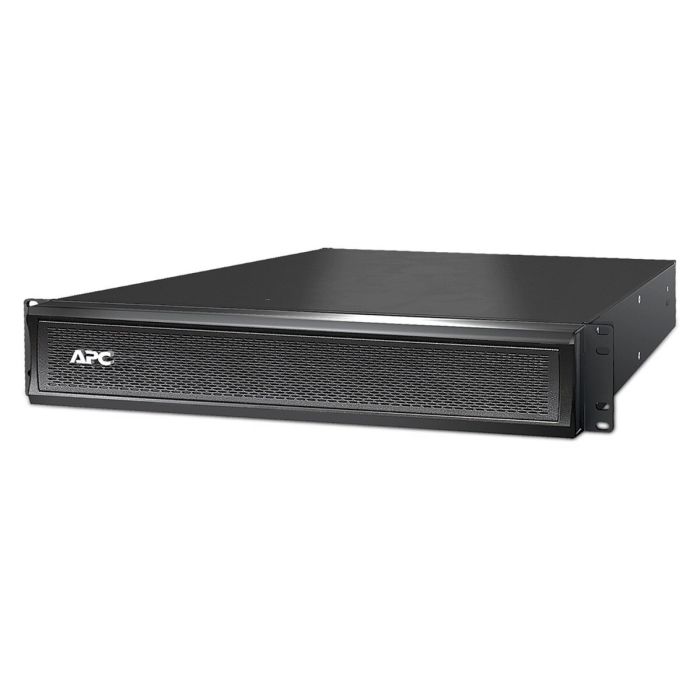

APC Smart-UPS X-Series Systems 48V RM 2U External Battery Pack SMX48RMBP2U - Refurbished
APC Smart-UPS X-Series 48VDC 864VAh RM 2U External Battery Pack
Model: SMX48RMBP2U
48VDC External Battery Pack - 864VAh
Extended Runtime Battery Cabinet
Replacement Battery: (2) APCRBC115
Compatible with Select APC Smart-UPS X-Series Systems
RM 2U Design
New Batteries, Refurbished Cabinet
1 Year Warranty Included
$599.99
In stock
Manufacturer: APC
Model: APC Smart-UPS X-Series 48VDC 864VAh RM 2U External Battery Pack
Condition: Refurbished Battery Cabinet with New Batteries
Part Number: SMX48RMBP2U
Battery Capacity: 864VAh
Battery Voltage: 48VDC
Battery Type: Maintenance-Free Sealed Lead-Acid
Replacement Battery: (2) APCRBC115
Form Factor: Rack / Tower Convertible 2U
Warranty: 1 Year Full Replacement Warranty Â
Description: The APC Smart-UPS X SMX48RMBP2U is a 48VDC / 864VAh external battery pack designed to extend runtime for compatible APC Smart-UPS X-Series UPS systems. It uses (2) APCRBC115 replacement battery cartridges and features an enclosed, maintenance-free lead-acid battery system. APC's current product data confirms the 48VDC rating, 2U configuration, APCRBC115 replacement battery, and quantity of two replacement battery cartridges.
Â
Â
Â
APC Smart-UPS X-Series 48V RM 2U Battery Pack SMX48RMBP2U - User's Manual
Â
Â
Â
Â
SMX48RMBP2U - APC Smart-UPS X-Series 48VDCÂ Specifications
| Main | Â |
| Manufacturer | APC |
| Product Family | Smart-UPS X-Series / Smart-UPS Battery Systems |
| Model | SMX48RMBP2U |
| Product Type | External Battery Pack |
| Battery System Voltage | 48VDC |
| Battery Capacity | 864VAh |
| Form Factor | Rack / Tower Convertible |
| Rack Height | 2U |
| Battery Type | Lead-Acid |
| Application | Extended Runtime for Compatible APC Smart-UPS X Systems |
| Official Product Description | APC Smart-UPS X-Series External Battery Pack Rack/Tower 48V, 864VAh, 2U |
| Â | Â |
| Input & Output | Â |
| Nominal Input Voltage | 48VDC |
| Battery Output Voltage | 48VDC |
| DC System Voltage | 48VDC |
| Connection Type | External Battery Connection to Compatible Smart-UPS X UPS |
| Function | Provides Additional Battery Capacity / Extended Runtime |
| Â | Â |
| Batteries & Runtime | Â |
| Battery Chemistry | Lead-Acid |
| Battery Type | Maintenance-Free Sealed Lead-Acid |
| Battery Mounting | Enclosed Battery Cartridge |
| Battery Voltage | 48VDC |
| Battery Volt-Amp-Hour Capacity | 864VAh |
| Replacement Battery | APCRBC115 |
| Replacement Battery Quantity | (2) |
| RBC Quantity | (2) |
| Battery Filled Slots | 0 |
| Battery Free Slots | 0 |
| User-Replaceable Batteries | Yes |
| Expected Battery Life | 3–5 Years |
| Battery Replacement Recommendation | Replace UPS internal and external batteries together when applicable |
| Extended Runtime | Yes |
| Runtime Scalability | Runtime increases when compatible external battery packs are added to supported UPS systems |
| Official Battery Configuration | 48V lead-acid system with enclosed battery cartridges and (2) APCRBC115 replacement batteries |
| Â | Â |
| Compatibility | Â |
| Compatible UPS Family | Select APC Smart-UPS X-Series Extended Runtime UPS Systems |
| UPS Compatibility | Model-dependent; UPS must support 48VDC SMX external battery packs |
| Smart-UPS Battery System | Yes |
| Rackmount UPS Compatibility | Supported with select compatible Smart-UPS X rackmount models |
| Tower UPS Compatibility | Supported with select compatible Smart-UPS X systems |
| Extended Runtime Application | Yes |
| Â | Â |
| Installation & Mounting | Â |
| Rackmount Installation | Yes |
| Tower Installation | Optional |
| Rack / Tower Convertible | Yes |
| Rack Height | 2U |
| Rack Width | Standard 19-Inch Rack |
| Mounting Mode | Rack-Mounted |
| Battery Cartridge Installation | Enclosed |
| Rack Mounting Brackets | Supported |
| Product Images | APC's product data sheet shows both rackmount and vertical tower orientations for the SMX48RMBP2U |
| Â | Â |
| Physical | Â |
| Color | Black |
| Height | 3.5 in (89 mm) |
| Width | 17.008 in (432 mm) |
| Depth | 19.3 in (490 mm) |
| Rack Height | 2U |
| Net Weight | 63.14 lb (28.64 kg) |
| Physical Configuration | Rack / Tower |
| Official Dimensions | 3.5 × 17.008 × 19.3 in (89 × 432 × 490 mm) |
| Â | Â |
| Environmental & Sustainability | Â |
| Removable Battery | User Replaceable |
| EU RoHS | Compliant |
| Recycled Plastic Content | 15% |
| Recycled Cardboard Packaging | Yes |
| Packaging Without Single-Use Plastic | No |
| Recyclability Potential | 48% |
| Take-Back Program | Yes |
| REACh | Contains Substances of Very High Concern above the reporting threshold |
| WEEE | Subject to Specific Waste Collection Requirements in Applicable EU Markets |
| Total Lifecycle Carbon Footprint | 163 kg CO2 eq. |
| Manufacturing Carbon Footprint | 131 kg CO2 eq. |
| Distribution Carbon Footprint | 9 kg CO2 eq. |
| Installation Carbon Footprint | 10 kg CO2 eq. |
| Use Phase Carbon Footprint | 124 kg CO2 eq. |
| End-of-Life Carbon Footprint | 12 kg CO2 eq. |
| Environmental Data Verification | APC specifies 15% recycled plastic, recycled-cardboard packaging, 48% recyclability potential, user-replaceable battery and take-back availability |
| Â | Â |
| General | Â |
| Product Range | Smart-UPS Battery Systems |
| Product Component Type | External Battery Pack |
| Battery System | APC Smart-UPS X-Series |
| Battery Voltage | 48VDC |
| Battery Capacity | 864VAh |
| Rack Units | 2U |
| Replacement Battery | APCRBC115 |
| Replacement Battery Quantity | (2) |
| Battery Cartridge Type | Enclosed |
| Extended Runtime Capability | Yes |
| Hot-Swappable Battery System | Designed for serviceable external battery operation with compatible Smart-UPS X systems |
| Â | Â |
| Condition & Warranty | Â |
| Cabinet Condition | Refurbished |
| Battery Condition | New Batteries |
| Warranty | 1 Year Full Replacement Warranty |
