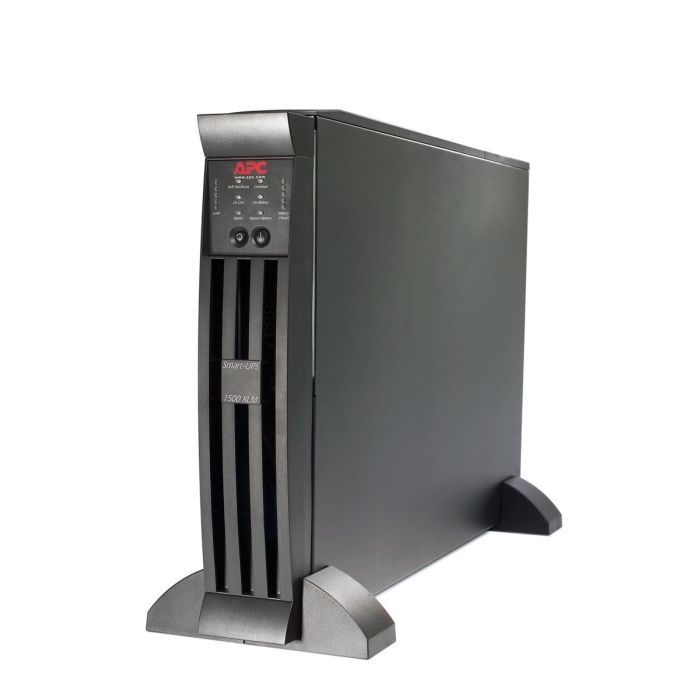

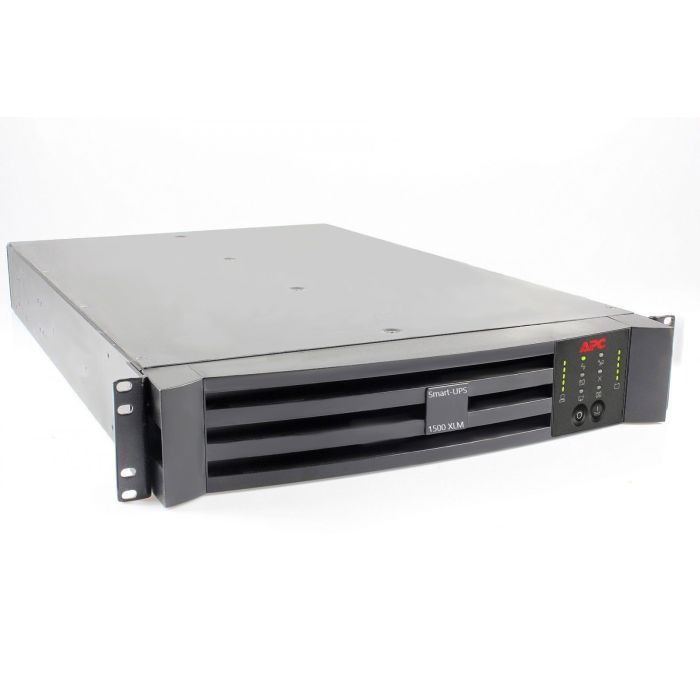

APC Smart-UPS XL 1500VA 1425W RM 2U 120V Output: (8) 5-15R SUM1500RMXL2U - Refurbished
APC Smart-UPS XL 1500VA 1425W RM 2U
Model: SUM1500RMXL2U
Input: NEMA 5-15P (120V - 15A)
Output: (8) 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$699.99
In stock
Manufacturer: APC
Model: APC Smart-UPS XL 1500VA 1425W, RM, 2U, 120V - Configured as a rackmount UPS.
Condition: New batteries, refurbished UPS
Part Number: SUM1500RMXL2U
Maximum output: 1425W / 1500VA
Typical backup time at half load: 27.0 minutes (712.50 Watts)
Typical backup time at full load: 11.0 minutes (1425 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 1500VA 1425W SUM1500RMXL2U User's Manual
SUM1500RMXL2U - APC Smart-UPS XL Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Rated Power in W |
1425W |
||
|
Rated Power in VA |
1440VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
2U |
||
|
Cable Length |
10 ft (3.05 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
VRLA |
Batteries & Runtime:
|
Extendable Run Time |
1 |
|
Included Battery Modules |
0
|
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC43 |
|
Battery Power in VAH |
600 VAh runtime |
|
Battery Charge Power (Watts) |
199 W rated |
|
Battery Option |
SUM48RMXLBP2U 1 1440 VAh |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Product Web Sub-Family |
Network card pre-installed |
|
Redundant |
No |
Physical:
|
Color |
Black |
|
Height |
3.4 inches (86mm, 8.6cm) |
|
Width |
17.0 inches (432mm, 43.2cm) |
|
Depth |
26.7 inches (678mm, 67.8cm) |
|
Net Weight |
103.22 lbs. (46.82kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
75-154 V adjustable 82-147 V |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Bypass Type |
Internal Bypass (Automatic and Manual) |
|
Maximum Configurable Power in VA |
1440VA |
|
Max Configurable Power (Watts) |
1425W |
|
Maximum Output Current |
24 A |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
50/60 Hz +/- 3 Hz sync to mains |
Conformance:
|
Product Certifications |
BSMI |
Environmental:
|
Acoustic Level |
55 dBA |
|
Heat Dissipation |
300 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C)
|
|
Ambient Air Temperature for Storage |
23 - 131°F (-5 - 55°C) |
|
Storage Altitude |
0 - 30000 ft (0.00 - 9144.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : Overload and Bypass Indicators
|
|
Emergency Power Off (EPO) |
Optional |
|
Free slots |
0 |
|
Pre-Installed SmartSlot™ Cards |
Network management card 2 with environmental monitoring |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
480 J
|
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
