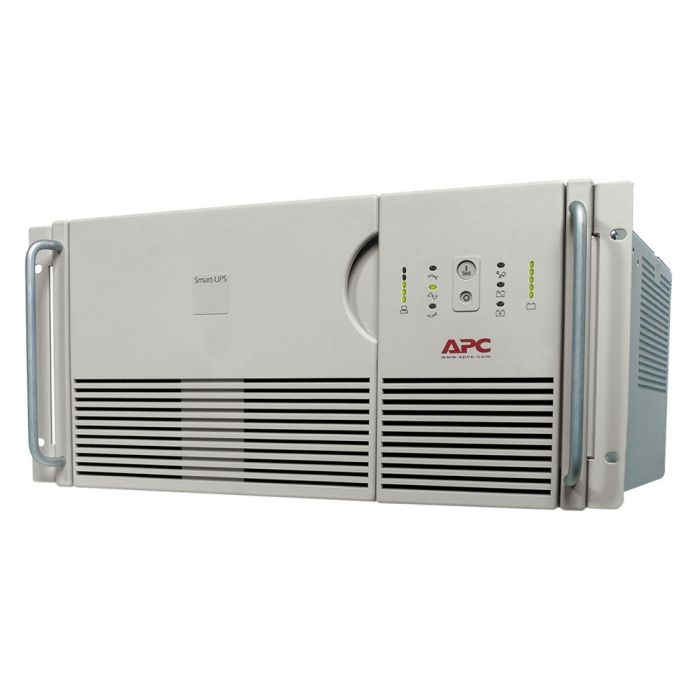

APC Smart-UPS XL 2200VA 1600W RM 5U 120V SU2200RMXL - Refurbished
APC Smart-UPS XL 2200VA 1600W RM 5U
Model: SU2200RMXL
Input: NEMA L5-30P (120V - 30A)
Output: (8) NEMA 5-15R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$599.99
Back Order
Manufacturer: APC
Model: APC SMART-UPS XL 2200VA 1600W RM 5U 120V
Condition: New batteries, refurbished UPS
Part Number: SU2200RMXL
Maximum output: 1600W / 2200VA
Typical backup time at half load: 34 minutes (800 Watts)
Typical backup time at full load: 9.44 minutes (1600 Watts)
Warranty: 1 year full replacement warranty
APC SMART-UPS XL 2200VA 1600W RM 5U 120V SU2200RMXL Manual
SU2200RMXL - APC SMART-UPS XL 2200VA Specifications:
Key Features:
|
Output power capacity |
1.6kW / 2.2kVA |
||
|
Rack Height |
5U |
||
|
Output Connections |
|
||
|
Nominal Output Voltage |
120V |
||
|
Nominal Input Voltage |
120V |
||
|
Input Connections |
|
||
|
Cord Length |
1.83meters |
Output:
|
Max Configurable Power (Watts) |
1.6kW / 2.2kVA |
|
Output Voltage Distortion |
Less than 5% at full load |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal |
|
Load Crest Factor |
up to 5 : 1 |
|
Topology |
Line interactive |
|
Waveform type |
Sine wave |
|
Transfer Time |
2ms typical |
Input:
|
Input frequency |
50/60 Hz +/- 3 Hz (auto sensing) |
|
Input voltage range for main operations |
92 - 147V |
|
Input voltage adjustable range for mains operation |
86 - 154V |
|
Number of Power Cords |
1 |
Batteries and Runtime:
|
Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
|
Typical recharge time |
3hour(s) |
|
Expected Battery Life (years) |
3 - 5 |
|
RBC Quantity |
1 |
|
Battery Charge Power (Watts) |
271 Watts |
|
Extendable Run Time |
1 |
Communications and Management:
|
Interface Port(s) |
DB-9 RS-232, SmartSlot |
|
Control panel |
LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators |
|
Audible Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
|
Emergency Power Off (EPO) |
Optional |
|
Available SmartSlot™ Interface Quantity |
1 |
Surge Protection and Filtering:
|
Surge energy rating |
480 Joules |
|
Filtering |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449 |
Physical:
|
Maximum Height |
8.76 inches (222mm, 22.2cm)
|
|
Maximum Width |
19.0 inches (483mm, 48.3cm) |
|
Maximum Depth |
17.76 inches (451mm, 45.1cm) |
|
Net Weight |
124.0 lbs. (56.36kg) |
|
Shipping Weight |
143.0 lbs. (65.0kg) |
|
Shipping Height |
251mm, 25.1cm |
|
Shipping Width |
594mm, 59.4cm |
|
Shipping Depth |
603mm, 60.3cm |
|
Color |
Beige |
Environmental:
|
Operating Temperature |
32 - 104 °F (0 - 40 °C)
|
|
Operating Relative Humidity |
0 - 95% |
|
Operating Elevation |
0 - 10000ft (0 - 3000meters) |
|
Storage Temperature |
-15 - 45°C |
|
Storage Relative Humidity |
0 - 95% |
|
Storage Elevation |
0 - 50000ft 0 - 15000meters |
|
Audible noise at 1 meter from surface of unit |
53.0dBA |
|
Online thermal dissipation |
305.0BTU/hr |
