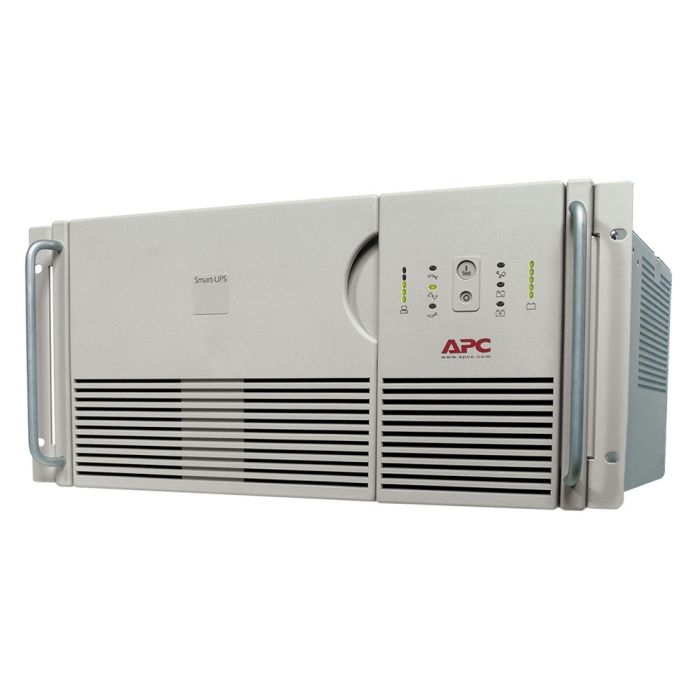

APC Smart-UPS XL 2200VA 1600W RM 5U 120V SU2200RMXLNET - Refurbished
APC Smart-UPS XL 2200VA 1600W RM 5U 120V
Model: SU2200RMXLNET
Input: NEMA L5-30P (120V - 30A)
Output: (8) NEMA 5-15R
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$699.99
Back Order
Manufacturer: APC
Model: APC Smart-UPS XL RM 5U, 30A, 120V
Condition: New batteries, refurbished UPS
Part Number: SU2200RMXLNET
Maximum output: 1600W / 2200VA
Typical backup time at half load: 34 minutes (800 Watts)
Typical backup time at full load: 9.4 minutes (1600 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 2200VA 1600W RM 5U 120V SU2200RMXLNET Manual
SU2200RMXLNET - APC Smart-UPS XL 2200VA Specifications:
Main:
|
Main Input Voltage |
120V |
||
|
Main Output Voltage |
120V |
||
|
Kw Rating |
1600W |
||
|
Rated Power in VA |
2200VA |
||
|
Input Connection Type |
|
||
|
Output Connection Type |
|
||
|
Number of Rack Unit |
5U |
||
|
Cable Length |
8 ft (2.44 m) |
||
|
Number of Cables |
1 |
||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
8.74 in (22.2 cm) |
|
Width |
19.02 in (48.3 cm) |
|
Depth |
17.76 in (45.1 cm) |
|
Net Weight |
124.25 lb(US) (56.36 kg) |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Efficiency at Full Load |
86 - 154V adjustable |
|
Input Frequency |
50/60 Hz +/- 3 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5:1 |
|
Harmonic Distortion |
Less than 5 % at Full Load |
|
Maximum Configurable Power in VA |
2200VA |
|
Max Configurable Power (Watts) |
1600W |
|
Transfer Time |
2ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine Wave |
|
Output Frequency |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
53 dBA
|
|
Heat Dissipation |
305 Btu/h |
|
Operating Altitude |
0 - 10000 ft |
|
Ambient Air Temperature for Operation |
32 - 104°F (0 - 40°C) |
|
Ambient Air Temperature for Storage |
5 - 113°F (-15 - 45°C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95% |
|
Storage Relative Humidity |
0 - 95% |
Batteries & Runtime:
|
Extendable Run Time |
1
|
|
Included Battery Modules |
0 |
|
Battery Slots Empty |
0 |
|
Typical Recharge Time |
3 h |
|
RBC Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC11 |
|
Battery Power in VAH |
816 VAh runtime |
|
Battery Charge Power (Watts) |
271 W rated |
|
Battery Option |
SU48RMXLBP 1 2448 VAh |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and On Line: On Battery: Replace Battery: and Overload Indicators
|
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery: distinctive low battery alarm: configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rating |
880 J
|
|
Filtering |
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: m |
