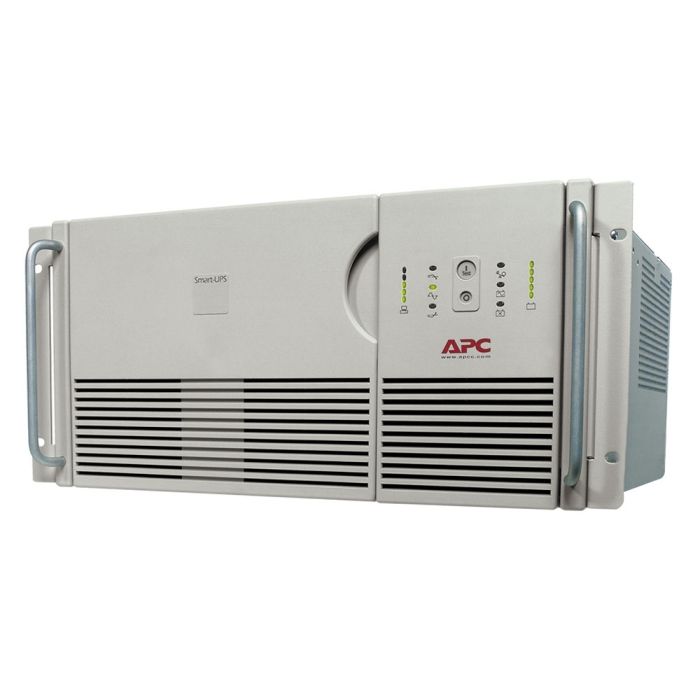

APC Smart-UPS XL 2200VA 1600W RM 5U 208V SU2200RMXLTNET - Refurbished
APC Smart-UPS XL 2200VA 1600W RM 5U
Model: SU2200RMXLTNET
Input: NEMA L6-20P (208V - 20A)
Output: (1) NEMA L6-20R (Battery Backup), (2) NEMA 5-15R (Battery Backup), (2) NEMA L6-30R (Battery Backup)
Line-Interactive UPS - Sinewave Output
New batteries, Refurbished UPS
1 Year Warranty Included
$699.99
In stock
Manufacturer: APC
Model: APC Smart-UPS XL 2200VA 1600W RM, 5U, 208V
Condition: New batteries, refurbished UPS
Part Number: SU2200RMXLTNET
Maximum output: 1600W / 2200VA
Typical backup time at half load: 34 minutes (800 Watts)
Typical backup time at full load: 9.44 minutes (1600 Watts)
Warranty: 1 year full replacement warranty
APC Smart-UPS XL 2200VA 1600W RM SU2200RMXLTNET Manual
SU2200RMXLTNET - APC Smart-UPS XL Specifications:
Main:
|
Main Input Voltage |
208V |
||||||
|
Main Output Voltage |
208V |
||||||
|
Rated Power in W |
1600W |
||||||
|
Rated Power in VA |
2200VA |
||||||
|
Input Connection Type |
|
||||||
|
Output Connection Type |
|
||||||
|
Number of Rack Unit |
5U |
||||||
|
Cable Length |
1.98 m |
||||||
|
Number of Cables |
1 |
||||||
|
Battery Type |
Lead-Acid Battery |
General:
|
Number of Power Module Filled Slots |
0 |
|
Number of Power Module Free Slots |
0 |
|
Redundant |
No |
Physical:
|
Color |
Beige |
|
Height |
22.2 cm |
|
Width |
48.3 cm |
|
Depth |
45.1 cm |
|
Net Weight |
60 kg |
|
Mounting Location |
Front |
|
Mounting Preference |
Lower |
|
Mounting Mode |
Rack-mounted with kit |
|
Two Post Mountable |
0 |
|
USB Compatible |
No |
Input:
|
Input Voltage Limits |
151 - 268 V adjustable |
|
Network Frequency |
50/60 Hz +/- 5 Hz auto-sensing |
Output:
|
Crest Factor |
Up to 5 : 1 |
|
Harmonic Distortion |
Less than 5 % at full load |
|
Maximum Configurable Power in VA |
2200VA |
|
Maximum Configurable Power in W |
1600W |
|
Transfer Time |
2 ms typical |
|
Topology |
Line Interactive |
|
Waveform Type |
Sine wave |
|
Output Frequency (sync to mains) |
47 - 53 Hz for 50 Hz nominal sync to mains |
Conformance:
|
Product Certifications |
CSA |
Environmental:
|
Acoustic Level |
53 dBA
|
|
Heat Dissipation |
305 Btu/h
|
|
Operating Altitude |
0 - 10000 ft
|
|
Ambient Air Temperature for Operation |
32 - 104 °F (0 - 40 °C) |
|
Ambient Air Temperature for Storage |
5 - 113 °F (-15 - 45 °C) |
|
Storage Altitude |
0 - 50000 ft (0.00 - 15240.00 m) |
|
Relative Humidity |
0 - 95 % |
|
Storage Relative Humidity |
0 - 95 % |
Batteries & Runtime:
|
Additional Information |
Also provides up to 400VA of 120V with (2) NEMA 5-15 receptacles |
|
Extended Runtime |
1 |
|
Number of Battery Filled Slots |
0 |
|
Number of Battery Free slots |
0 |
|
Battery Recharge Time |
3 h |
|
Number of Battery Replacement Quantity |
1 |
|
Battery Life |
3 - 5 year(s) |
|
Replacement Battery |
RBC11 |
|
Battery Power in VAH |
816 VAh runtime |
|
Battery Charger Power |
271 W rated |
|
Battery Option |
SU48RMXLBP 1 2448 VAh |
Communications & Management:
|
Control Panel |
LED status display with load and battery bar-graphs and on line : on battery : replace battery : overload and bypass indicators |
|
Emergency Power Off (EPO) |
Optional |
|
Free Slots |
1 |
|
Alarm |
Alarm when on battery : distinctive low battery alarm : configurable delays |
Surge Protection and Filtering:
|
Surge Energy Rate |
960 J
|
|
Noise Suppression |
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
|
