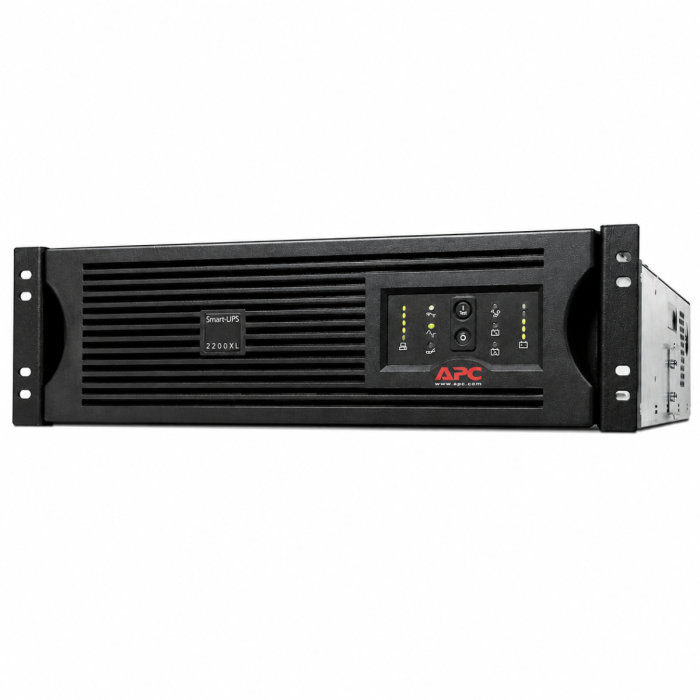

APC Smart-UPS XL 2200VA 1750W 120V 30A Output:(6)5-15R,(2)5-20R SU2200RMXL3U - Refurbished

APC Smart-UPS XL 2200VA 1750W RM 3U
Model: SU2200RMXL3U
Input: NEMA L5-30P (120V - 30A)
Output: (6) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sine Wave Output
Automatic Voltage Regulation (AVR)
Extended Runtime Capability

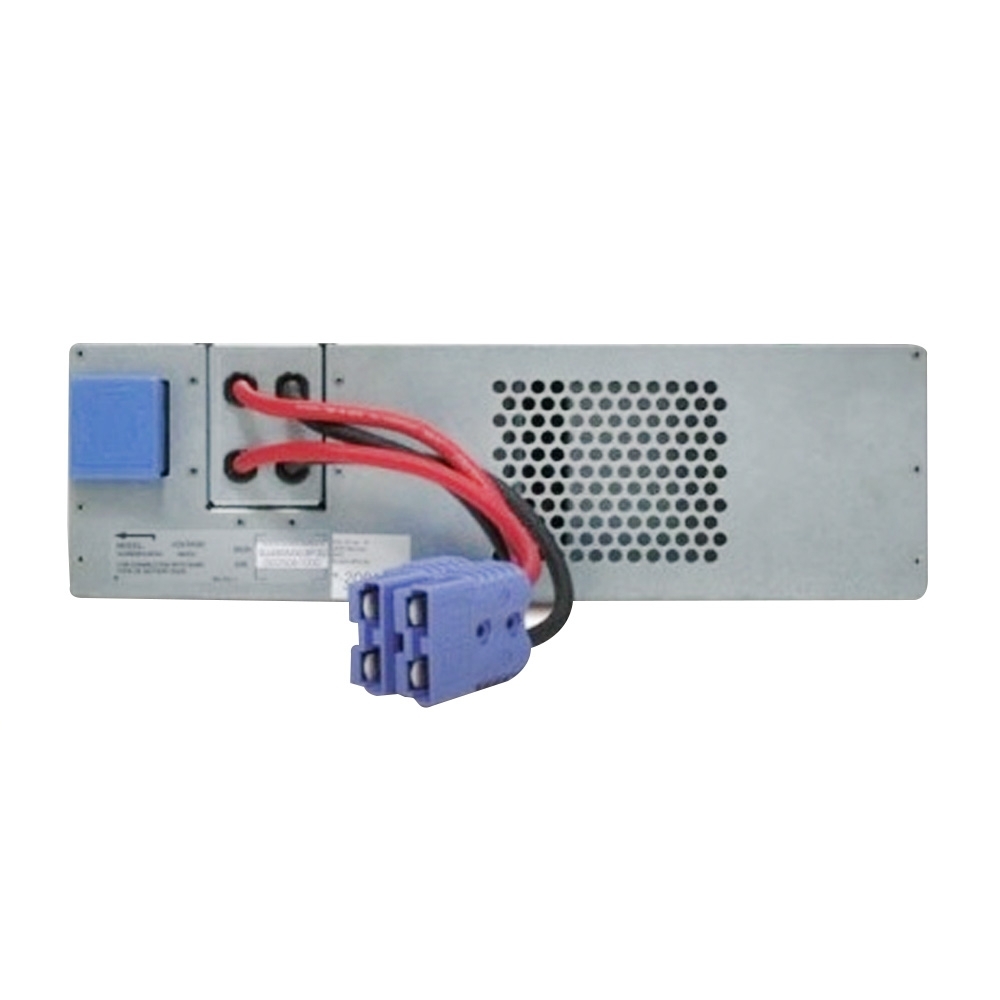

Compatible with SU48R3XLBP External Battery Pack
SmartSlot Network Management Support
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: APC
Model: APC Smart-UPS XL 2200VA 1750W, Rack Mount 3U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SU2200RMXL3U
Maximum Output: 1750W / 2200VA
Input: NEMA L5-30P, 120V
Output: (6) NEMA 5-15R, (2) NEMA 5-20R
Topology: Line-Interactive UPS with Automatic Voltage Regulation (AVR)
Output Waveform: Sine Wave
Form Factor: Rack Mount, 3U
Extended Runtime: Yes – Supports External Battery Packs
Compatible External Battery Pack: SU48R3XLBP
Replacement Battery: RBC27
Typical Backup Time at Half Load: 20.6 Minutes (800 Watts)
Typical Backup Time at Full Load: 6.1 Minutes (1600 Watts)
Warranty: 1 Year Full Replacement Warranty

Description: The APC SU2200RMXL3U is a 2200VA / 1750W Smart-UPS XL designed for servers, networking equipment, storage systems, and other critical IT applications. It features Line-Interactive technology, sine wave output, Automatic Voltage Regulation (AVR), SmartSlot management support, hot-swappable batteries, and expandable runtime with optional SU48R3XLBP external battery packs. New batteries, refurbished UPS with a 1 Year Full Replacement Warranty.








APC Smart-UPS XL 2200VA 1750W RM 3U SU2200RMXL3U - User Manual








SU2200RMXL3U - APC Smart-UPS XL Specifications:

Main
Manufacturer APC
Product Series APC Smart-UPS XL
Model / Part Number SU2200RMXL3U
Rated Power 2200VA / 1750W
Main Input Voltage 120V
Main Output Voltage 120V
Input Connection Type NEMA L5-30P
Output Connections (6) NEMA 5-15R, (2) NEMA 5-20R
Rack Height 3U
Form Factor Rack Mount
Cable Length 8 ft (2.44 m)
Number of Power Cords 1
Battery Type Lead-Acid Battery
Topology Line-Interactive
Output Waveform Sine Wave
Extended Runtime Yes

Input
Nominal Input Voltage 120V

Input Connection Type

NEMA L5-30P

Input Frequency 50/60 Hz ± 3 Hz Auto-Sensing
Input Voltage Range 92–147V
Adjustable Input Voltage Range 86–154V
Input Phase Single Phase
Automatic Voltage Regulation (AVR) Yes
AVR Boost Yes
AVR Trim Yes
Input Cord Length 8 ft (2.44 m)
Number of Input Cords 1

Output
Output Capacity 2200VA
Output Power 1750W
Nominal Output Voltage 120V

Output Connection Type

(6) NEMA 5-15R


(2) NEMA 5-20R


Output Frequency – 50Hz 47–53 Hz, Synchronized to Mains
Output Frequency – 60Hz 57–63 Hz, Synchronized to Mains
Output Waveform Sine Wave
Topology Line-Interactive
Harmonic Distortion Less than 5% at Full Load
Crest Factor Up to 5:1
Maximum Configurable Power 2200VA / 1750W
Automatic Voltage Regulation Yes

Batteries & Runtime
Battery Type Lead-Acid Battery
Replacement Battery RBC27
RBC Quantity 1
Battery Life 3–5 Years
Typical Recharge Time 3 Hours
Battery Power 864 VAh Runtime
Battery Charge Power 287W Rated
Extendable Runtime Yes
Compatible External Battery Pack SU48R3XLBP
Typical Backup Time at Half Load 20.6 Minutes (800 Watts)
Typical Backup Time at Full Load 6.1 Minutes (1600 Watts)
Battery Replacement Hot-Swappable
Battery Self-Test Automatic
Battery Status Monitoring Yes

Battery option

SU48R3XLBP 1 2016 VAh
SU48R3XLBP 2 3360 VAh
SU48R3XLBP 3 4704 VAh
SU48R3XLBP 4 6048 VAh
SU48R3XLBP 6 8736 VAh
SU48R3XLBP 8 11424 VAh
SU48R3XLBP 10 14112 VAh


Communications & Management
Control Panel LED Status Display with Load and Battery Bar Graphs
Status Indicators On Line, On Battery, Replace Battery and Overload
Load Monitoring LED Load Bar Graph
Battery Charge Monitoring LED Battery Bar Graph
Audible Alarms On Battery, Low Battery, Overload and UPS Fault
Low Battery Alarm Distinctive Low Battery Alarm
Alarm Delays Configurable
SmartSlot Yes
Available SmartSlot (1)
Optional Network Management Supported via SmartSlot
Network Management Card Support Yes
Remote UPS Monitoring Supported with Compatible SmartSlot Network Card
Serial Communication Yes
USB Compatible No
Emergency Power Off (EPO) Optional
Power Management Software APC PowerChute
UPS Status Monitoring Supported
Battery Status Monitoring Supported
Load Monitoring Supported
Remote Shutdown Supported with Compatible Management Interface

Physical
Color Black
Height 5.24 in (133 mm / 13.3 cm)
Width 19.02 in (483 mm / 48.3 cm)
Depth 25.98 in (660 mm / 66.0 cm)
Net Weight 124.25 lbs (56.36 kg)
Rack Height 3U
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-Mounted
USB Compatible No

Environmental
Operating Temperature 32–104°F (0–40°C)
Storage Temperature 5–113°F (-15–45°C)
Operating Altitude 0–10,000 ft
Storage Altitude 0–50,000 ft (0–15,240 m)
Relative Humidity 0–95%
Storage Relative Humidity 0–95%
Acoustic Level 53 dBA
Heat Dissipation 375 Btu/h

Surge Protection & Filtering
Surge Energy Rating 880 J
Filtering Full-Time Multi-Pole Noise Filtering
IEEE Surge Let-Through 0.3%
Clamping Response Time Zero
Surge Standard Meets UL 1449

Conformance
Product Certification CSA

Condition & Warranty
Condition New Batteries, Refurbished UPS
Warranty 1 Year Full Replacement Warranty
