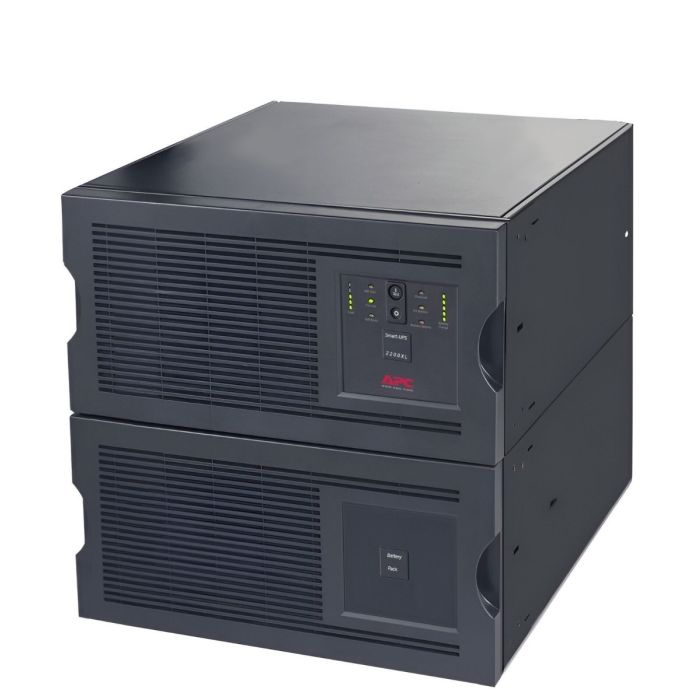

APC Smart-UPS XL 2200VA 1850W + Ext. Battery Pack RM 10U SUA2200XL-48XLBP - Refurbished
APC Smart-UPS XL 2200VA 1850W RM 5U + External Battery Pack
Model: SUA2200XL-48XLBP
Input: NEMA L5-30P (120V - 20A)
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sine Wave Output
Includes (1) SUA48XLBP External Battery Pack
Extended Runtime Battery System
SmartSlot Network Management Support
New Batteries, Refurbished UPS & External Battery Pack
1 Year Full Replacement Warranty Included
$1,249.99
In stock
Manufacturer: APC
Model: APC Smart-UPS XL 2200VA 1850W + External Battery Pack, RM, 5U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SUA2200XL-48XLBP
Maximum Output: 1850W / 2200VA
Typical Backup Time at Half Load: ~117 Minutes (925 Watts)
Typical Backup Time at Full Load: 50 Minutes (1850 Watts)
External Battery Pack: (1) SUA48XLBP Included
Warranty: 1 Year Full Replacement Warranty
Description: The APC SUA2200XL-48XLBP combines a 2200VA / 1850W Smart-UPS XL with one SUA48XLBP External Battery Pack for extended runtime. It features 120V sine wave output, Line-Interactive technology, AVR, SmartSlot network management support, USB/Serial communications, and EPO. With the external battery pack, runtime is approximately 117 minutes at half load and 50 minutes at full load. New batteries, refurbished system with a 1 Year Full Replacement Warranty
Â
Â
APC Smart-UPS XL 3000VA 2700W SUA2200XL-48XLBPÂ 30A 120V - User Manual
Â
SUA2200XL-48XLBP-Â APC Smart-UPS XL Specifications:
| General | Â | ||||
| Manufacturer | APC | ||||
| Model / Configuration | SUA2200XL + (1) SUA48XLBP | ||||
| UPS Model | SUA2200XL | ||||
| External Battery Pack | SUA48XLBP | ||||
| Product Series | APC Smart-UPS XL | ||||
| Product Type | Extended Runtime UPS System | ||||
| Rated Power | 2200VA / 1850W | ||||
| Topology | Line-Interactive | ||||
| Output Waveform | Sine Wave | ||||
| Nominal Voltage | 120V | ||||
| Form Factor | Tower / Rackmount | ||||
| Rack Height | 5U | ||||
| Product Web Sub-Family | Extended Run | ||||
| Redundant | No | ||||
| Condition | New Batteries, Refurbished UPS | ||||
| Warranty | 1 Year Full Replacement Warranty | ||||
| Â | Â | ||||
| Input | Â | ||||
| Nominal Input Voltage | 120V | ||||
|
Input Connection Type |
|
||||
| Input Cord Length | 8 ft (2.44 m) | ||||
| Number of Power Cords | 1 | ||||
| Input Frequency | 50/60 Hz ±3 Hz Auto-Sensing | ||||
| Input Voltage Range | 82–144V | ||||
| Adjustable Input Voltage Range | 75–154V | ||||
| Input Phase | Single Phase | ||||
| Â | Â | ||||
| Output | Â | ||||
| Nominal Output Voltage | 120V | ||||
| Rated Output Power | 1850W | ||||
| Rated Output Capacity | 2200VA | ||||
| Maximum Configurable Power | 1850W / 2200VA | ||||
|
Output Connection Type |
|
||||
| Total Output Receptacles | 11 | ||||
| Output Waveform | Sine Wave | ||||
| Topology | Line-Interactive | ||||
| Transfer Time | 2 ms Typical | ||||
| Harmonic Distortion | Less Than 5% at Full Load | ||||
| Efficiency | 96% at Full Load | ||||
| Output Frequency – 50Hz | 47–53 Hz, Synchronized to Mains | ||||
| Output Frequency – 60Hz | 57–63 Hz, Synchronized to Mains | ||||
| Â | Â | ||||
| Batteries & Extended Runtime | Â | ||||
| Battery Type | Maintenance-Free Sealed Lead-Acid | ||||
| Internal UPS Battery Capacity | 816 VAh | ||||
| External Battery Pack Included | (1) SUA48XLBP | ||||
| External Battery Pack Voltage | 48V | ||||
| Total Battery Capacity with (1) SUA48XLBP | 2448 VAh | ||||
| Extended Runtime | Yes | ||||
| Internal Replacement Battery | RBC55 | ||||
| External Battery Pack Replacement Battery | RBC55 | ||||
| Battery Replacement | User Replaceable | ||||
| Hot-Swappable Batteries | Yes | ||||
| Typical Recharge Time – Internal Battery | 3 Hours | ||||
| Battery Life | 3–5 Years | ||||
| Battery Charge Power | 271W Rated | ||||
| Â | Â | ||||
| Estimated Runtime – SUA2200XL + (1) SUA48XLBP |  | ||||
| Half Load | Approx. 117 Minutes @ 925W | ||||
| Full Load | 50 Minutes @ 1850W | ||||
| Runtime Note | Runtime varies with battery age, condition, temperature and connected load | ||||
| Â | Â | ||||
| External Battery Configurations | Â | ||||
| Internal Batteries Only | 816 VAh | ||||
| SUA48XLBP × 1 | 2448 VAh Total | ||||
| SUA48XLBP × 2 | 4080 VAh Total | ||||
| SUA48XLBP × 3 | 5712 VAh Total | ||||
| SUA48XLBP × 8 | 13872 VAh Total | ||||
| SUA48XLBP × 10 | 17136 VAh Total | ||||
| UXABP48 × 1 | 4176 VAh Total | ||||
| UXABP48 × 2 | 7536 VAh Total | ||||
| UXABP48 × 3 | 10896 VAh Total | ||||
| Â | Â | ||||
| Communications & Management | Â | ||||
| SmartSlot | Yes | ||||
| Available SmartSlot | (1) | ||||
| Optional Network Management | Supported via SmartSlot | ||||
| Compatible Network Cards | APC AP9630, AP9631; AP9640 / AP9641 on supported SUA units/firmware | ||||
| Network Management Card 2 | AP9630 / AP9631 | ||||
| Network Management Card 3 | AP9640 / AP9641 – Firmware/Revision Dependent | ||||
| Legacy Network Management Cards | AP9617 / AP9618 / AP9619 may be used on compatible legacy SmartSlot systems | ||||
| Ethernet Network Management | Supported with Optional NMC | ||||
| Web-Based Management | Supported with Optional NMC | ||||
| SNMP Monitoring | Supported with Optional NMC | ||||
| Remote UPS Monitoring | Supported | ||||
| Remote UPS Management | Supported | ||||
| Remote Shutdown | Supported | ||||
| UPS Status Monitoring | Supported | ||||
| Input / Output Status Monitoring | Supported | ||||
| Battery Status Monitoring | Supported | ||||
| Battery Runtime Monitoring | Supported | ||||
| Load Monitoring | Supported | ||||
| Event / Alarm Monitoring | Supported | ||||
| Configurable Shutdown | Supported | ||||
| Configurable Restart | Supported | ||||
| UPS Identification | User Configurable | ||||
| Serial Communication | Yes | ||||
| Serial Port | Yes | ||||
| USB Port | Yes | ||||
| Simultaneous Serial & USB Use | No | ||||
| Emergency Power Off (EPO) | Yes | ||||
| EPO Type | Remote Contact Closure | ||||
| Power Management Software | APC PowerChute Business Edition | ||||
| Network Shutdown Software | PowerChute Network Shutdown with Compatible NMC | ||||
| Automatic OS Shutdown | Supported | ||||
| Unattended Shutdown | Supported | ||||
| Audible Alarm Management | Configurable | ||||
| Low Battery Warning | Configurable | ||||
| Shutdown Delay | Configurable | ||||
| Restart Delay | Configurable | ||||
| Automatic Self-Test Configuration | Supported | ||||
| Battery Replacement Date | Configurable | ||||
| UPS ID / Location | Configurable | ||||
| Voltage Sensitivity | Configurable | ||||
| Network Management Expansion | Through SmartSlot | ||||
| Â | Â | ||||
| User Interface & Controls | Â | ||||
| Control Panel | LED Status Display | ||||
| Load Level Display | LED Bar Graph | ||||
| Battery Capacity Display | LED Bar Graph | ||||
| On Line Indicator | Yes | ||||
| On Battery Indicator | Yes | ||||
| Replace Battery Indicator | Yes | ||||
| Overload Indicator | Yes | ||||
| Audible Alarm | Yes | ||||
| On-Battery Alarm | Yes | ||||
| Low-Battery Alarm | Yes | ||||
| Configurable Alarm Delays | Yes | ||||
| Â | Â | ||||
| Surge Protection & Filtering | Â | ||||
| Surge Energy Rating | 480 Joules | ||||
| Noise Filtering | Full-Time Multi-Pole Noise Filtering | ||||
| IEEE Surge Let-Through | 0.3% | ||||
| Clamping Response Time | Zero | ||||
| UL 1449 | Meets UL 1449 | ||||
| Â | Â | ||||
| Physical | Â | ||||
| Color | Black | ||||
| Mounting Mode | Rack-Mounted with Kit / Tower | ||||
| Rack Height | 5U | ||||
| Height | 17.48 in (44.4 cm) | ||||
| Width | 8.70 in (22.1 cm) | ||||
| Depth | 19.49 in (49.5 cm) | ||||
| Net Weight – System | 140.3 lb (63.64 kg) | ||||
| Mounting Location | Front | ||||
| Mounting Preference | No Preference | ||||
| Â | Â | ||||
| Environmental | Â | ||||
| Operating Temperature | 32–104°F (0–40°C) | ||||
| Storage Temperature | 5–113°F (-15–45°C) | ||||
| Operating Relative Humidity | 0–95% | ||||
| Storage Relative Humidity | 0–95% | ||||
| Operating Altitude | 0–10,000 ft (0–3048 m) | ||||
| Storage Altitude | 0–50,000 ft (0–15,240 m) | ||||
| Acoustic Level | 53 dBA | ||||
| Heat Dissipation | 305 BTU/hr | ||||
| Conformance | Â | ||||
| Product Certification | CSA | ||||
| Â | Â | ||||
| Condition & Warranty | Â | ||||
| UPS Condition | Refurbished | ||||
| Battery Condition | New Batteries | ||||
| External Battery Pack | Included – SUA48XLBP | ||||
| Warranty | 1 Year Full Replacement Warranty |
