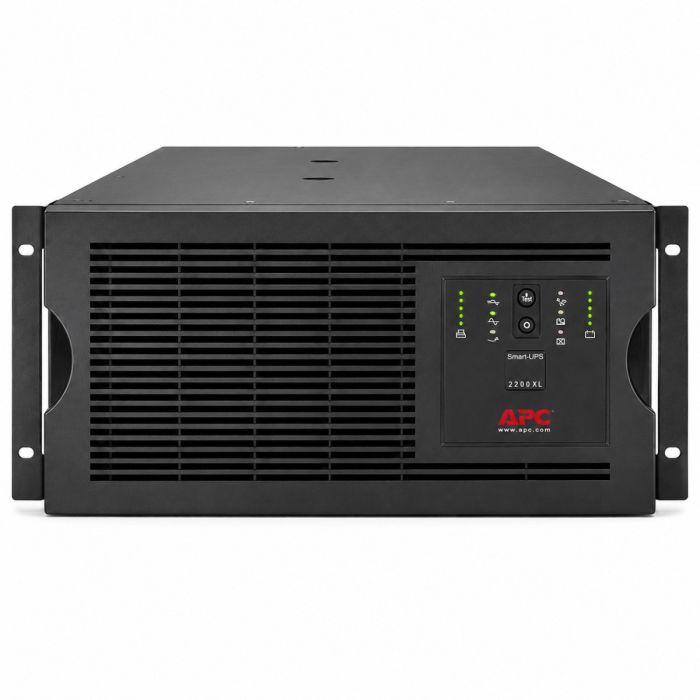

APC Smart-UPS XL 2200VA 1850W RM 5U 120V Output:(9)5-15R,(2)5-20R, SUA2200XL - Refurbished
APC Smart-UPS XL 2200VA 1850W RM 5U
Model: SUA2200XL
Input: NEMA 5-20P (120V - 20A)
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Line-Interactive UPS - Sine Wave Output
Automatic Voltage Regulation (AVR)
Extended Runtime Capability
SmartSlot Network Management Support
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included
$749.99
In stock
Manufacturer: APC
Model: APC Smart-UPS XL 2200VA 1850W RM, 5U, 120V
Condition: New Batteries, Refurbished UPS
Part Number: SUA2200XL
Maximum Output: 1850W / 2200VA
Input: NEMA 5-20P, 120V, 20A
Output: (9) NEMA 5-15R, (2) NEMA 5-20R
Topology: Line-Interactive UPS with Automatic Voltage Regulation (AVR)
Output Waveform: Sine Wave
Form Factor: Rackmount / Tower Convertible, 5U
Typical Backup Time at Half Load: 28.5 Minutes (925 Watts)
Typical Backup Time at Full Load: 10.4 Minutes (1850 Watts)
Extended Runtime: Yes – Supports External Battery Packs
Maximum External Battery Packs: Up to (10)
Typical Recharge Time: 3 Hours
Warranty: 1 Year Full Replacement Warranty
Description: The APC SUA2200XL is a 2200VA / 1850W Smart-UPS XL designed for servers, networking equipment, storage systems, and other critical IT applications. It features Line-Interactive technology, sine wave output, Automatic Voltage Regulation (AVR), hot-swappable batteries, SmartSlot network management support, and expandable runtime with optional SUA48XLBP external battery packs. New batteries, refurbished UPS with a 1 Year Full Replacement Warranty.
Â
Â
APC Smart-UPS XL 2200VA 1980W RM 5U SUA2200XL - User Manual
Â
Â
SUA2200XL - APC Smart-UPS XL Specifications:
| Main | Â | ||||
| Main Input Voltage | 120V | ||||
| Main Output Voltage | 120V | ||||
| rated power in W | 1850W | ||||
| Rated Power in VA | 2200VA | ||||
| Input Connection Type | NEMA 5-20P | ||||
| Output Connection Type | (9) NEMA 5-15R, 2) NEMA 5-20R | ||||
| Number of Rack Unit | 5U | ||||
| Cable Length | 8 ft (2.44 m) | ||||
| Number of Cables | 1 | ||||
| Battery Type | Lead-Acid Battery | ||||
| Â | Â | ||||
| General | Â | ||||
| Number of Power Module Free Slots | 0 | ||||
| Number of power module filled slots | 0 | ||||
| Product Web Sub-family | Extended Run | ||||
| Redundant | No | ||||
| Â | Â | ||||
| Physical | Â | ||||
| Color | Black | ||||
| Height | 17.48 in (44.4 cm) | ||||
| Width | 8.70 in (22.1 cm) | ||||
| Depth | 19.49 in (49.5 cm) | ||||
| Net Weight | 137.28 lb(US) (62.27 kg) | ||||
| Mounting Location | Front | ||||
| Mounting Preference | No preference | ||||
| Mounting Mode | Rack-mounted with kit | ||||
| Two post mountable | 0 | ||||
| USB Compatible | No | ||||
| Â | Â | ||||
| Input | Â | ||||
| Nominal Input Voltage | 120V | ||||
|
Input Connection Type |
|
||||
| Input Cord Length | 8 ft (2.44 m) | ||||
| Number of Power Cords | 1 | ||||
| Input Phase | Single Phase | ||||
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing | ||||
| Input Voltage Range | 82 - 144V | ||||
| Adjustable Input Voltage Range | 75 - 154V | ||||
| Input Frequency Range – 50 Hz | 47 - 53 Hz | ||||
| Input Frequency Range – 60 Hz | 57 - 63 Hz | ||||
| Input Voltage Adjustable for Main Operations | 100V, 110V, 120V, 127V | ||||
| Automatic Voltage Regulation (AVR) | Yes | ||||
| AVR Boost | Yes | ||||
| AVR Trim | Yes | ||||
| Cold Start Capability | Yes | ||||
| Generator Compatible | Yes | ||||
| Input Voltage Monitoring | Yes | ||||
| Input Frequency Monitoring | Yes | ||||
| Input Circuit Breaker Protection | Yes | ||||
| Transfer Voltage – Low | Configurable | ||||
| Transfer Voltage – High | Configurable | ||||
| Voltage Sensitivity | High / Medium / Low | ||||
| Frequency Auto-Sensing | Yes | ||||
| Input Power Source Monitoring | Yes | ||||
| Â | Â | ||||
| Output | Â | ||||
| Nominal Output Voltage | 120V | ||||
| Rated Output Power | 1850W | ||||
| Rated Output Capacity | 2200VA | ||||
| Maximum Configurable Power in VA | 2200VA | ||||
| Max Configurable Power (Watts) | 1980W | ||||
|
Output Connection Type |
|
||||
| Total Output Receptacles | 11 | ||||
| Output Waveform | Sine Wave | ||||
| Topology | Line Interactive | ||||
| Automatic Voltage Regulation (AVR) | Yes | ||||
| AVR Boost | Yes | ||||
| AVR Trim | Yes | ||||
| Transfer Time | 2 ms Typical | ||||
| Harmonic Distortion | Less Than 5% at Full Load | ||||
| Efficiency at Full Load | 95% | ||||
| Output Frequency | 50/60 Hz | ||||
| Output Frequency – 50 Hz | 47 - 53 Hz Sync to Mains | ||||
| Output Frequency – 60 Hz | 57 - 63 Hz Sync to Mains | ||||
| Output Frequency – Battery Mode | 50/60 Hz ±0.1 Hz | ||||
| Output Voltage Regulation – Battery Mode | ±5% | ||||
| Output Voltage Distortion | Less Than 5% | ||||
| Overload Protection | Yes | ||||
| Short Circuit Protection | Yes | ||||
| Battery Backup Outlets | All Output Receptacles | ||||
| Cold Start Output | Supported | ||||
| Output Power Monitoring | Supported | ||||
| Load Monitoring | Yes – 5-LED Load Bar Graph | ||||
| Output Voltage Monitoring | Yes | ||||
| Output Frequency Monitoring | Yes | ||||
| Output Control | Supported through UPS / Management Interface | ||||
| Â | Â | ||||
| Conformance | Â | ||||
| Product Certifications | CSA | ||||
| Â | Â | ||||
| Environmental | Â | ||||
| Acoustic Level | 53 dBA | ||||
| Heat Dissipation | 305 Btu/h | ||||
| Operating Altitude | 0 - 10000 ft | ||||
| Ambient Air Temperature for Operation | 32 - 104 °F (0 - 40 °C) | ||||
| Ambient Air Temperature for Storage | 5 - 113 °F (-15 - 45 °C) | ||||
| Storage Altitude | 0 - 50000 ft (0.00 - 15240.00 m) | ||||
| Relative Humidity | 0 - 95 % | ||||
| Storage Relative Humidity | 0 - 95 % | ||||
| Â | Â | ||||
| Batteries & Runtime | Â | ||||
| Extendable Run Time | 1 | ||||
| Included Battery Modules | 0 | ||||
| Battery Slots Empty | 0 | ||||
| Typical Recharge Time | 3 h | ||||
| RBC Quantity | 1 | ||||
| Battery Life | 3 - 5 year(s) | ||||
| Replacement Battery | RBC55 | ||||
| Battery power in VAH | 816VAh runtime | ||||
| Battery Charge Power (Watts) | 271W rated | ||||
| Battery Option | SUA48XLBP 1 2448 VAhSUA48XLBP 2 4080 VAhSUA48XLBP 3 5712 VAhUXABP48 1 4176 VAhUXABP48 2 7536 VAhUXABP48 3 10896 VAhSUA48XLBP 8 13872 VAhSUA48XLBP 10 17136 VAh | ||||
| Maximum External Battery Packs | Up to (10) External Battery Packs | ||||
| Battery Replacement | Hot-Swappable | ||||
| Battery Management | Automatic Battery Self-Test and Battery Status Monitoring | ||||
| Â | Â | ||||
| Communications & Management | Â | ||||
| Control Panel | LED Status Display with Load and Battery Bar Graphs | ||||
| Status Indicators | On Line, AVR Trim, AVR Boost, On Battery, Overload, Replace Battery / Battery Disconnected | ||||
| Load Monitoring | 5-LED Load Bar Graph | ||||
| Battery Charge Monitoring | 5-LED Battery Charge Bar Graph | ||||
| Utility Voltage Diagnostic | Yes – Front Panel LED Voltage Diagnostic | ||||
| Audible Alarms | On Battery, Low Battery, Overload and UPS Fault Conditions | ||||
| Alarm Configuration | Enable, Mute or Disable | ||||
| Low Battery Warning | Configurable – Approx. 2, 5 or 8 Minutes | ||||
| Automatic Self-Test | Yes | ||||
| Self-Test Interval | Configurable – Startup / Every 7 Days / Every 14 Days / Startup Only / Disabled | ||||
| SmartSlot | Yes – (1) Accessory SmartSlot | ||||
| Available SmartSlot | (1) | ||||
| Optional Network Management | Supported via SmartSlot Network Management Card | ||||
| SmartSlot | Yes – (1) SmartSlot | ||||
| Network Management Card Support | Yes | ||||
| Compatible NMC1 Cards | AP9617, AP9618, AP9619 | ||||
| Compatible NMC2 Cards | AP9630, AP9631 | ||||
| Compatible NMC3 Cards | AP9640, AP9641, AP9643 | ||||
| Recommended Current Generation | AP9640 / AP9641 | ||||
| Legacy Network Cards | AP9606 Web/SNMP Card | ||||
| Other SmartSlot Accessories | AP9607 Interface Expander, AP9610/AP9613 Dry Contact I/O, AP9622 Modbus/JBUS, AP9612TH Environmental Monitoring | ||||
| Remote Network Management | Web/SNMP management when compatible Network Management Card is installed | ||||
| PowerChute Support | Yes | ||||
| Serial Communication | Yes | ||||
| Serial Interface | Proprietary APC Serial Port | ||||
| USB Communication | Yes | ||||
| USB and Serial Simultaneous Use | No – Only One Interface Can Be Used at a Time | ||||
| Emergency Power Off (EPO) | Yes | ||||
| EPO Type | Remote Normally-Open Contact Closure | ||||
| EPO External Voltage Required | No | ||||
| Remote UPS Monitoring | Supported through PowerChute or Optional SmartSlot Network Card | ||||
| Remote UPS Shutdown | Supported | ||||
| Remote Restart | Supported through Management Software / Compatible SmartSlot Accessory | ||||
| UPS ID Configuration | Yes – Up to 8 Alphanumeric Characters | ||||
| Battery Replacement Date | Configurable | ||||
| Battery Status Monitoring | Yes | ||||
| Load Status Monitoring | Yes | ||||
| Input Voltage Monitoring | Yes | ||||
| Power Event Monitoring | Yes | ||||
| Configurable Shutdown Delay | Yes – 0 to 630 Seconds | ||||
| Configurable Turn-On Delay | Yes – 0 to 420 Seconds | ||||
| Minimum Battery Capacity Before Restart | Configurable – 0%, 15%, 30%, 45%, 60%, 75% or 90% | ||||
| Voltage Sensitivity | High / Medium / Low | ||||
| High Transfer Voltage | Configurable | ||||
| Low Transfer Voltage | Configurable | ||||
| Power Management Software | APC PowerChute | ||||
| Network Management Software | Supported with Compatible SmartSlot Network Management Card | ||||
| Â | Â | ||||
| Surge Protection and Filtering | Â | ||||
| Surge Energy Rating | 480 J | ||||
| Filtering | Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : m |
