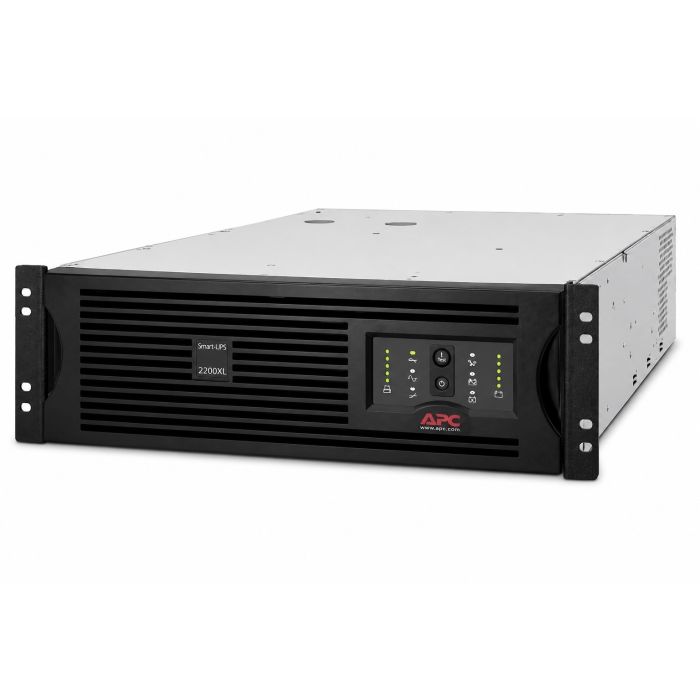

APC SUA2200RMXL3U Smart-UPS XL 2200VA 1980W + SUA029RM Output Panel - Refurbished

APC Smart-UPS XL 2200VA 1980W RM 3U 120V 20A with SUA029RM Output Panel
Model: SUA2200RMXL3U
Input: NEMA 5-20P (120V - 20A)
Output: (4) NEMA 5-15R, (2) NEMA 5-20R, (1) NEMA L5-20R
Line-Interactive UPS - Sinewave Output
New Batteries, Refurbished UPS
1 Year Full Replacement Warranty Included

In stock

Manufacturer: APC
Model: APC SMART-UPS XL 2200VA 1980W RM 3U, 20A, 120V +  SUA029RM Output Panel
Condition: New batteries, refurbished UPS
Part Number: SUA2200RMXL3U
Maximum output: 1980W / 2200VA
Typical backup time at half load: 24 minutes (990 Watts)
Typical backup time at full load: 9 minutes (1980 Watts)
Warranty: 1 year full replacement warranty

Description: The APC Smart-UPS XL 2200VA Rackmount (SUA2200RMXL3U) is a high-performance line-interactive UPS designed to provide reliable power protection for servers, networking equipment, storage systems, and other critical IT infrastructure. Delivering 2200VA / 1980W of pure sine wave output at 120V, this 3U rackmount UPS features Automatic Voltage Regulation (AVR), fast transfer times, and extended runtime capability through compatible external battery packs. Equipped with a SUA029RM output panel providing (4) NEMA 5-15R, (2) NEMA 5-20R, and (1) NEMA L5-20R receptacles, along with USB connectivity, SmartSlot expansion support, and intelligent battery management, it offers dependable backup power, flexible output options, and advanced monitoring for enterprise and data center environments. Refurbished with new batteries and backed by a 1 Year Full Replacement Warranty.






APC SMART-UPS XL 2200VA 1980W LCD RM 3U SUA2200RMXL3U - User Manual





SUA2200RMXL3U - APC SMART-UPS XL 2200VA Specifications (SUA029RM Output Panel) :



Key Features
Main Input Voltage 120V
Main Output Voltage 120V
Rated Power in W 1980W
Rated Power in VA 2200VA
Input Connection Type NEMA 5-20P
Output Connection Type (4) NEMA 5-15R
  (2) NEMA 5-20R
  (1) NEMA L5-20R
Rack Height 3U
Cable Length 8 ft (2.44 m)
Number of Cables 1
Battery Type Lead-Acid Battery
Topology Line Interactive
Waveform Type Sine Wave
Extended Runtime Support Yes
Product Family Extended Runtime Smart-UPS XL

Output
Maximum Configurable Power 1980W / 2200VA
Harmonic Distortion Less than 5% at Full Load
Transfer Time 2-4 ms
Output Frequency 47–53 Hz (50 Hz nominal), 57–63 Hz (60 Hz nominal)
Surge Protection Yes
Output Receptacles (4) NEMA 5-15R
  (2) NEMA 5-20R
  (1) NEMA L5-20R
Power Conditioning Full-Time Multi-Pole Noise Filtering
Voltage Regulation Automatic Voltage Regulation (AVR)
Efficiency at Full Load High-Efficiency Line Interactive Operation

Input
Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz Auto-Sensing
Input Voltage Range 75–154V Adjustable / 82–147V
Number of Power Cords 1
Input Plug Type NEMA 5-20P
Input Connection Type Single-Phase
Input Current Capacity 20A
Cable Length 8 ft (2.44 m)

Batteries & Runtime
Extendable Runtime Yes
Typical Recharge Time 3 Hours
Battery Life 3–5 Years
Replacement Battery APCRBC105
RBC Quantity 1
Battery Power 864 VAh Runtime
Battery Charge Power 287W
Hot-Swappable Batteries Yes
External Battery Pack Support SUA48RMXLBP3U
Runtime Expansion Options Up to 10 External Battery Packs Supported

Communications & Management
Control Panel LED Status Display with Load and Battery Bar-Graphs
LED Indicators On Line, On Battery, Replace Battery, Overload
Emergency Power Off (EPO) Optional
Free SmartSlot Slots 1
Alarm Configurable Low Battery and Overload Alarms
Remote Management Support Optional via APC Management Cards
User Interface Front-Panel LED Diagnostics
SmartSlot Expansion Supported
USB Port Yes
Serial Port Yes

Compatible SmartSlot Cards & Accessories - Optional
APC AP9630 Network Management Card 2 Remote UPS Monitoring via Web/SNMP
APC AP9631 Network Management Card 2 Remote Monitoring + Environmental Sensor Support
APC AP9640 Network Management Card 3 Modern Secure Remote Management
APC AP9641 Network Management Card 3 Remote Management + Sensor Support
APC AP9617 Legacy SNMP/Web Management Card
APC AP9618 Environmental Monitoring Card
APC AP9619 SNMP Management Card with Environmental Support
APC AP9606 UPS Interface Expander
APC AP9620 Legacy Web/SNMP Management Accessory
APC Environmental Monitoring Sensors Temperature & Humidity Monitoring

Physical
Color Black
Height 5.24 in (13.3 cm)
Width 19.02 in (48.3 cm)
Depth 25.98 in (66 cm)
Net Weight 131.29 lbs (59.55 kg)
Mounting Mode Rack-Mounted
Mounting Preference Lower
USB Compatible Yes

Environmental
Operating Temperature 32–104°F (0–40°C)
Storage Temperature 5–113°F (-15–45°C)
Operating Relative Humidity 0–95%
Storage Relative Humidity 0–95%
Operating Elevation 0–10,000 ft
Storage Elevation 0–50,000 ft
Acoustic Level 53 dBA
Heat Dissipation 375 BTU/hr

Conformance
Product Certifications CSA

Surge Protection & Filtering
Surge Energy Rating 880 Joules
Filtering Full-Time Multi-Pole Noise Filtering, 0.3% IEEE Surge Let-Through, Zero Clamping Response Time
